Ariens HYDROSTATIC S-12 - Electrical Wiring Diagram

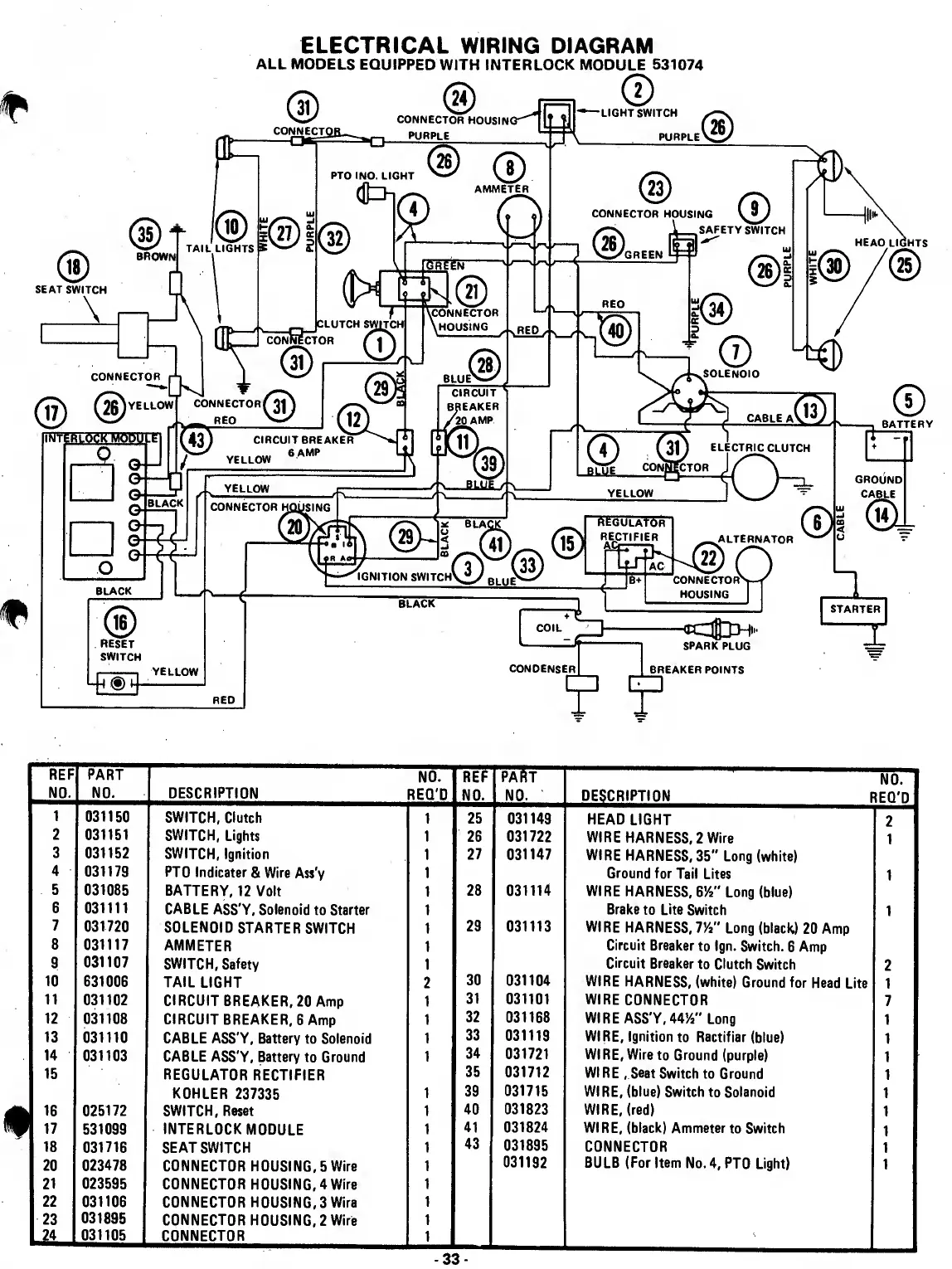

ELECTRICAL WIRING DIAGRAM
ALL MODELS EQUIPPED WITH INTERLOCK MODULE 531074
REF
NO.
PART
NO.
DESCRIPTION
NO.
REQ'D
REI^
NO.
PART
NO.
NO. 1
DESCRIPTION REQ'D 1
1
031150
SWITCH, Clutch
1 25
031149
HEAD LIGHT
2
2
031151 SWITCH, Lights
1 26
031722
WIREHARNESS,2Wire
1
3
031152
SWITCH, Ignition
1
27
031147
WIREHARNESS, 35" Long (white)
4
031179
PTO Indicater 8i Wire Ass'y
1
Ground for Tail Lites
1
5
031085
BATTERY, 12 Volt
1
28 031114
WIREHARNESS, B%" Long (blue)
6
031111
CABLE ASS'Y, Solenoid to Starter
1
Brake to Lite Switch
1
7
031720
SOLENOID STARTER SWITCH 1
29
031113
WIRE HARNESS, 7y2" Long (blacL) 20 Amp
8
031117
AMMETER
1
Circuit Breaker to Ign. Switch. 6 Amp
9
031107
SWITCH, Safety
1
Circuit Breaker to Clutch Switch
2
10
631006
TAIL LIGHT
2
30
031104
WIRE HARNESS, (white) Ground for Head Lite
1
11
031102
CIRCUIT BREAKER, 20 Amp
1
31
031101
WIRECONNECTOR
7
12
031108
CIRCUIT BREAKER, 6 Amp
1
32
031168
WIRE ASS'Y, 44'/2" Long
1
13
031110
CABLE ASS'Y, Battery to Solenoid
1
33
031119
WIRE, Ignition to Rectifier (blue)
1
14
031103
CABLE ASS'Y, Battery to Ground 1
34
031721
WIRE, Wire to Ground (purpie)
1
15
REGULATOR RECTIFIER
35
031712
WIRE , Seat Switch to Ground
1
KOHLER 237335
1
39
031715
WIRE, (blue) Switch to Solenoid
1
16
025172 SWITCH, Reset 1
40
WIRE, (red)
1
17
531099
INTERLOCKMODULE
1
41
WIRE, (black) Ammeter to Switch
1
18
031716 SEAT SWITCH
1
43
031895
CONNECTOR
1
20
023478
CONNECTOR HOUSING, 5 Wire
1
031192 BULB (For Item No. 4, PTO Light)
1
21 023595
CONNECTOR HOUSING, 4 Wire
1
22
031106
CONNECTOR HOUSING, 3 Wire
1
23
031895
CONNECTOR HOUSING, 2 Wire
1
031105
CONNECTOR
1
- 3 3 -
