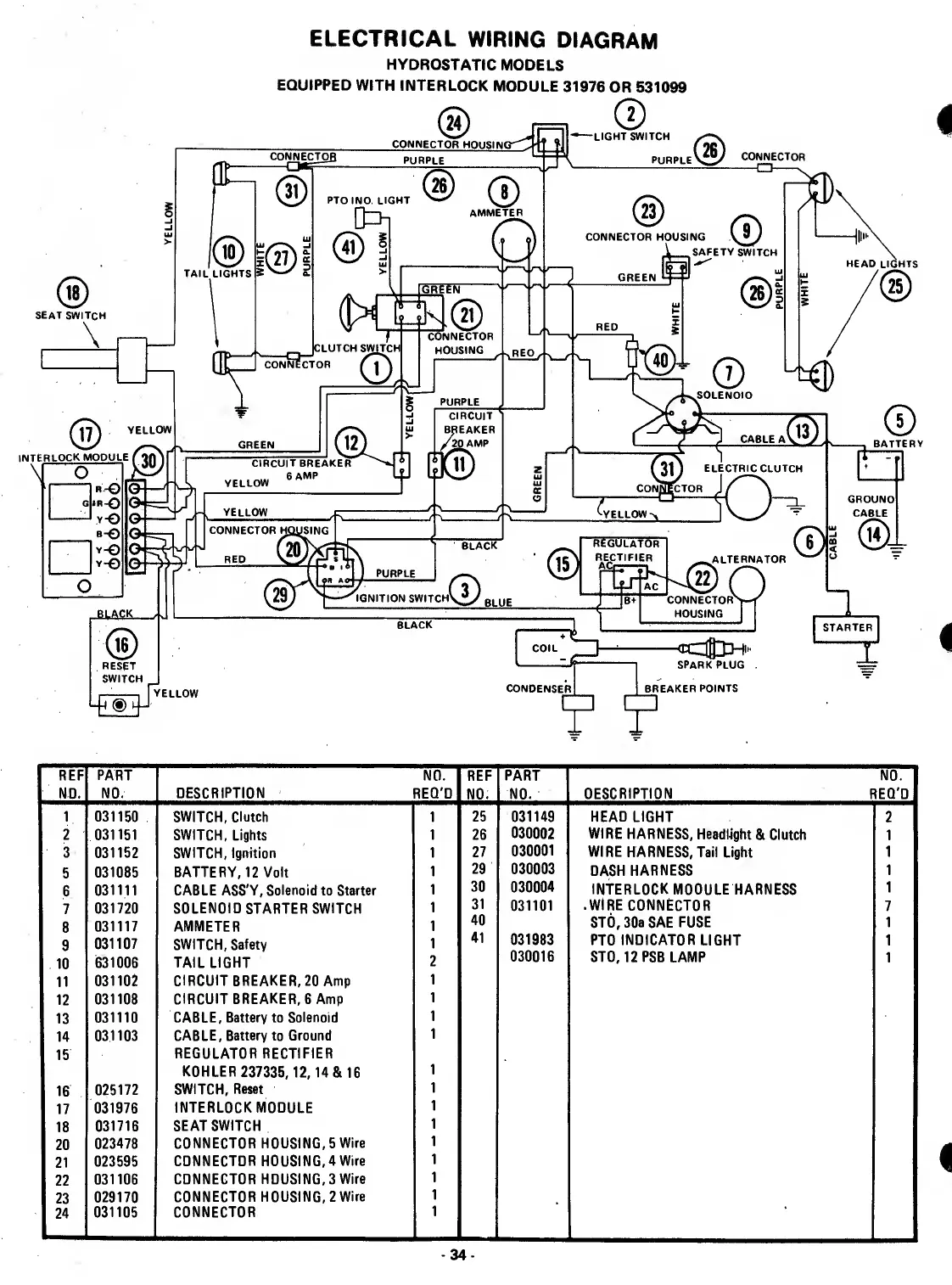

ELECTRICAL WiRING DIAGRAM
HYDROSTATIC MODELS
EQUIPPED WITH INTERLOCK MODULE 31976 OR S31099
REF
NO.
PART
NO.
DESCRIPTION
NO.
REQ'D
REF
NO.
PART
NO.
NO.
DESCRIPTION REQ'D
1
031150
SWITCH, Clutch 1
25
031149 HEAD LIGHT
2
031151 SWITCH, Lights
1 26
WIRE HARNESS, HeadMght & Clutch
1
031152 SWITCH, Igmtion
1
27
WIREHARNESS.Tail Light
031085 BATTERY,12 Volt
1
29
P-rrl
DASH HARNESS
n
031111 CABLE ASS'Y, Solenoid to Starter
1
30
INTERLOCK MODULE HARNESS
n
7
031720 SOLENOID STARTER SWITCH
1
31
031101 .WlRECONNECTDR
n
8
031117
AMMETER
1
40
STb, 30a SAE FUSE
1
9
031107
SWITCH, Safetv
1
41
031983
PTO INDICATOR LIGHT 1
10
631006 TAILLIGHT
2
030016
STD, 12 PSB LAMP
1
11
031102 CIRCUIT BREAKER, 20 Amp
1
12
031108
CIRCUIT BREAKER, 6 Amp
1
13
031110
CABLE, Battery to Solenoid
1
14
031103
CABLE, Battery to Ground
1
15
REGULATOR RECTIFIER
KOHLER237335,12,14&16
1
16
025172
SWITCH, Reset
1
17
031976
INTERLOCKMODULE
1
18
031716
SEAT SWITCH
1
El
023478
CONNECTOR HOUSING, 5 Wire
1
il
023595
CONNECTOR HOUSING,4 Wire
1
22
031106
CONNECTOR HOUSING, 3 Wire
1
23
029170
CONNECTOR HOUSING, 2 Wire
1
24
031105 CONNECTOR
1
- 3 4 -
