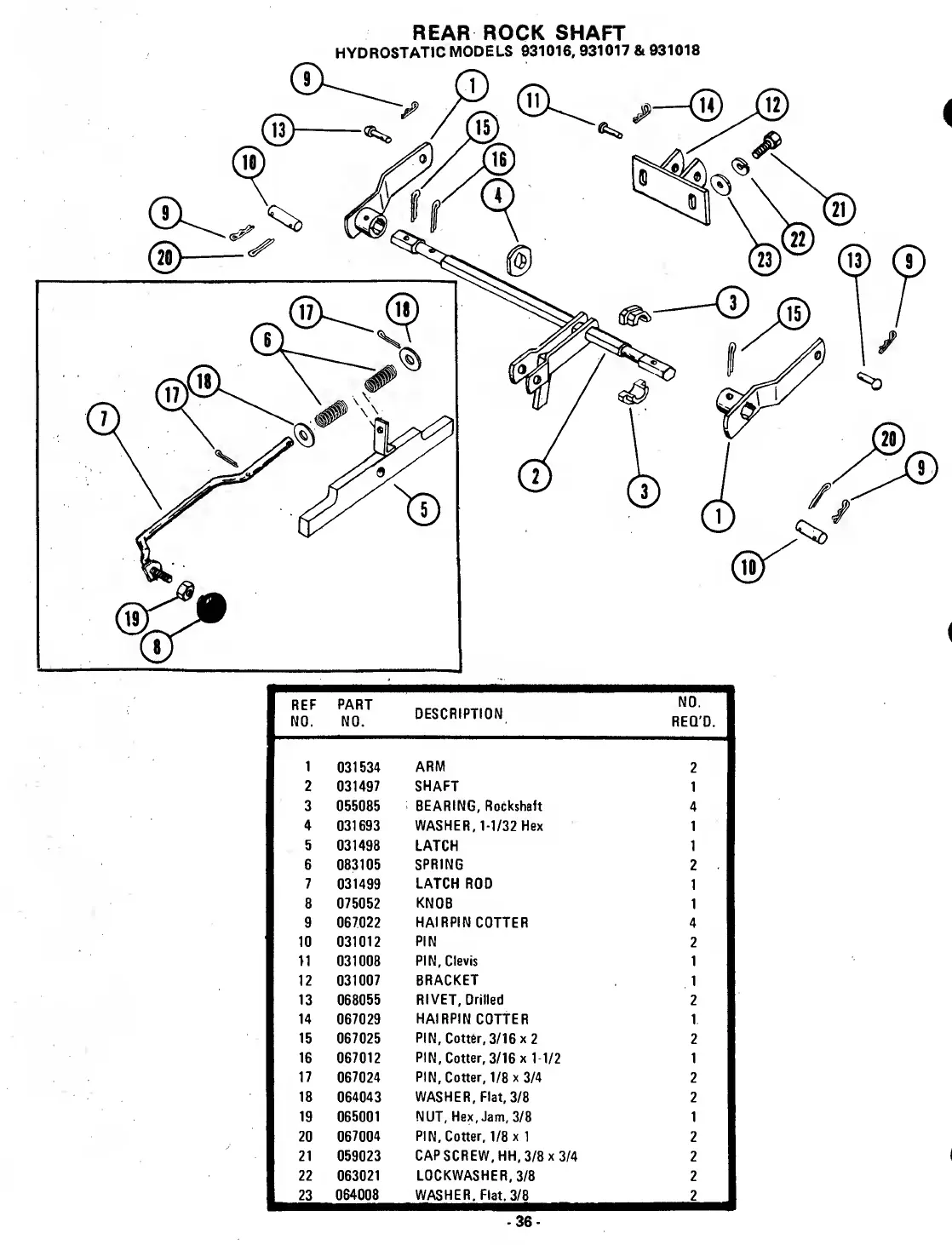

REAR ROCK SHAFT
HYDROSTATIC MODELS 931016, 931017 & 931018
REF
NO.
PART
NO.
DESCRIPTION
NO.
REQ’D.
1
031534
ARM
2
2
031497
SHAFT
1
3 055085 BEARIN6, Rockshaft
4
4
031693 WASHER, 1-1/32 Hex
1
5
031498
LATCH 1
6 083105 SPRING
2
7
031499
LATCH ROD
1
8 075052 KNOB
1
9 067022
HAIRPIN COTTER
4
10 031012
PIN
2
11 031008 PIN, Clevis 1
12
031007 BRACKET
1
13
068055 RIVET, Drilled
2
14
067029
HAIRPIN COTTER
1
15 067025
PIN, Comr, 3/16 X 2
2
16 067012
PIN,Cotter, 3/16 x 1-1/2
1
17
067024 PIN.Cotter, 1/8X3/4
2
18
064043
WASHER, Flat, 3/8
2
19 065001
NUT, Hex,Jam, 3/8
1
20
067004 PIN, Cotter, 1/8x1
2
21 059023
CAPSCREW.HH, 3/8x3/4 2
22 063021
LOCKWASHER,3/8 2
23
064008 WASHER. Flat, 3/8
2
- 3 6 -
