Ariens HYDROSTATIC S-12 - Page 39

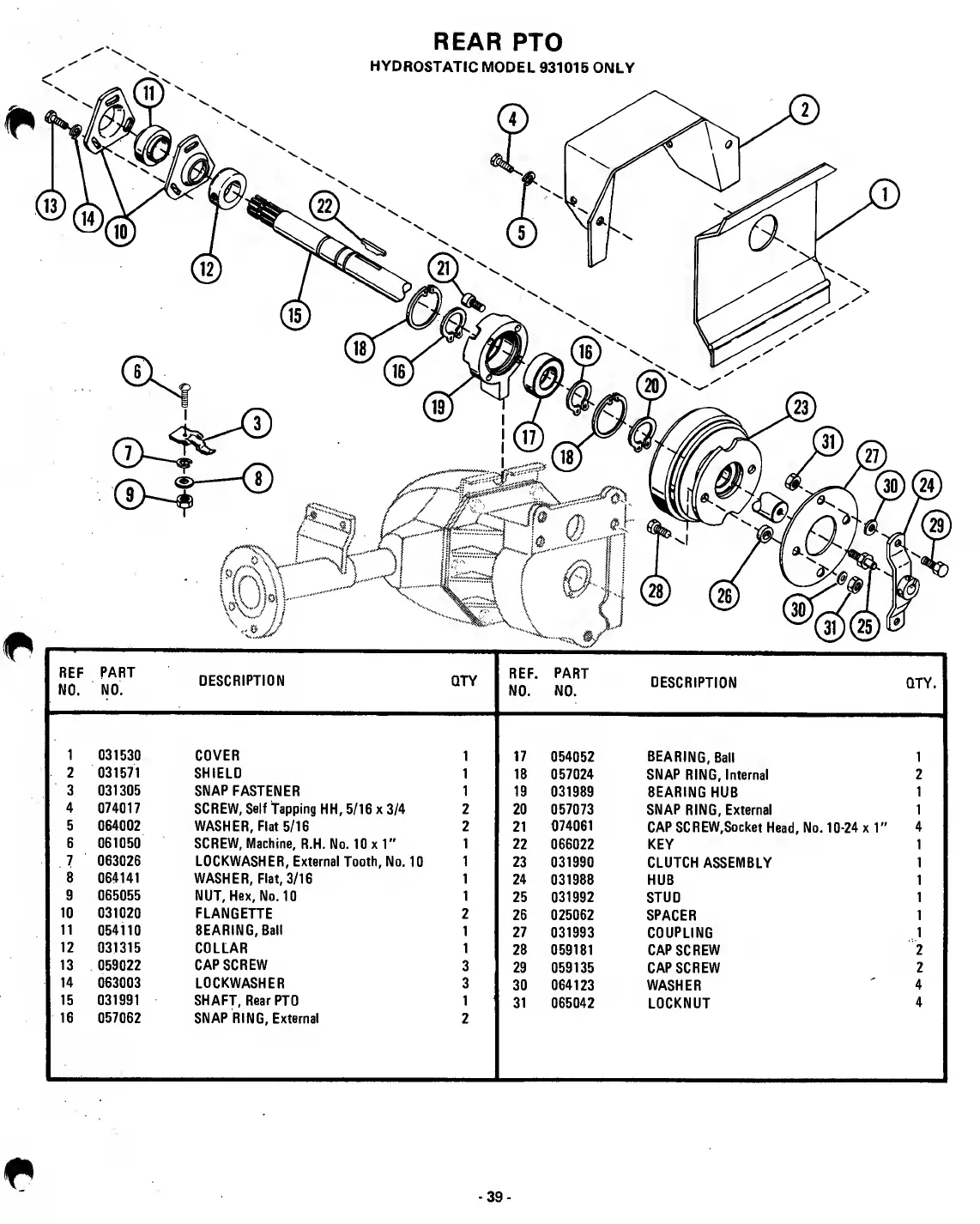

REAR PTO
HYDROSTATIC MODEL 931015 ONLY
t . ^ .ri T^'
.xi isf^/ ^ i Å
\B^. X3 ^ ^ ^
X v" / //
-'V.\
REF PART
NO. NO.
DESCRIPTION
REF. PART
NO. NO.
DESCRIPTION
1 031530 COVER
2 031571 SHIELD
3 031305 SNAP FASTENER
4 074017 SCREW.SeIf Tapping HH, 5/16x3/4
5 064002 WASHER, Flat 5/16
6 061050 SCREW, Machina, R.H. No. 10x1"
7 063026 LOCKWASHER, ExtarnalTooth.No. 10
8 064141 WASHER, Flat, 3/16
9 065055 NUT, Hex, No. 10
10 031020 FLANGETTE
11 054110 BEARING,Ball
12 031315 COLLAR
13 059022 CAP SCREW
14 063003 LOCKWASHER
15 031991 SHAFT, Rear PTO
16 057062 SNAP RING, External
17 054052 BEARING, Ball
18 057024 SNAP RING, Internal
19 031989 BEARING HUB
20 057073 SNAP RING, External
21 074061 CAP SCREW,Socket Head, No. 10-24x1'
22 066022 KEY
23 031990 CLUTCH ASSEMBLY
24 031988 HUB
25 031992 STUD
26 025062 SPACER
27 031993 COUPLING
28 059181 CAP SCREW
29 059135 CAP SCREW
30 064123 WASHER
31 065042 LOCKNUT
