Ariens HYDROSTATIC S-12 - Page 40

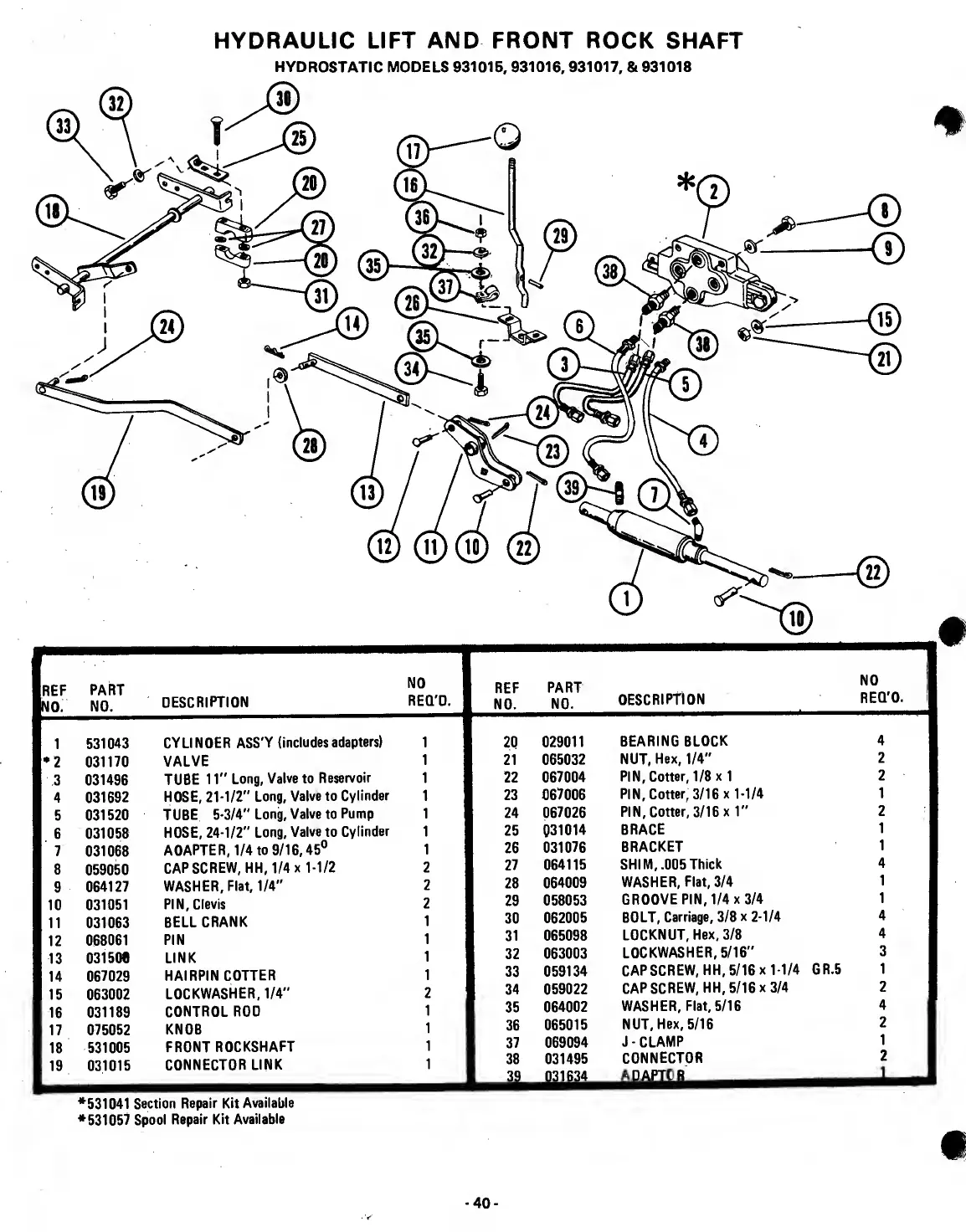

HYDRAULIC LIFT AND FRONT ROCK SHAFT
HYDROSTATIC MODELS 931015, 931016,931017, & 931018
REF
MO.
PART
NO.
DESCRIPTION
NO
REQ'D.
REF
NO.
PART
NO.
DESCRIPTION
NO
REQ'D.
1
531043
CYLINDER ASS'Y (inciudas adaptars) 1 20 029011
BEARING BLOCK
4
•2
IC TW
VALVE
1 21
065032
NUT, Hex, 1/4"
2
3
! TUBE 11" Long, Valva to Rasarvoir
1
22
067004
PIN, Cutter, 1/8x1
2
4
rrTTM
HOSE, 21-1/2" Long, Valva to Cylinder
1
23 067006
PIN, Cutter, 3/16x1-1/4
1
5
icTTiH
TUBE 5-3/4" Long, Valva to Pump
1
24 067026
PIN, Cutter, 3/16 X 1"
2
6
i HOSE, 24-1/2" Long, Valva to Cylinder
1
25
031014
BRACE
1
7
iciTm
ADAPTER, 1/4 to 9/16,45°
1
26
031076
BRACKET
1
8
CAPSCREW, HH, 1/4 X 1-1/2 2
27
064115
SHIM, .005 Thick
4
9
WASHER, Flat, 1/4"
2
28
064009
WASHER, Flat, 3/4
1
10
031051
PIN, Clevis
2
29
058053
GR00VEPIN,1/4x3/4
1
11
BELLCRANK
1
30
062005
BOLT, Carriage, 3/8 x 2-1/4
4
12
068061
PIN
1
31
065098
LOCKNUT, Hex, 3/8
4
13
031508
LINK
1
32
063003
LOCKWASHER, 5/16"
3
14
HAIRPIN COTTER
1
33
059134
CAPSCREW, HH, 5/16x1-1/4 GR.5
1
15
B; in iS
LOCKWASHER, 1/4"
2
34 059022
CAPSCREW, HH, 5/16x3/4
2
16
B c I : S
CONTROL ROD
1
35
064002
WASHER, Flat, 5/16
4
17
B ' ^ H
KNOB
1
36
065015
NUT, Hex, 5/16
2
18
R ; pi S
FRONT ROCKSHAFT
1
37
069094
J-CLAMP
1
19
CONNECTOR LINK
1
38
031495
CONNECTOR
2
39
ADAPTOR
*531041 Section Repair Kit Available
*531057 Spool Rapair Kit Availabia
- 4 0 -
