PACKAGE CONTENTS
ASSEMBLY
Tools Required:
• Pliers
• Open-end wrenches: 3/8, 7/16, 1/2,
9/16 in. and/or adjustable wrench
• Tire gauge
Unfold Handlebar (Figure 4)
1. Remove the lower and loosen the upper
hardware on the handlebar assembly.
2. Loosen the hardware on the shift rod.
3. Put the speed selector lever in the sixth
forward position.
4. Rotate the handlebars into operating
position.
NOTE: Be careful not to damage cable spring
hooks when rotating handlebars upward.
5. Install and tighten the hardware on the
handlebar assembly and shift rod.
.
ASSEMBLY
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
WARNING: Dropping or tipping over
boxed unit could result in personal
injury or damage to unit.

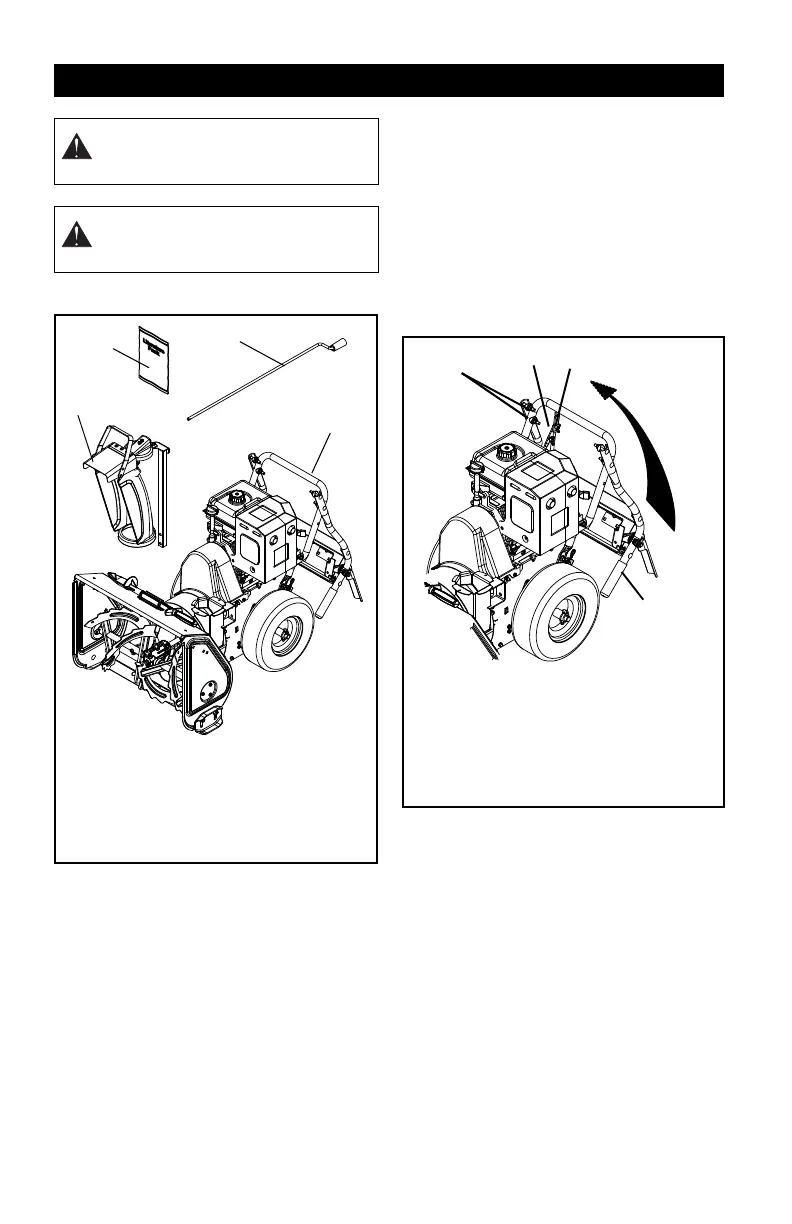

Figure 3
1. Sno-Tek™ Unit
2. Discharge
Chute
3. Chute Crank
4. Literature Pack
with Extra
Shear Bolts
1
2
4
3
OS8261
Figure 4
OS8025
1
2
3
1. Shift Rod
2. Upper and Lower Handlebar
Hardware
3. Shift Rod Hardware
4. Handlebar
4
