GB - 9
Install Discharge Chute (Figure 5)
1. Remove mounting hardware from the
bottom of the chute pedestal.
2. Install discharge chute over opening in
the auger housing and secure pedestal
to auger housing with hardware
removed in step 1.
Install Discharge Chute Crank
(Figure 6)
1. Slide chute crank through the support
bracket.
2. Connect the chute crank to the pinion
gear on chute with spring clip pin.

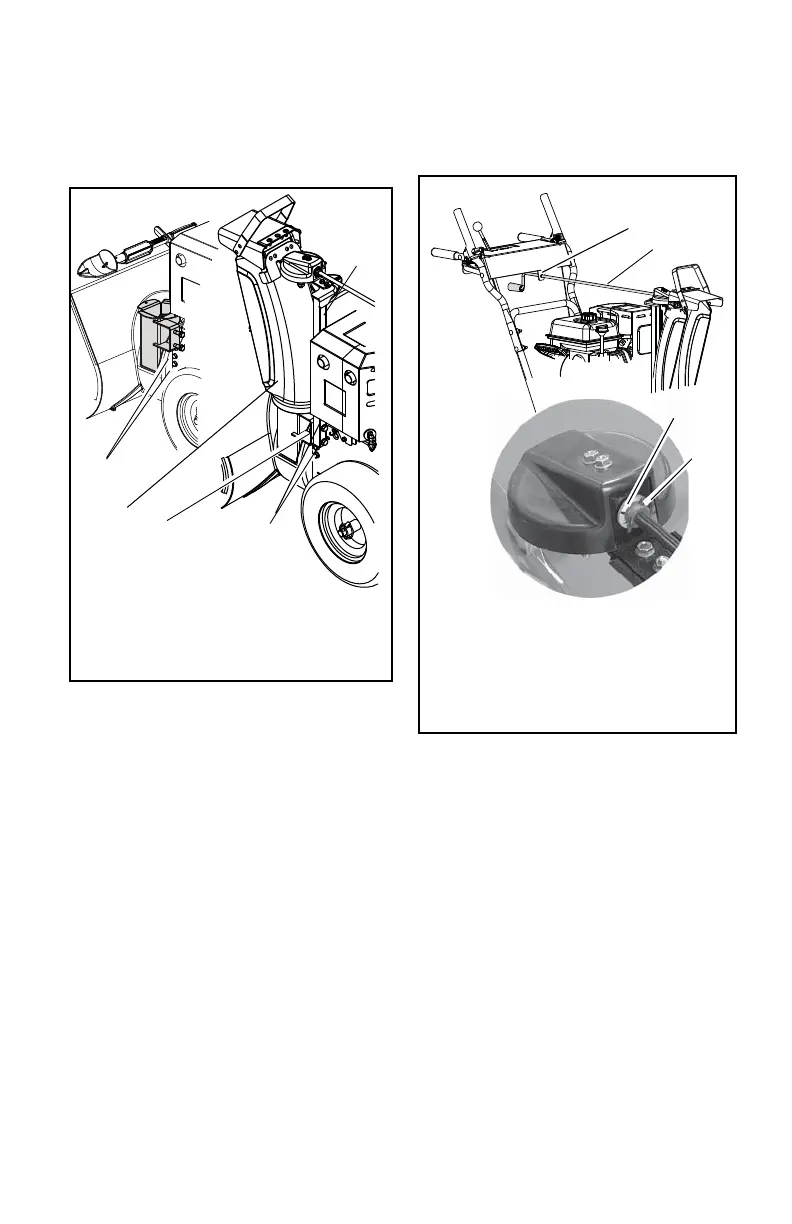

Figure 5
3
1
3
2
OS8030
1. Mounting Hardware
2. Discharge Chute
3. Chute Pedestal
1
Figure 6
1. Chute Crank
2. Support Bracket
3. Pinion Gear
4. Spring Clip Pin
1
2
3
4
OS8025
