Ariens Sno-Thro 921 Series User Manual

EN - 12
Install Discharge Chute and
Discharge Chute Crank
(Models 921023, 024, 030, 032, 035,
036, 037)
(Figures 10 and 11)
1. Grease underside of discharge chut
e
r
ing (if not already greased).
2. Remove mounting hardware from
auger
ho
using (Figure 10).
3. Install discharge chute over opening in
the auger housing. Finger tighten the
mounting hardware removed in step 2.
NOTICE: Leave discharge chute pedestal
loose to help install the chute crank.
4. Insert the short end of the chute cr
ank
int
o the hole in the front of the cont
rol
p
anel.
NOTICE: Be careful not to damage nylon
bushing when attaching crank to the control
panel.
5. Connect the chute crank to th
e pinion
gear on
chute with hairpin.

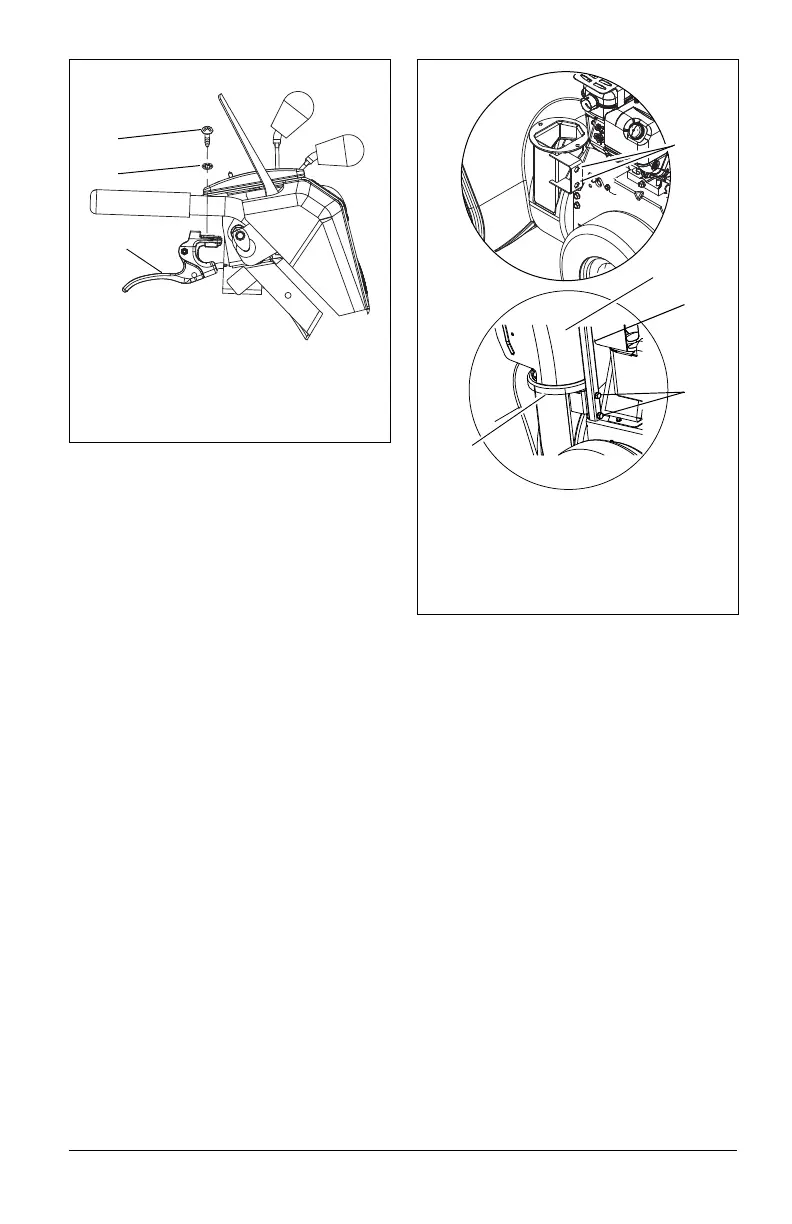

Figure 9
1. Trigger Cable Assembly
2. Oval Head Machine Screw
3. Internal Locking Washer
1
2
3
Figure 10
1. Mounting Holes
2. Discharge Chute
3. Chute Pedestal
4. Discharge Chute Ring
5. Mounting Hardware
1
5
3
2
4
