Ariens Sno-Thro ST724 User Manual

Orig. 6/99 Ariens
®
932 Series Sno-Thro
®
11

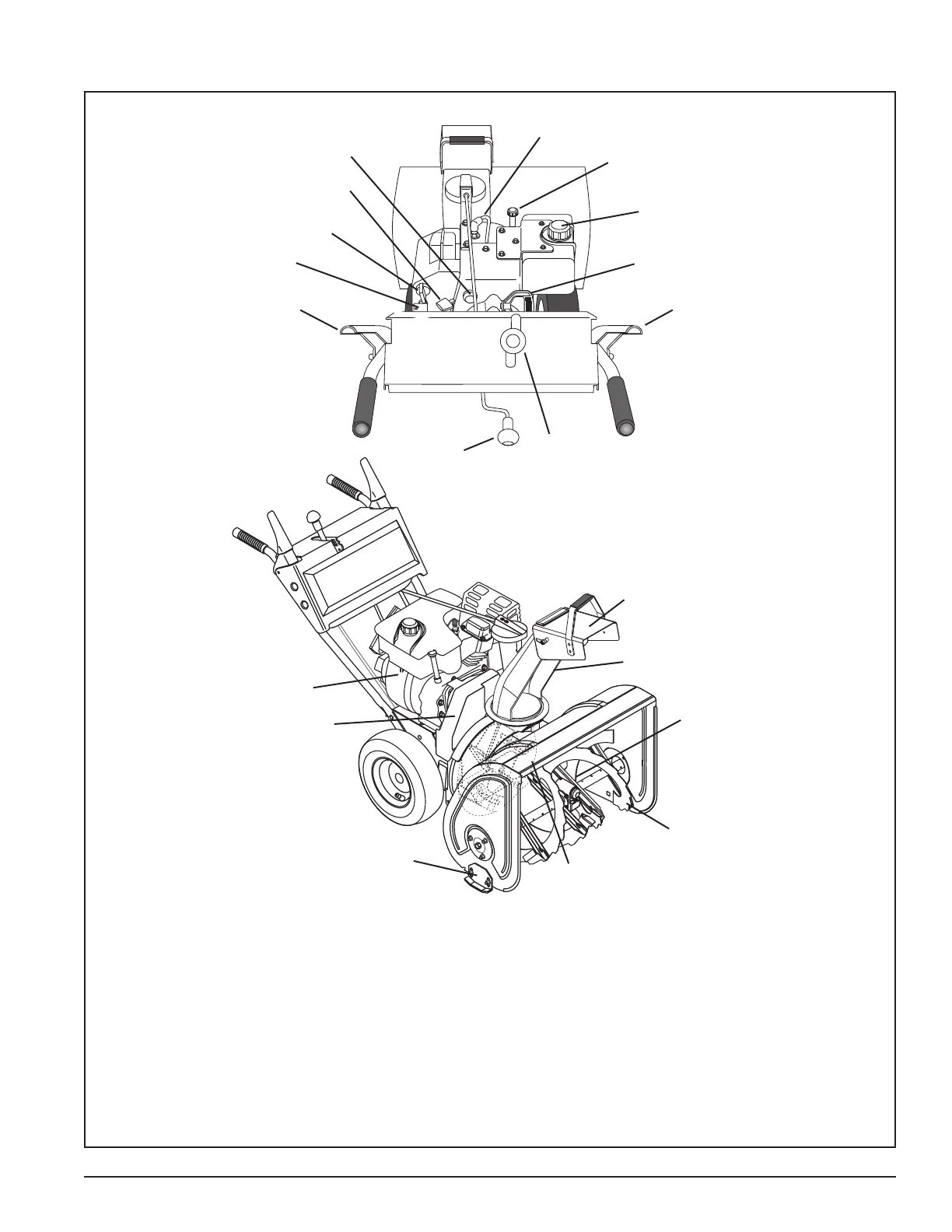

Figure 6
1. Traction Drive Clutch Lever
2. Attachment Clutch Lever
3. Engine Ignition and Key
4. Primer Bulb
5. Choke
6. Throttle
7. Speed Selector
8. Recoil Starter Handle
9. Chute Crank
10. Discharge Chute Deflector
CONTROLS AND FEATURES LOCATIONS
11. Discharge Chute
12. Auger
13. Impeller
14. Scraper Blade
15. Runner(s)
16. Gas Tank and Cap
17. Oil Fill and Dipstick
18. Spark Plug and Wire
19. Belt Guard Cover
20. Fuel Shut Off Valve
OS0500
OS1382
15
11
13
12
10
14
1
9
3
7
5
6
2
4
8
17
16
18
19
20

Ariens Sno-Thro ST724 Specifications

General

Type	Two-Stage
Engine	Ariens AX 208cc
Auger Material	Steel
Clearing Width	24 inches
Speeds	6 forward, 2 reverse
Impeller Diameter	12 in
Throwing Distance	Up to 40 feet
