57
MAINTENANCE GUIDE

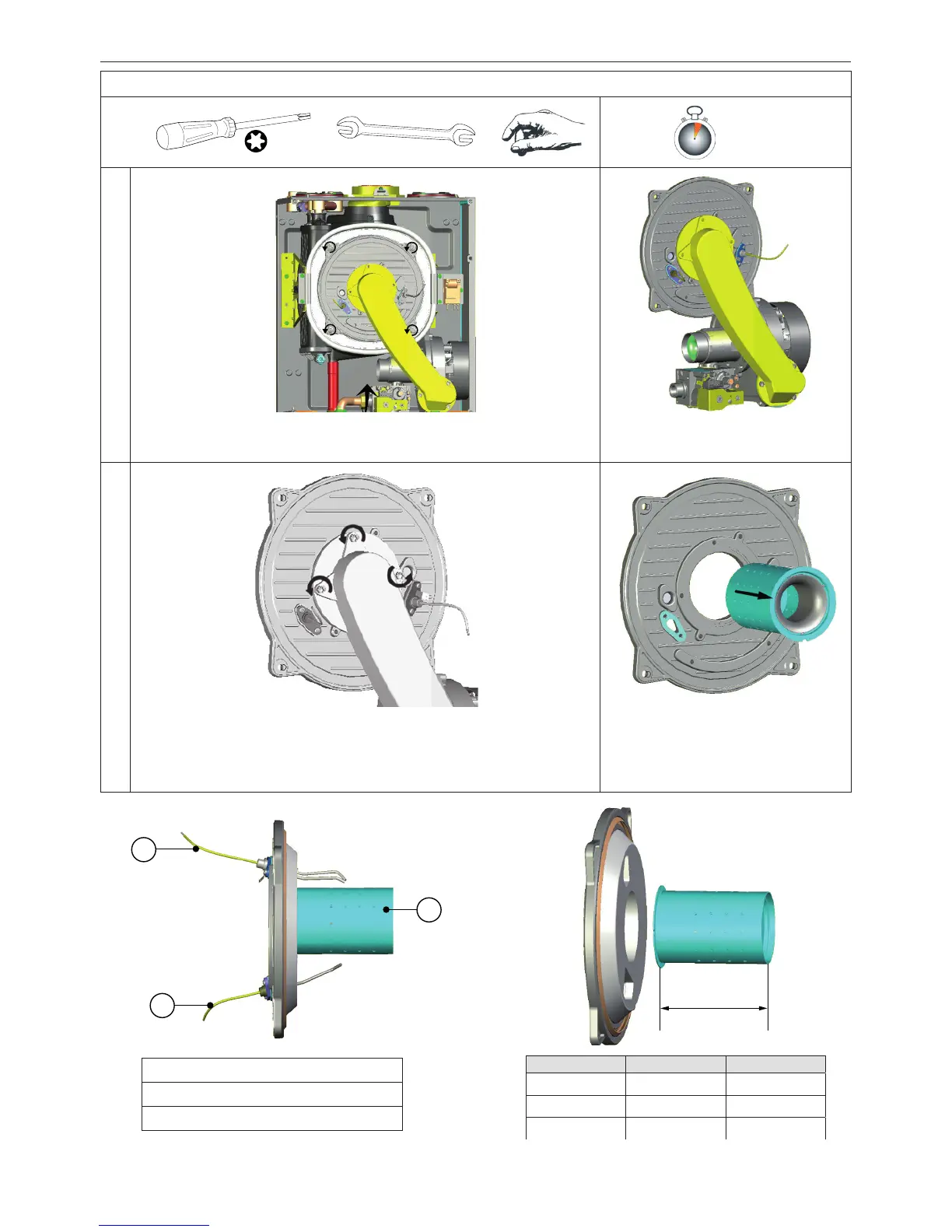

4.3 BURNER
Tools
Time
15 min
1
Isolate the gas supply. Remove the four screws and disconnect the
gas pipe from the gas valve
Pull the assembly towards you
2
Remove the three screws to free the burner door Pull the burner toward you
Replace any gaskets that are
damaged or showing signs of
deterioration
1. Stainless Steel Burner
2. Ignition electrode
3. Detection electrode
Power Length Venturi
12 kW 73.4 mm
ø 42 mm
18 kW 73.4 mm
ø 42 mm
24 kW
104.6 mm
ø 42 mm
30 kW 135.8 mm /
