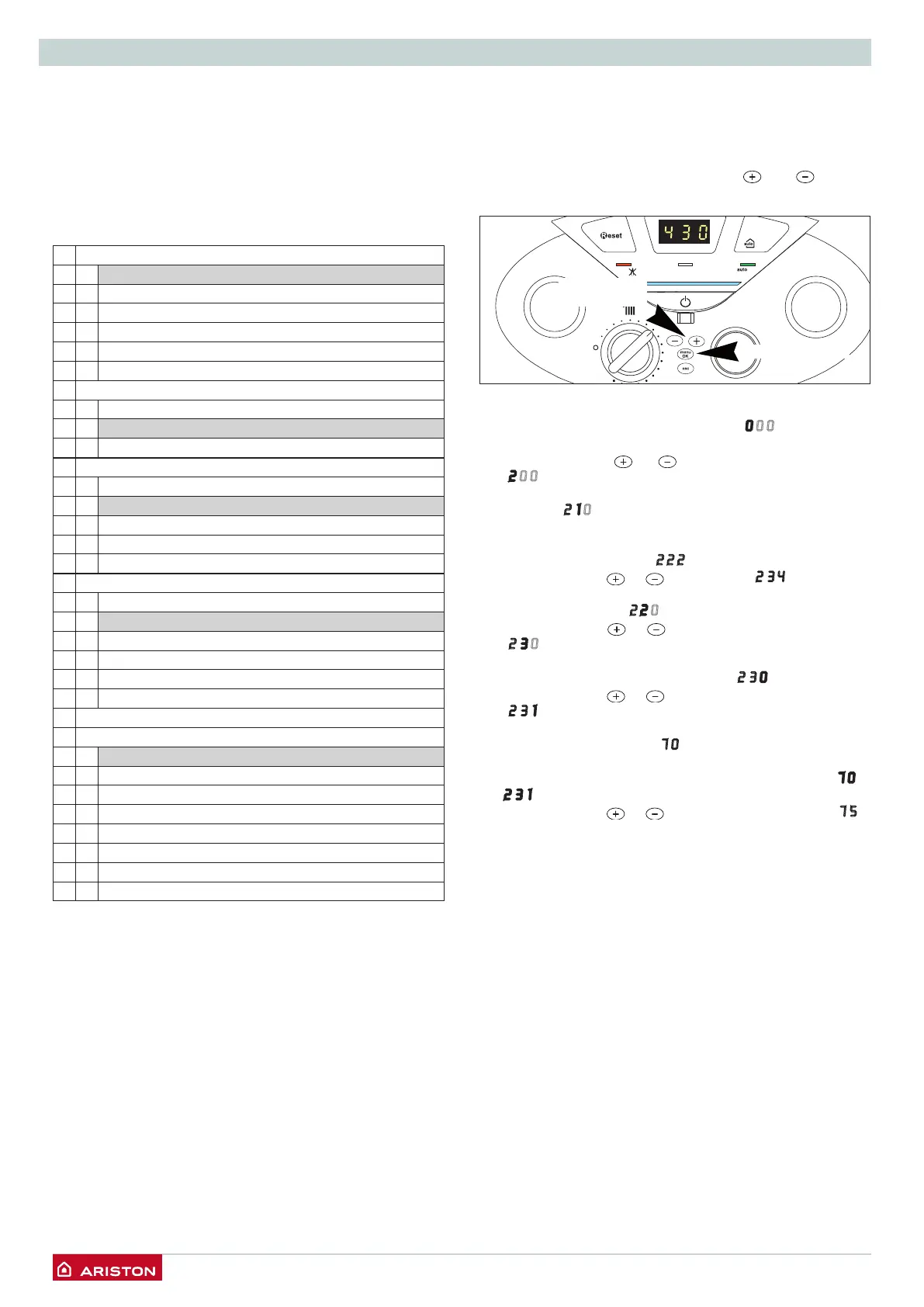

SETTINGS - ADJUSTMENT - PROBLEM IDENTIFICATION MENUS
The parameters relating to each individual menu are listed in the
following pages.
The various parameters can be accessed and modified using the
meNu/ok button and programming buttons and . (see fig.
below).
To access the Menus, open the cover and proceed as follows:
1. Press the meNu/ok button; the first figure 000 will flash on the
display.
2. Press the buttons or to select a menu, for example:
“200
3. Press the meNu/ok button; the second figures on the display will
flash, e.g. “210.
Caution! The menus reserved for qualified technicians may only be
accessed after setting the access code.
4. Press the meNu/ok button; 222 will appear on the display unit.
5. Press the buttons or to select code 234
6. Press the meNu/ok button to select the sub menu; the second
figures will flash, e.g. “220”.
7. Press the buttons or to select a sub menu; for example:
“230
8. Press the meNu/ok button to access the sub menu parameters;
the three figures will flash, for example: “230”.
9. Press the buttons or to select a parameter; for example:
“231
10. Press the meNu/ok button to access the parameter; the display
will indicate the value, e.g “70”.
Note: The parameter value will be displayed for 20 seconds, then
will begin to flash in alternation with the parameter, e.g. “70 >
231.
11. Press the buttons or to select the new value, e.g. “75”.
12. Press meNu/ok to save the change or press esc to exit without
saving.
To exit, press the esc button until the normal display screen is
restored.
For menus which do not require the access code, it is possible to
pass directly from the menu to the sub menu.
Accessing the settings - adjustment - problem identification
menus
The boiler can be used to manage the heating system in its entirety.
Navigation within the menus enables the boiler system + connected
peripheral units to be customised, optimising operation for
maximum comfort and maximum saving. It also provides important
information relating to the efficient operation of the boiler.
The following menus are available:
2 Boiler Parameter
2 1 Service code (234)
2 2 General setting
2 3 C.H. Parameters - Part 1
2 4 C.H. Parameters - Part 1
2 5 Do not use
2 9 Menu 2 Reset to factory setting
3 Solar & Storage
3 0 General setting
3 1 Service code (234)
3 2 Special setting
4 Zone 1 Parameters
4 0 Set-point Zone1
4 1 Service code (234)
4 2 Zone 1 Setting
4 3 Diagnostics
4 4 Zone device mangement
5 Zone 2 Parameters
5 0 Set-point Zone2
5 1 Service code (234)
5 2 Zone 2 Setting
5 3 Diagnostics
5 4 Zone device mangement
5 5 Multizone
7 Test & Utilities
8 Service Parameter
8 1 Service code (234)
8 2 Boiler
8 3 Boiler Temperature
8 4 Don’t use
8 5 Service
8 6 Statistics
8 7 E@sy - NOT ACTIVE
8 8 Error History
programmiNg
buttons
Menu/Ok button
