PRODUCT DESCRIPTION

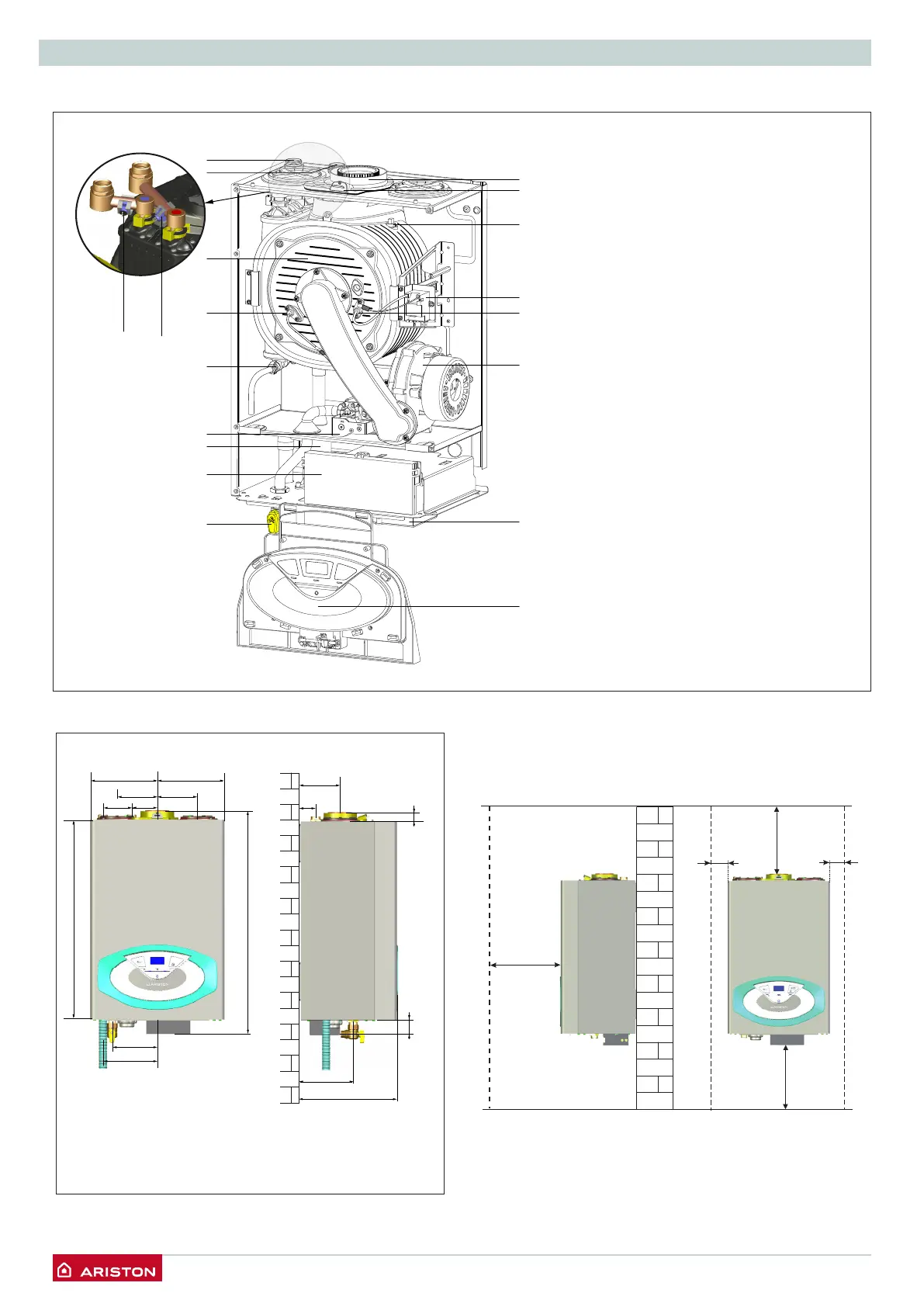

Overall view
1. Central heating return
2. Central heating flow
3. Burner
4. Detection electrode
5. C.H. Return temperature probe
6. C.H. Flow temperature probe
7. Manual air vent
8. Gas valve
9. Trap
10. Electrical box
11. Gas tap
12. Display box
13. Electrical connection box
14. Modulating fan
15. Ignition electrodes
16. Ignitor
17. Thermal fuse
18. Combustion analysis test point
19. Flue connector
Overall Dimensions
Minimum clearances
In order to allow easy access to the boiler for maintenance
operations, The boiler must be installed in accordance with the
clearances stated below.
1
2
3
4
7
5
6
8
9
10
11
18
19
17
16
15
14
13
12
200
200
120
120
96,5
70,7
122
25
595
52
161
292 (12-18-24 kW)
362 (30 kW)
135
162
665
44.5
450
300
250
5
5
