MAINTENANCE GUIDE

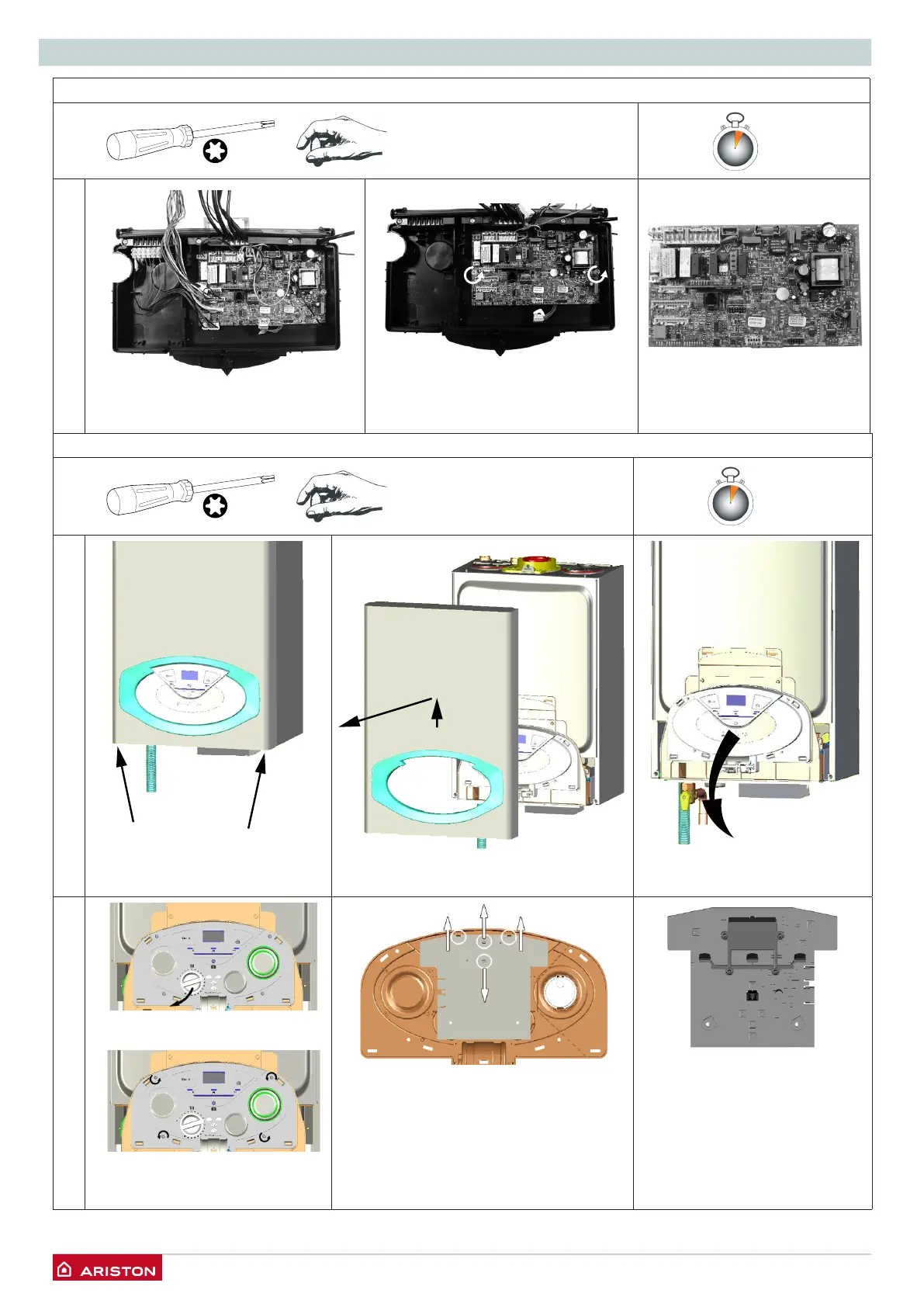

2.3 MAIN PCB
Tools
Time
7 min
1
After opening the control box, dis-
connect the electrical plug connectors
Unscrew the two screws and remove
the PCB
2.4 DISPLAY PCB
Tools
Time
7 min
1
Remove the two screws
Remove the front panel
Lower the door
2
Remove the control knob
Unscrew the four screws and pull
the assembly towards you
Disconnect the electrical plug connectors,
unlock the four clamps, and remove the PCB
