MAINTENANCE GUIDE: CLAS HE SYSTEM
4.3 BURNER
BURNER
Tools
Time
15 min
1. Stainless Steel Burner
2. Ignition electrode
3. Detection electrode
Power Length
18 KW 72.5 mm
25 KW 104.6 mm
30 KW 135.8 mm
38 KW 167 mm
1

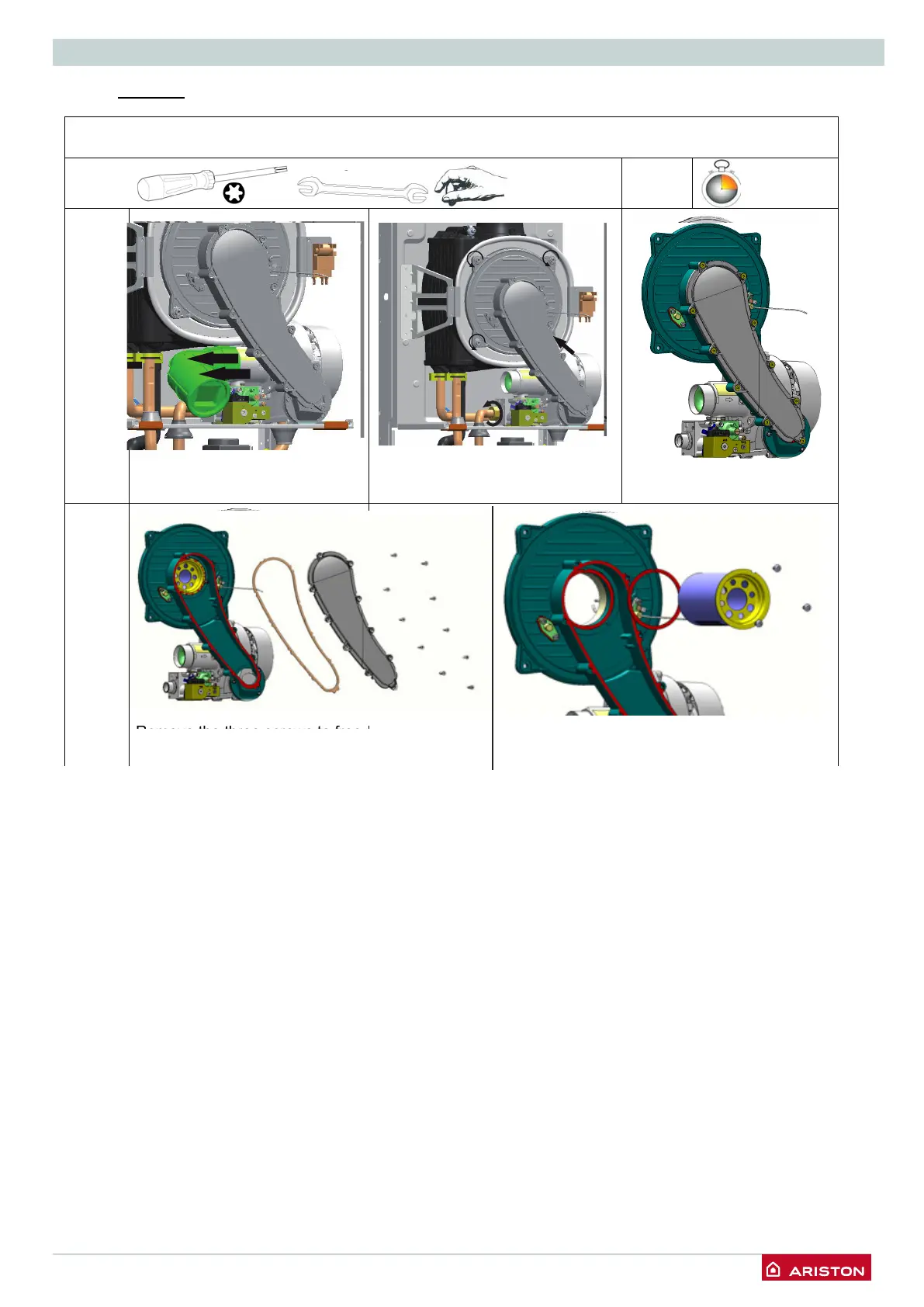

Isolate the gas supply. Remove the
four screws and disconnect the
gas pipe from the gas valve
Pull the assembly towards
you
Remove the silencer
2
Pull the burner toward you
Remove the three screws to free
the burner door
Replace any gaskets that are damaged or showing signs of
deterioration
