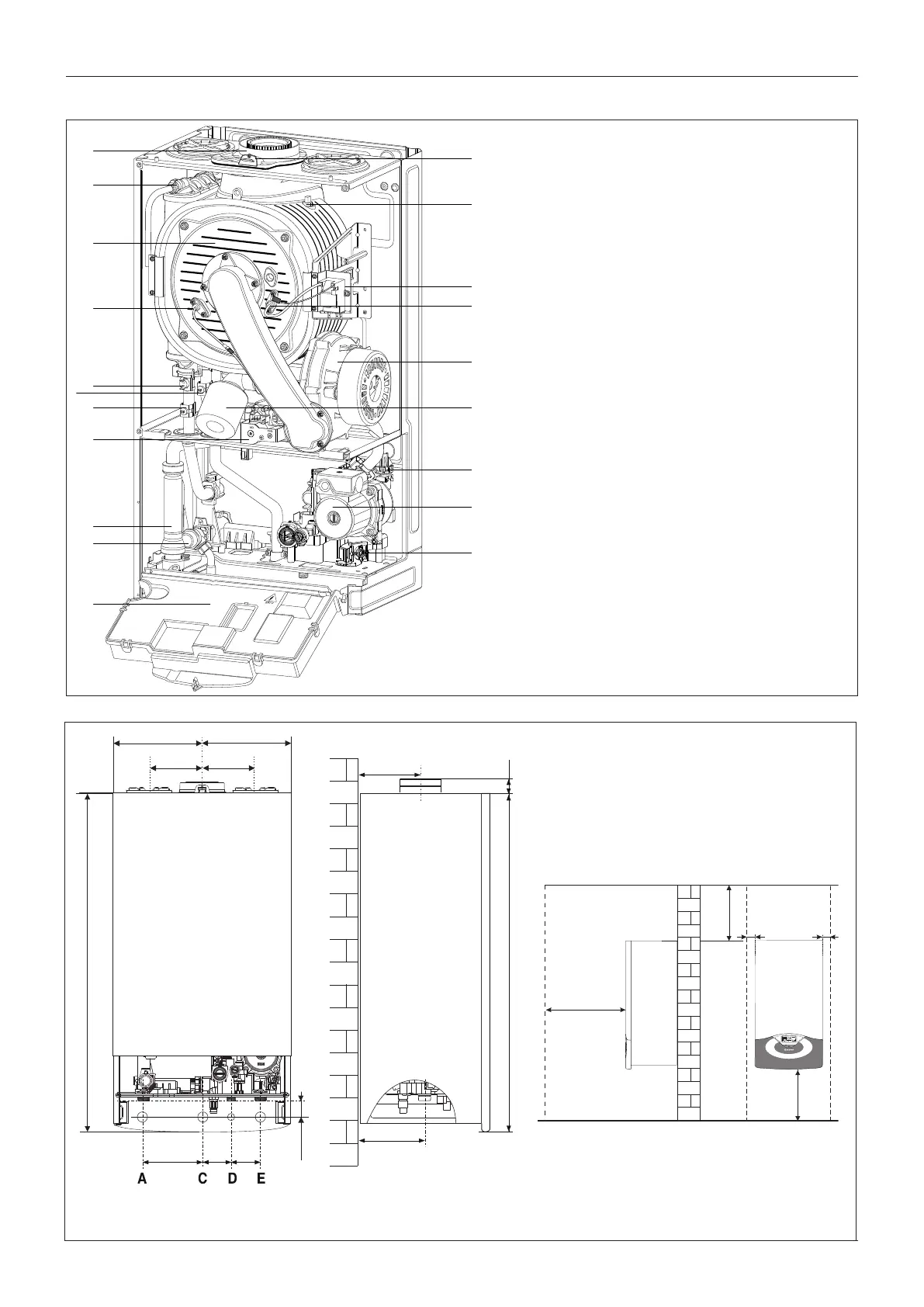

Overall view
Overall Dimensions
A. Central Heating Flow
C. Gas Inlet
D. Cold Mains Connection
E. Central Heating Return
Minimum clearances
In order to allow easy access to the boiler for
maintenance operations, The boiler must be installed
in accordance with the clearances stated below.
5
5
1. Flue Connector
2. Manual Vent
3. Burner
4. Detection Electrode
5. Overheat Thermostat
6. C.H. Return Temperature Probe
7. C.H. Flow Temperature Probe
8. Gas Valve
11. Trap
12. C.H. Pressure Relief Valve
13. Electrical Box
15. Circuit Filter
17. Circulation Pump with Air Release Valve
19. Water Pressure Sensor
20. Silencer
21. Modulating Fan
22. Ignition Electrodes
23. Ignitor
24. Thermal Fuse
25. Combustion Analysis Test Point
1
2
3
4
5
6
7
8
11
12
13
25
24
23
22
21
20
17
19
15
