MAINTENANCE GUIDE: GENUS PREMIUM
4.4 FAN
FAN
Tools
Time
15 min
1

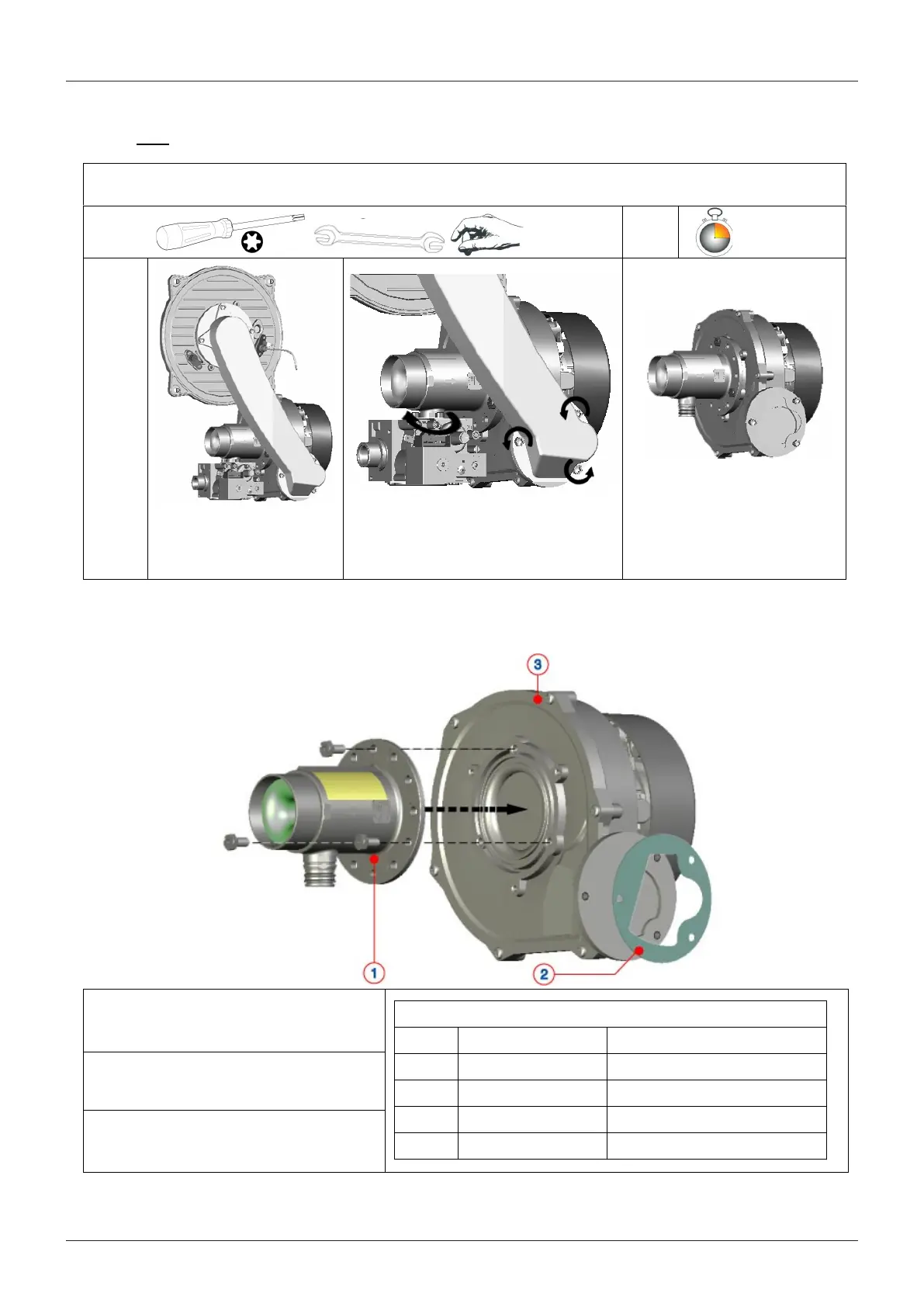

Remove the combustion
assembly (see 4.3)
Remove the three screws to free the
fan.
Twist the gas valve anti-clockwise to
disengage it from the fan
1. Venturi
2. Gasket
Fan & mixer venturi according to the model
Power Fan Venturi diameter
18 KW
EBM RG 128 45 W Ø 17 mm
25 KW
EBM RG 128 45 W Ø 17 mm
30 KW
EBM RG 128 45 W Ø 21 mm
3. Fan
EBM RG 128 45 W Ø 21 mm
38 KW
