settings - adjustment - problem identication menus
Accessing the settings - adjustment - problem identication
menus
The boiler can be used to manage the heating and domestic hot
water production system in its entirety.
Navigation within the menus enables the boiler system +
connected peripheral units to be customised, optimising
operation for maximum comfort and maximum saving. It also
provides important information relating to the ecient operation
of the boiler.
The following menus are available:
The parameters relating to each individual menu are listed in the
following pages.

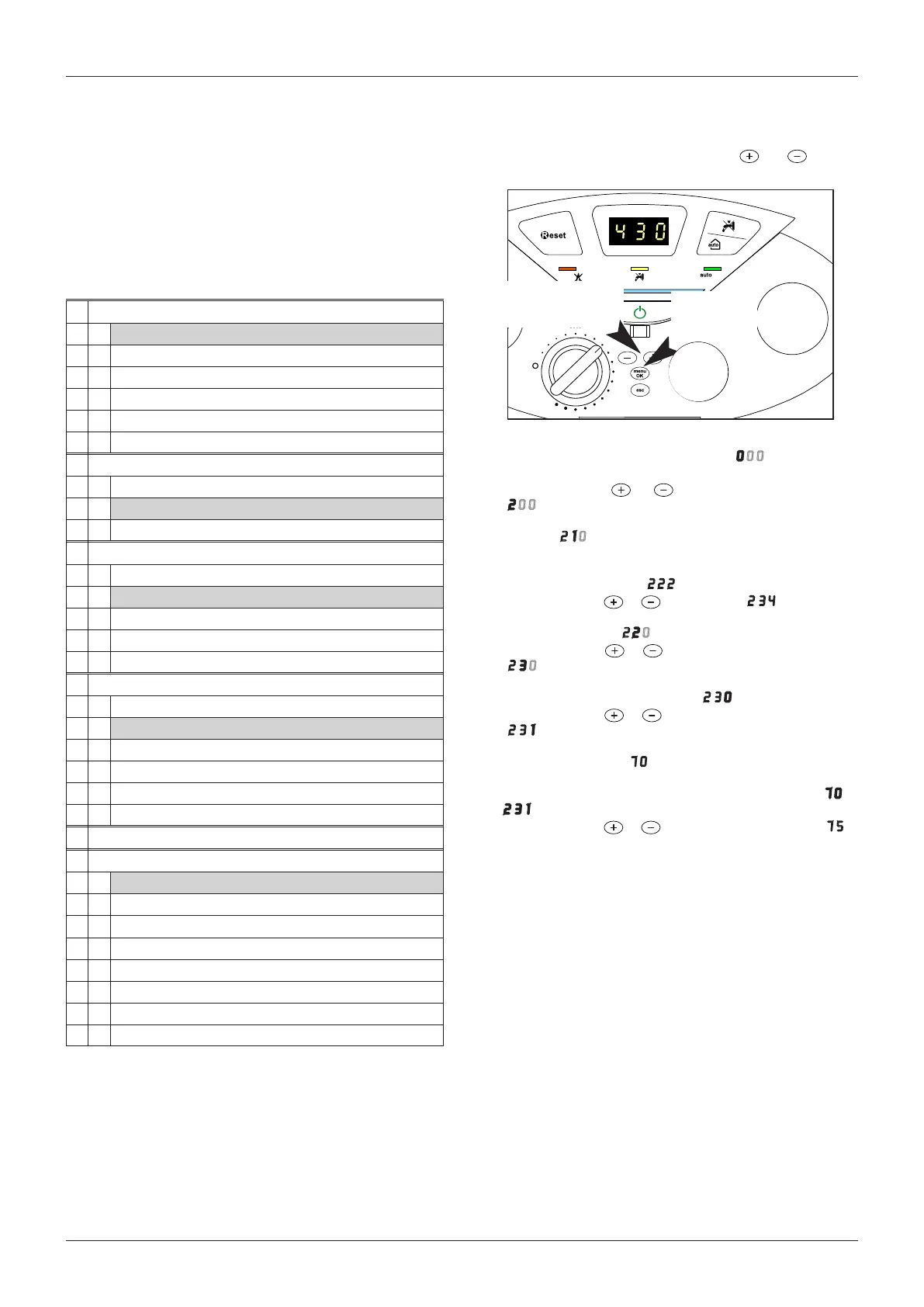

The various parameters can be accessed and modied using th
menu/Ok button and programmation buttons and . (see g.
below).
To access the Menus, open the cover and proceed as follows:
1. Press the menu/Ok button; the rst gure 000 will ash on the
display.
2. Press the buttons or to select a menu, for example:
“200
3. Press the menu/Ok button; the second gures on the display will
ash, e.g. “210.
Caution! The menus reserved for qualied technicians may only be
accessed after setting the access code.
4. Press the menu/Ok button; 222 will appear on the display unit.
5. Press the buttons or to select code 234
6. Press the menu/Ok button to select the sub menu; the second
gures will ash, e.g. “220”.
7. Press the buttons or to select a sub menu; for example:
“230
8. Press the menu/Ok button to access the sub menu parameters; the
three gures will ash, for example: “230”.
9. Press the buttons or to select a parameter; for example:
“231
10. Press the menu/Ok button to access the parameter; the display will
indicate the value, e.g “70”.
Note: The parameter value will be displayed for 20 seconds, then
will begin to ash in alternation with the parameter, e.g. “70 >
231.
11. Press the buttons or to select the new value, e.g. “75”.
12. Press menu/Ok to save the change or press esC to exit without
saving.
To exit, press the esC button until the normal display screen is
restored.
For menus which do not require the access code, it is possible to pass
directly from the menu to the sub menu.
2 Boiler Parameter
2 1 Service code (234)
2 2 General setting
2 3 C.H. Parameters - Part 1
2 4 C.H. Parameters - Part 1
2 5 Domestic Hot Water
2 9 Menù 2 Reset to factory setting
3 Solar & Storage
3 0 General setting
3 1 Service code (234)
3 2 Special setting
4 Zone 1 Parameters
4 0 Set-point Zone1
4 1 Service code (234)
4 2 Zone 1 Setting
4 3 Diagnostics
4 4 Zone device mangement
5 Zone 2 Parameters
5 0 Set-point Zone2
5 1 Service code (234)
5 2 Zone 2 Setting
5 3 Diagnostics
5 4 Zone device mangement
5 5 Multizone
7 Test & Utilities
8 Service Parameter
8 1 Service code (234)
8 2 Boiler
8 3 Boiler Temperature
8 4 Solar & Storage
8 5 Service
8 6 Statistics
8 7 E@sy - NOT ACTIVE
8 8 Error History
program
button
Menu/Ok-
button
