general information
Overall wiew

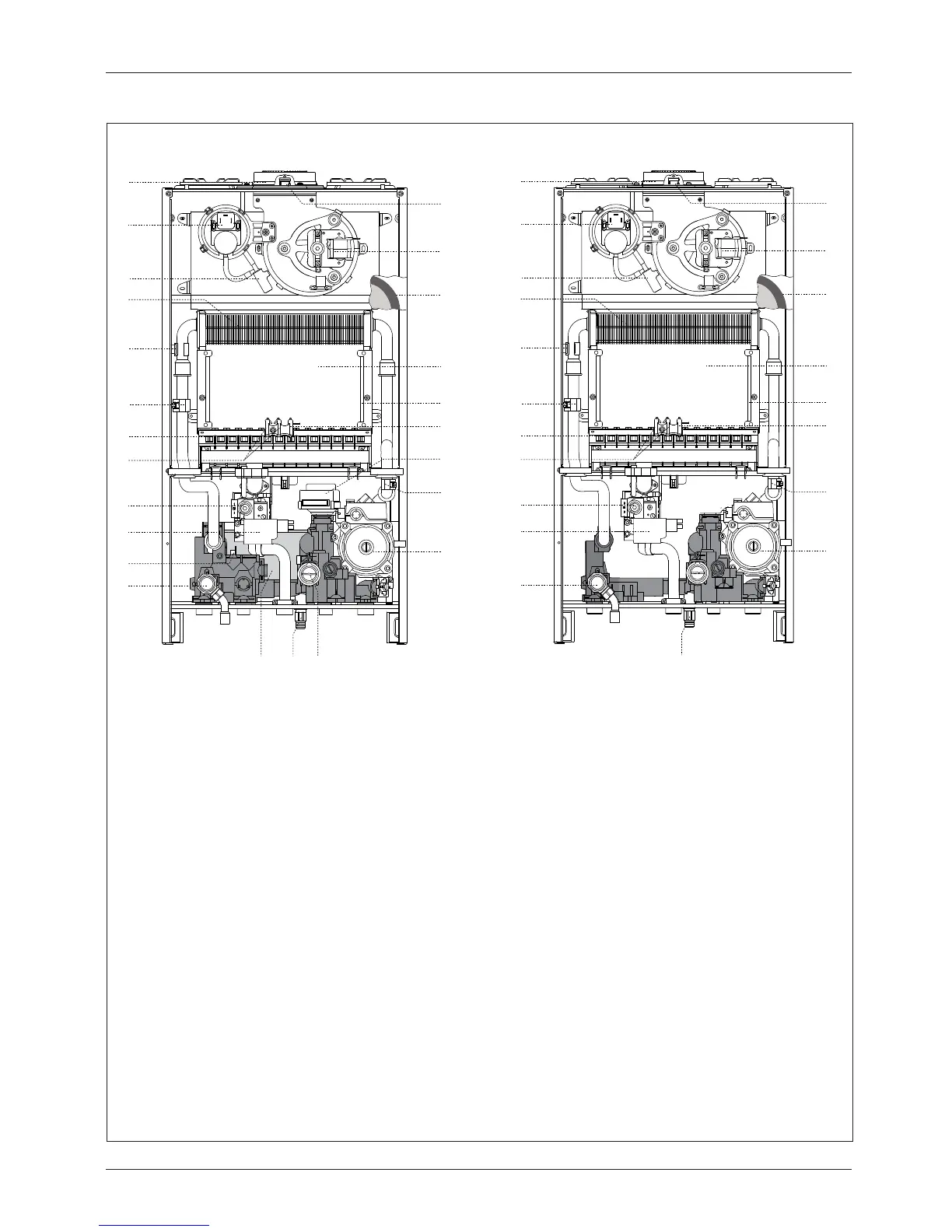

Legend
1. Flue connector
2. Air pressure switch
3. Condensate trap
4. Main Heat Exchanger
5. Overheat thermostat
6. Flow temperature probe
7. Burner
8. Ignition electrodes
9. Gas valve
10. Spark generator
11. D.H.W. temperature probe
12. Safety valve (3 bar)
13. Secondary heat exchanger
14. Drain valve
15. D.H.W. Flow switch
16. Circulation Pump with air release valve
17. Water pressure sensor
18. Diverter valve
19. Detection Electrode
20. Combustion Chamber Insulation Panel
21. Combustion Chamber
22. Expansion vessel
23. Fan
24. Combustion Analysis Test Point
1
2
3
5
6
7
9
10
12
13 14 15
16
17
18
19
20
21
22
23
24
11
8
4
1
2
3
5
6
7
9
10
12
14
16
17
19
20
21
22
23
24
8
4
Fig. 3
Fig. 4
CLAS 24/30 FF
CLAS SYSTEM 21/28 FF
