10. TOE KICK

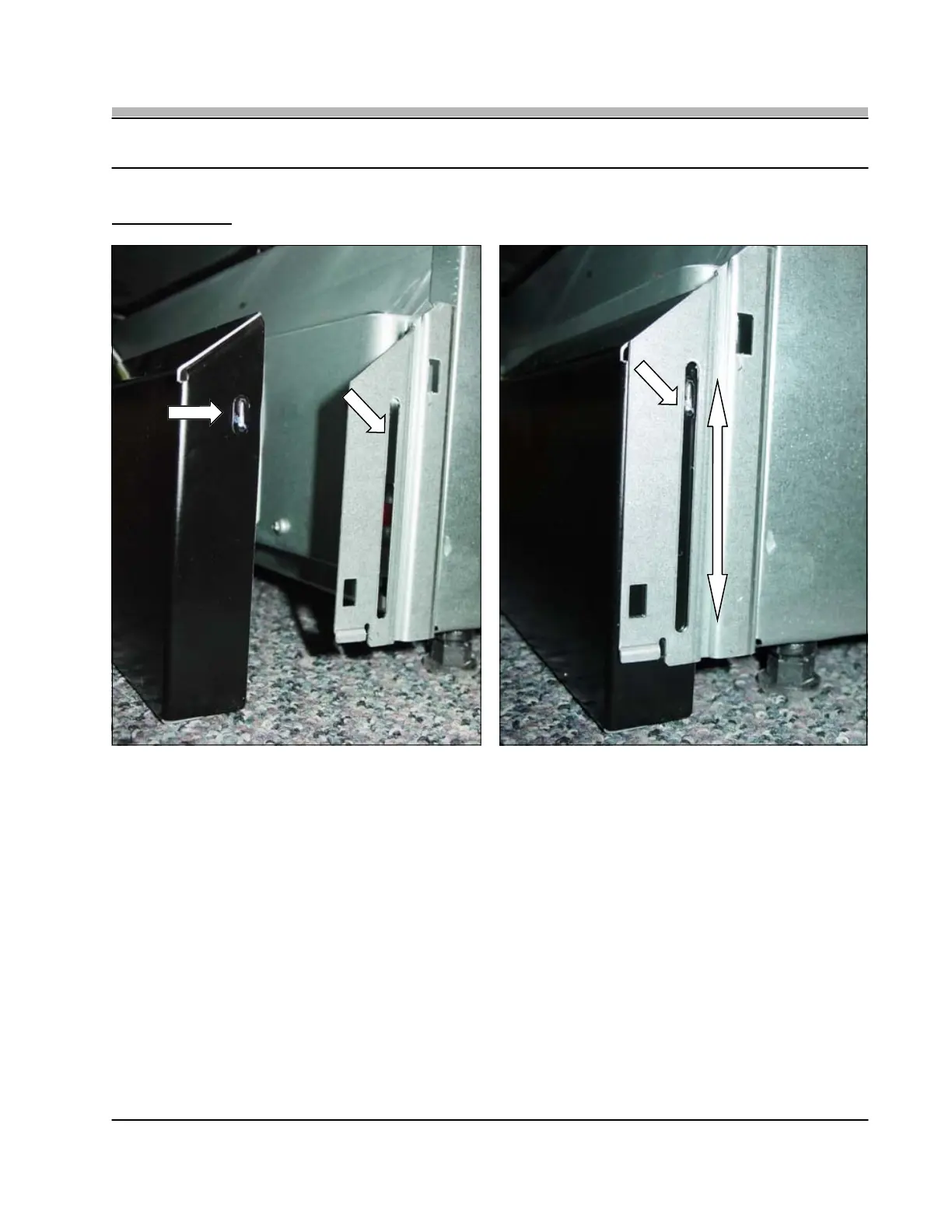

• The Toe Kick is a tension fit and mounts into the Side Support Plates “A” located on the left and right lower corners of the
Dishwasher. The Toe Kick is held in place and adjusted using a dimple stamped into the Toe Kick (Fig. 10-1). Once the Toe Kick is
inserted into the Support Plate you can adjust the Toe Kick to the required height by simply sliding it up or down (Fig. 10-2).
To remove the Toe Kick firmly pull it toward you.
TECH NOTE: When installing the Toe Kick remember that it fits inside the left and right Side Support Plates (Fig. 10-2).
Fig. 10-1 Fig. 10-2
A
A
L 63 / LL 64 / LL 65
LI 640 / LI 670 / LI 700
