REPAIR MANUAL
Page: 14

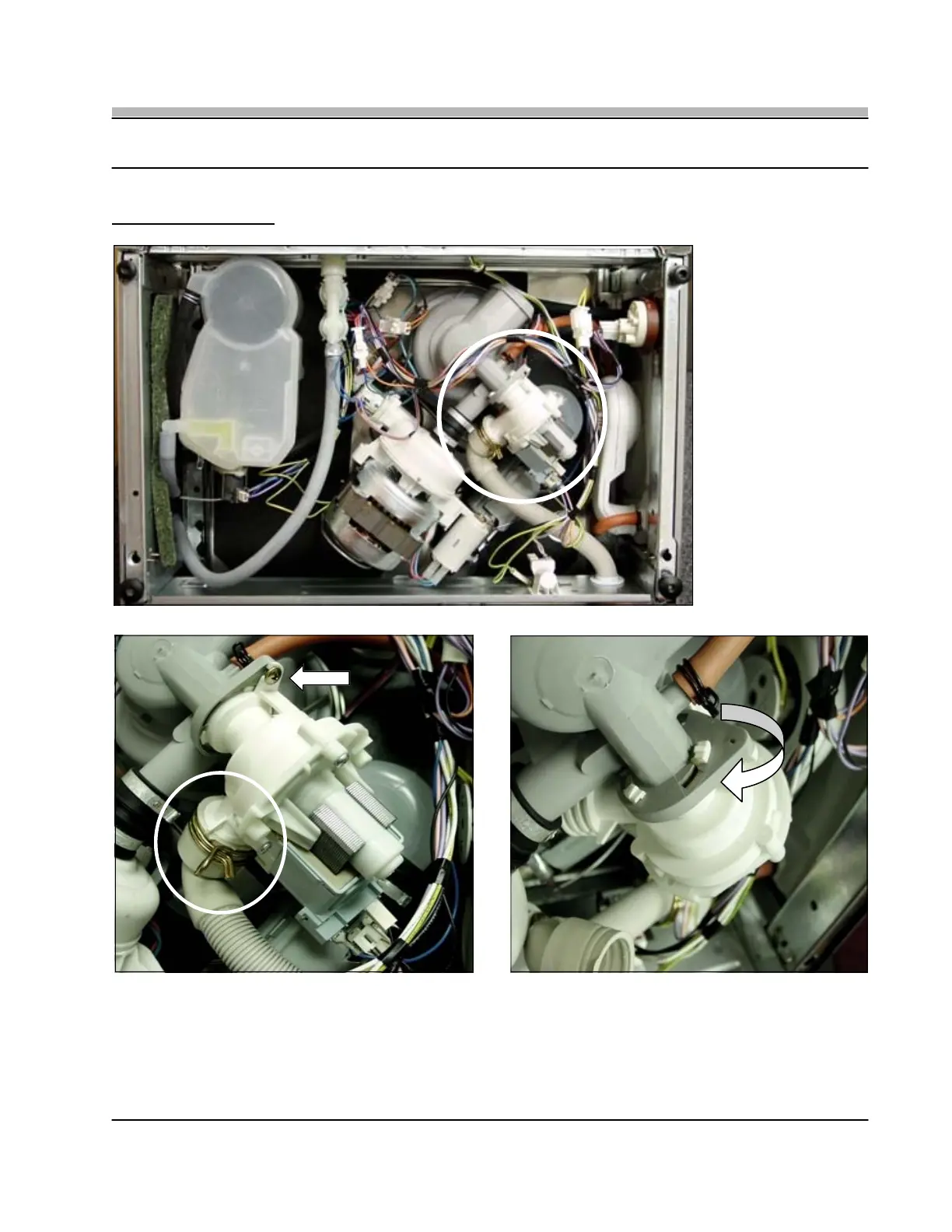

16. DRAIN MOTOR
Fig. 16-1
• To remove the Drain Motor (Fig. 16-1), first loosen the Drain Hose Clamp and Drain Hose, then remove the single Phillips
mounting screw. (Fig. 16-2). The Drain Motor is secured to the Sump using a tab and slot twist lock mount. With the Drain Hose
and mounting screw removed twist the Drain Motor Clockwise to remove (Fig.16-3).
TECH NOTE: For a better seal lubricate the new Drain Motor Gasket before installing, and make sure all three (3) Tabs are
secured into the corresponding slots, then twist the motor into position.
Fig. 16-2
Fig. 16-3
L 63 / LL 64 / LL 65
LI 640 / LI 670 / LI 700
