REPAIR MANUAL
Page: 3

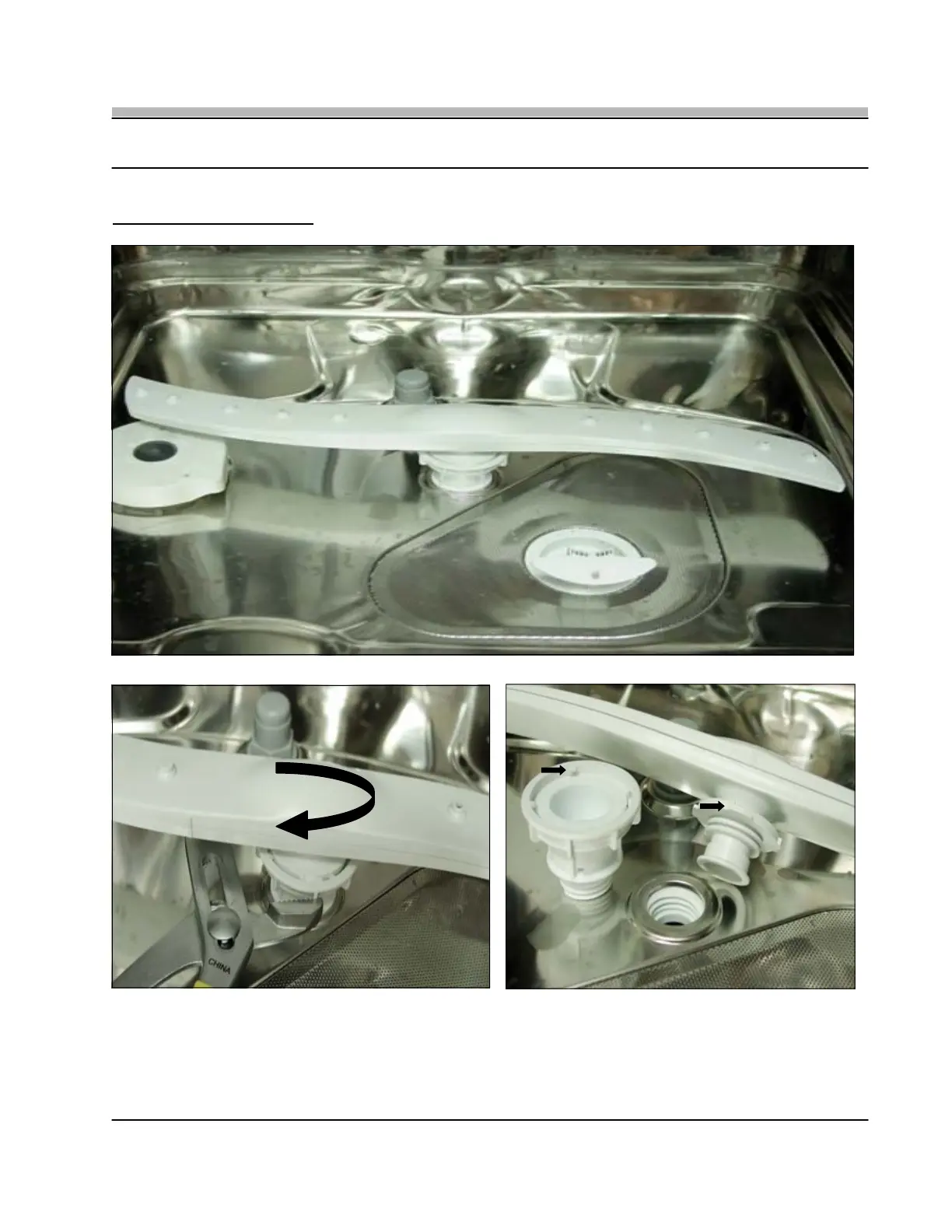

4. LOWER SPRAY ARM
• To remove the Lower Spray Arm (Fig. 4-1) hold the Spray Arm Locking Ring with a Channel Locks and then turn the Spray Arm
Clockwise (Fig. 4-2). The Locking Ring Assembly can also be removed by rotating it Counter-Clockwise; note the Tab and Slot
locking configuration (Fig. 4-3).
TECH NOTE: When Replacing the Spray Arm make sure that it is tightened completely onto the Locking Ring.
Fig. 4-3
Fig. 4-1
Fig. 4-2
L 63 / LL 64 / LL 65
LI 640 / LI 670 / LI 700
