Ariston LL 64 - Heater Assembly

REPAIR MANUAL
Page: 17
18. HEATER ASSEMBLY

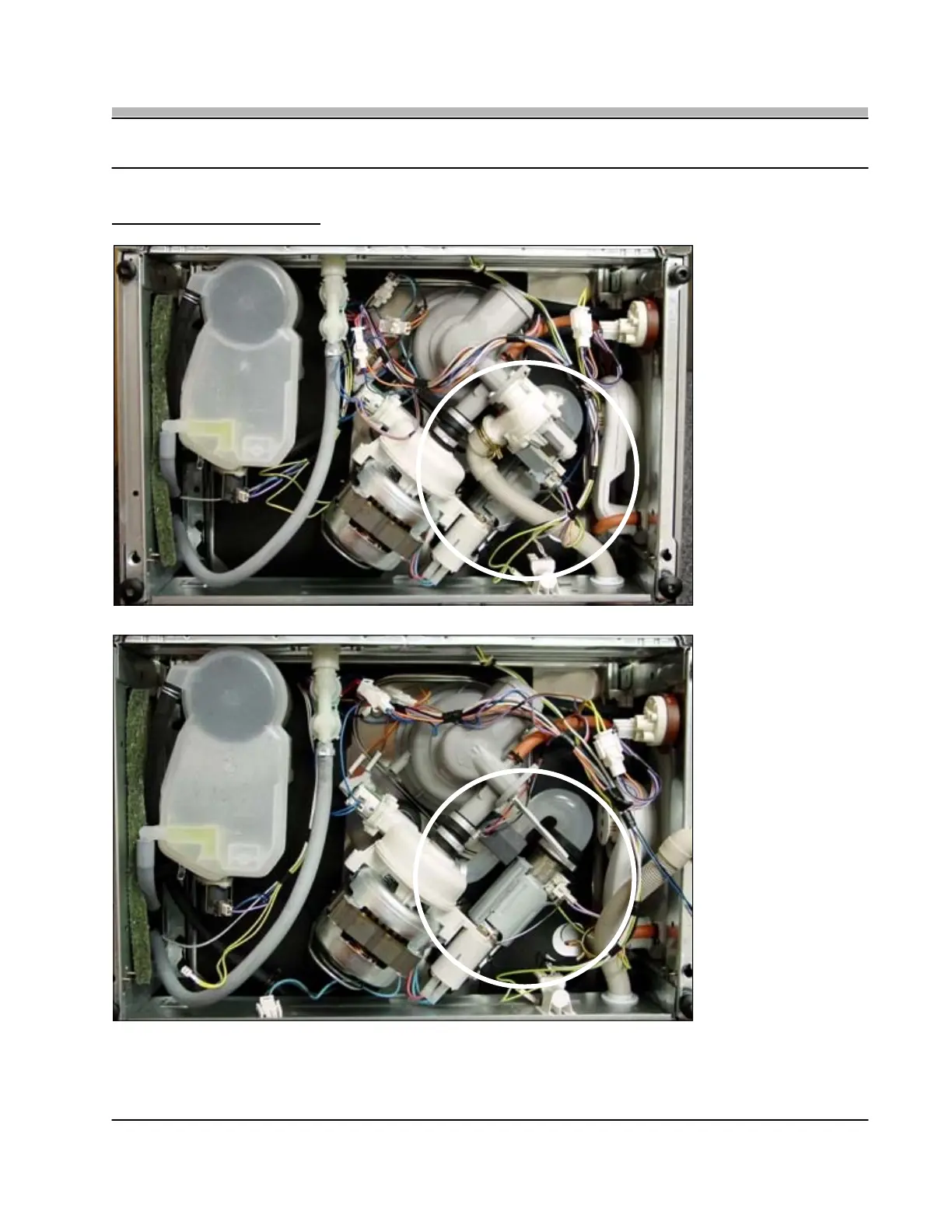

Fig. 18-1
• To remove the Heater Assembly, first remove the Drain Motor as described in Section 16 (Fig. 18-1). With the Drain Motor
removed you have full access to the Heater Assembly (Fig. 18-2).
Fig. 18-2
L 63 / LL 64 / LL 65
LI 640 / LI 670 / LI 700
