Ariston LL 64 - Lower Component Access - Base Pan Removal

REPAIR MANUAL
Page: 13
15. LOWER COMPONENTS

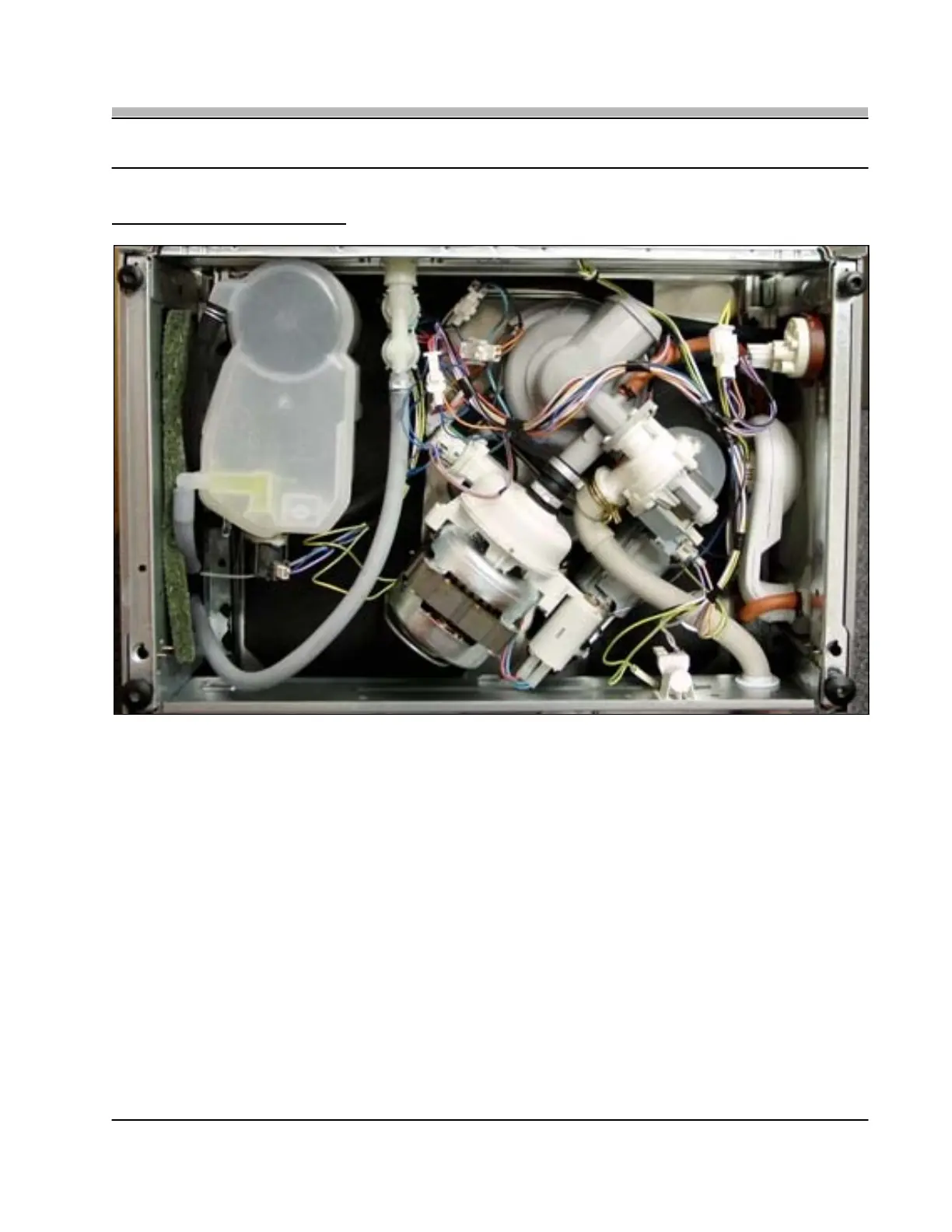

Fig. 15-1
• With the Bottom Pan removed you have access to the following components:
A: Water Softener.
B: Main Motor and Pump.
C: Heater.
D: Drain Motor.
E: Turbo Dry Fan Motor (only on the LL 65 / LI 700 Models).
A
B
D
C
E
L 63 / LL 64 / LL 65
LI 640 / LI 670 / LI 700
