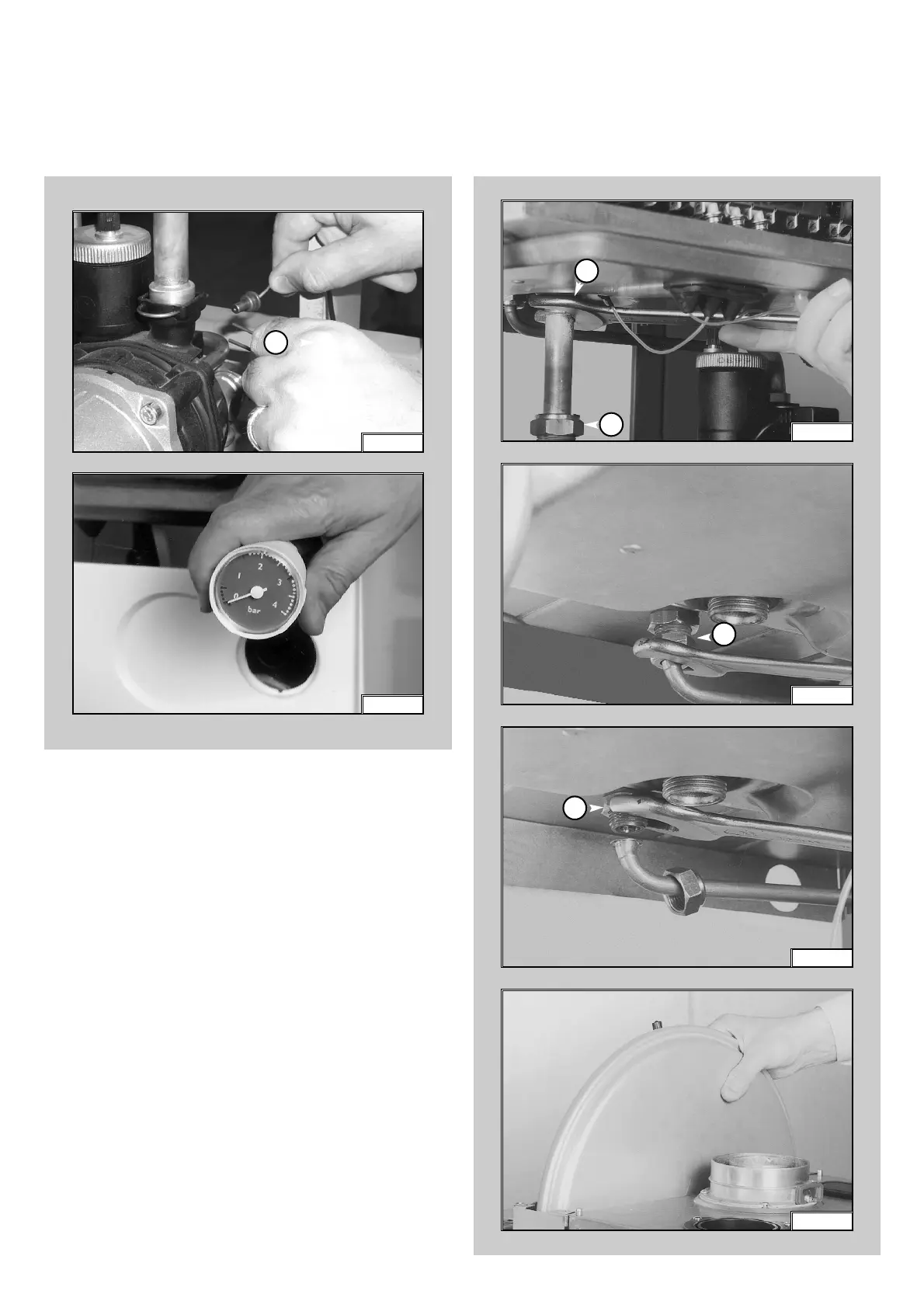

1.5.6 Removing the expansion vessel
1. Release nuts “H1” and remove the gas pipe (F
IG. 1.44);
2. Release nut “I1” (FIG. 1.45);
3. Remove lock-nut “J1” (FIG. 1.46);
4. Remove the expansion vessel (F
IG. 1.47).
1.5.5 Removing the pressure gauge
1. Remove the U-clip “G1” and remove the pressure gauge
coupling (F
IG. 1.42);
2. Push the pressure gauge through the control panel from
the rear (F
IG. 1.43).
FIG. 1.42
FIG. 1.44
G1
F
IG. 1.43
H1
I1
F
IG. 1.45
F
IG. 1.46
FIG. 1.47
H1
J1
