INSTALLATION GUIDE
Remove front bottom cover first, if it is attached.

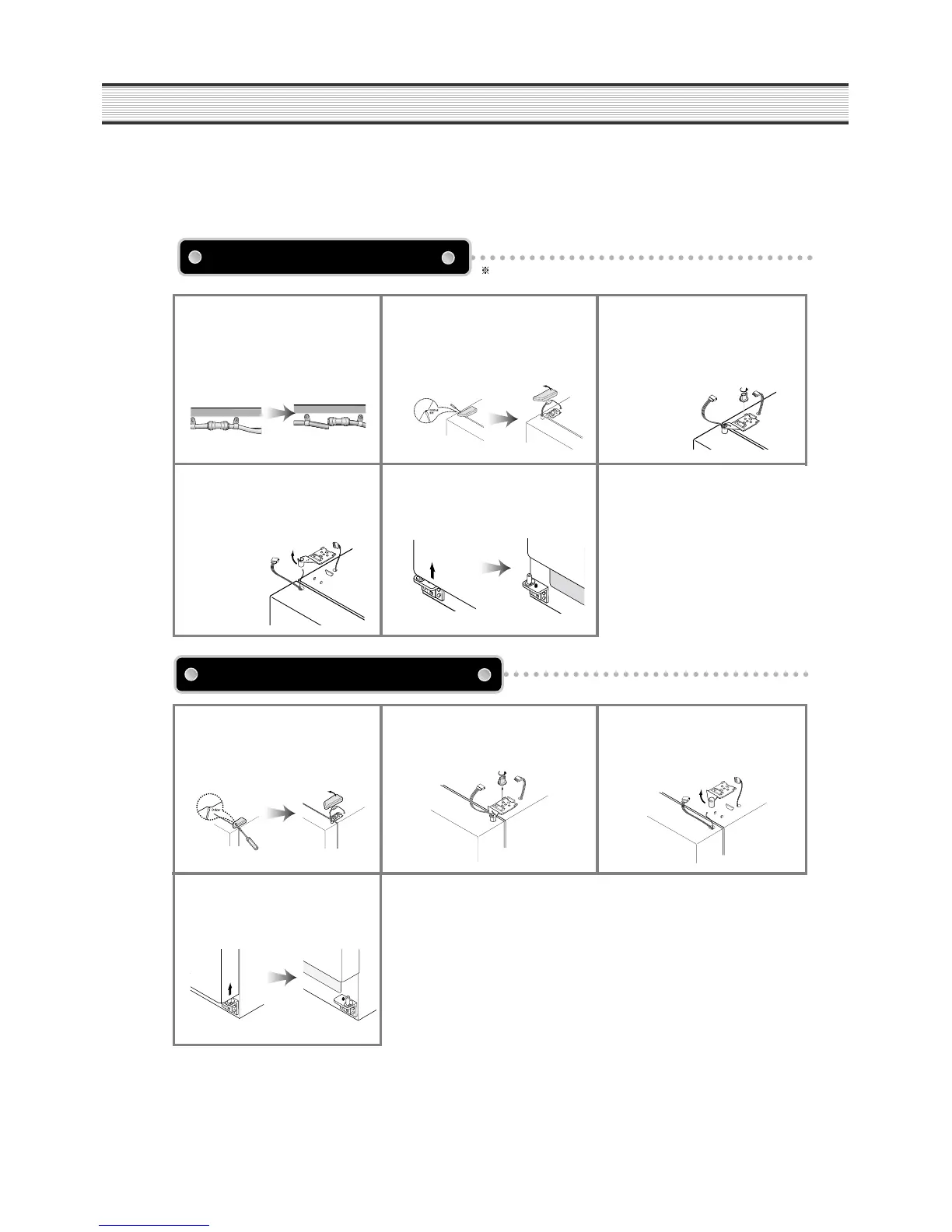

Removing Freezer Door
1
Remove the bottom cover first.
Pull out the left collar of the coupling
first, then hold the coupling and pull
out the left water tube.
3
Turn top hinge fastener
counterclockwise 3~4 times.
Disconnect the harness wires.
4
Lift up the front of hinge to remove.
( After the hinge is removed the
door can fall down forward. Be
careful !)
5
Be careful not to damage the water
line when removing the door.
2
Turn top hinge fastener
counterclockwise 3~4 times.
Disconnect harness wires.
1
Unscrew top hinge cover with a
screw driver.
Insert a thin screw driver into the
side groove of the cover to remove.
3
Lift up the front of hinge to remove.
(After the hinge is removed the door
can fall down forward. Be careful !)
4
Lift the door straight up to remove.
2
Unscrew top hinge cover with a
screw driver.
Insert a thin screw driver into the
side groove of the cover to remove.
Removing Refrigerator Door
6-2.
6-2. If the refrigerator can not enter the door
