Aritech 2X-A Series Installation Manual

Chapter 3: Configuration and commissioning
124 2X-A Series Installation Manual
There are three configurable time periods, as shown in the table below.
Table 66: Warning time, warning delay, and delay
Time period
Description
Warning time
The time from when the alarm is reported until the sounders activate
the evacuation tone (or the corresponding evacuation tone delay
starts to count down)
Warning delay [1]
The optional delay before the sounders activate the warning tone
Delay [1]
The optional delay before the sounders activate the evacuation tone
[1] To configure these values, see “
Sounder, fire routing, fire protection, and program output
group delays” on page 117.

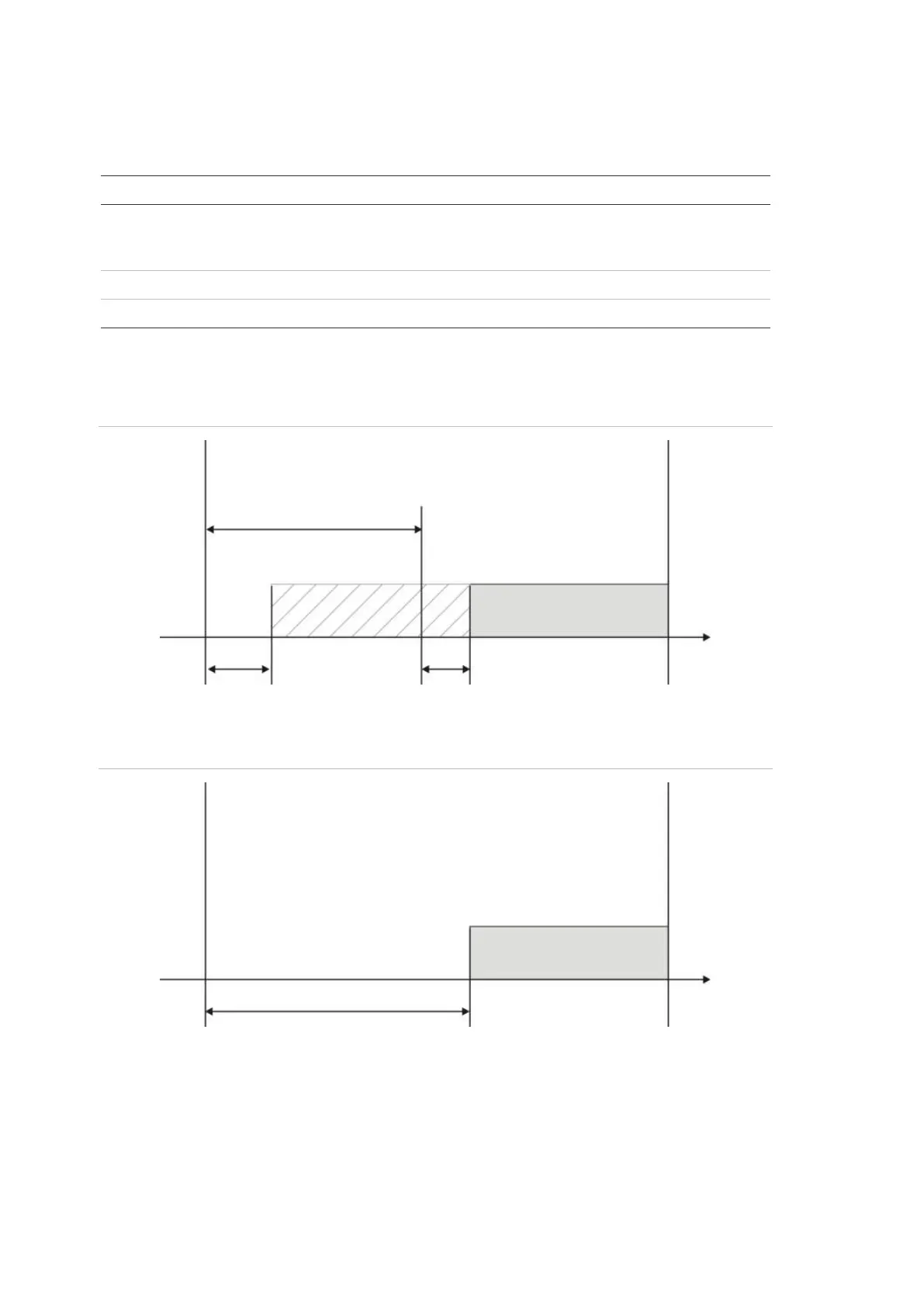

Figure 26: Detector alarm with second stage delay
Figure 27: Detector alarm with standard delay (no second stage)
Warning tone
Evacuation tone
Warning time (or
second stage delay)
Warning delay
Delay
Detector alarm
Reset
Time
Evacuation tone
Delay
Detector alarm
Reset
Time
