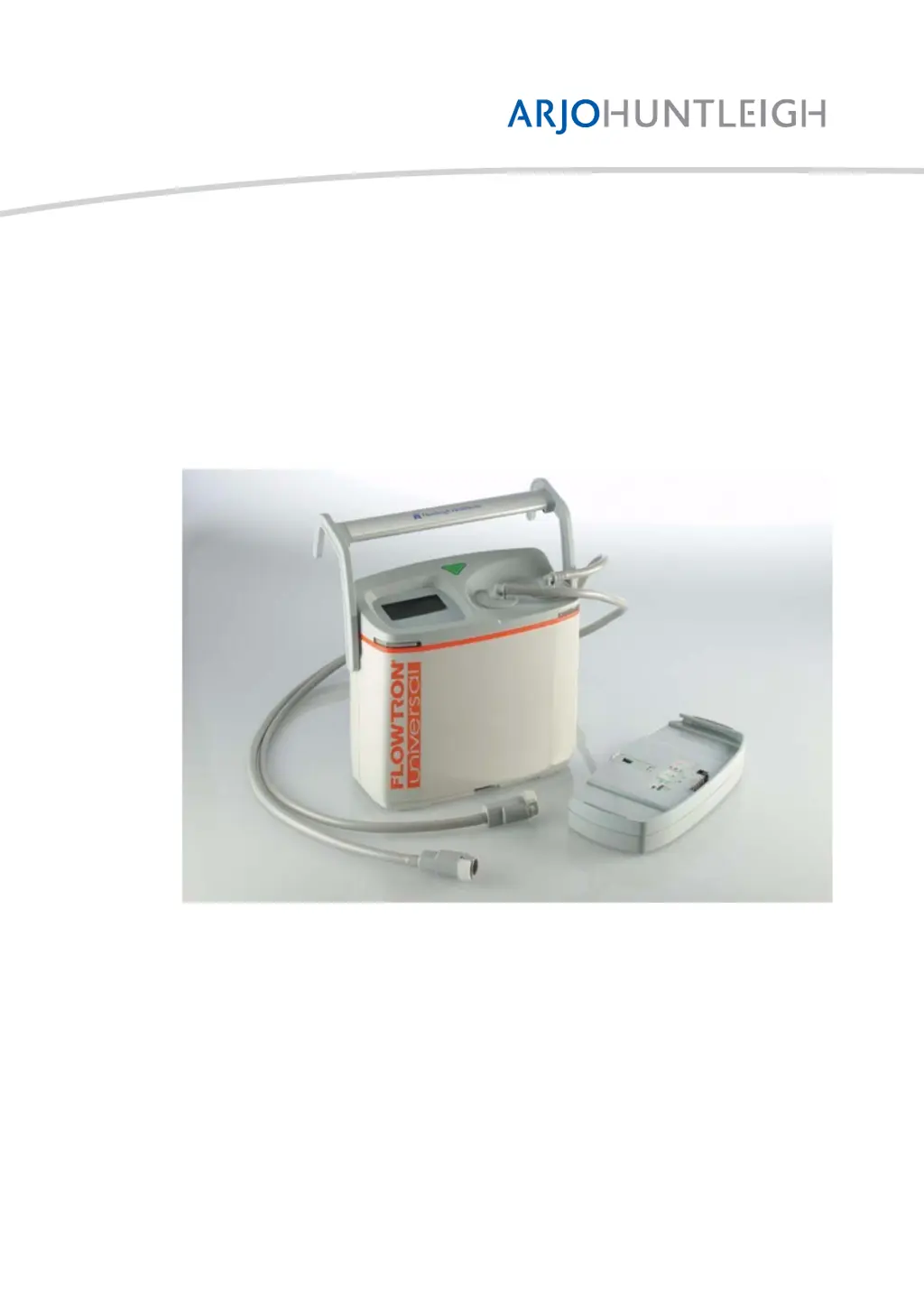

Intermittent Pneumatic Compression System
User Manual
Flowtron
®
Universal

Other manuals for Arjohuntleigh FLOWTRON UNIVERSAL

Questions and Answers

  • H
    hallangelaAug 20, 2025
    What to do if Arjohuntleigh Medical Equipment shows a "LO" (Low Pressure Alarm)?
    • E
      Elizabeth ParkerAug 20, 2025
      If the Arjohuntleigh Medical Equipment displays a "LO" (Low Pressure Alarm), it could be due to several reasons related to the garment or pump. First, check if the garment hose is disconnected or loosely fitted. Rewrap the garment snugly and inspect it for leaks, replacing it if needed. Also, inspect the tube for kinks or obstructions. Check internal tubes and replace if necessary. Check hose set assemblies, and replace if necessary. Replace inlet filters on the rear case and compressor assembly. It might also be caused by a kinked tube to the transducer on the control PCB, a damaged/disconnected internal tube, a damaged hose set assembly, blocked air filters, failure of the motor and manifold assembly, or a failure or low output from the compressor assembly.
  • J
    Joseph CervantesAug 22, 2025
    Why does my Arjohuntleigh FLOWTRON UNIVERSAL Medical Equipment show a "HI" (High Pressure Alarm)?
    • K
      Kelly RussellAug 22, 2025
      If the Arjohuntleigh Medical Equipment shows a "HI" (High Pressure Alarm), this may be due to a kink in the garment hose or the hose set assembly. Check the garment hose and hose set assemblies for any kinks or obstructions.
  • M
    Michael JacksonAug 25, 2025
    What to do if Arjohuntleigh Medical Equipment displays "Pump Fault - RFID"?
    • A
      Alyssa RomeroAug 25, 2025
      If the Arjohuntleigh Medical Equipment displays a "Pump Fault - RFID", it is likely that the hose set electrical connections are not correctly fitted to the pump. To resolve this, check the hose set assemblies and replace if necessary.
  • J
    Jeffrey HamiltonAug 26, 2025
    How to fix "Pump Fault - Step" on Arjohuntleigh FLOWTRON UNIVERSAL?
    • M
      Mr. Charles Ryan IIIAug 26, 2025
      If the Arjohuntleigh Medical Equipment displays a "Pump Fault - Step", it indicates that the motor and manifold assembly has failed. The suggested solution is to replace it.
  • R
    Rick MejiaAug 27, 2025
    What causes "Pump Fault" on Arjohuntleigh FLOWTRON UNIVERSAL Medical Equipment?
    • D
      Dana CareyAug 27, 2025
      If the Arjohuntleigh Medical Equipment displays a "Pump Fault", this could be due to a faulty Pump Control PCB or a faulty Power Supply PCB. The suggested solution is to replace the faulty component.
  • P
    Patricia SalinasAug 29, 2025
    What to do if Arjohuntleigh Medical Equipment pump fails?
    • D
      Dr. Johnathan WillisAug 30, 2025
      If your Arjohuntleigh Medical Equipment pump fails, stop using it immediately and refer to the service department for assistance.
  • B
    bmcgeeAug 31, 2025
    How to fix Arjohuntleigh Medical Equipment garment leak?
    • K
      Kimberly HarveyAug 31, 2025
      If the Arjohuntleigh Medical Equipment garment is leaking, examine the garment for any damage. If you find any faults, replace the garment.
  • C
    Carly ShafferSep 2, 2025
    What to do if Arjohuntleigh Medical Equipment garment disconnected?
    • T
      Tiffany StewartSep 2, 2025
      If the Arjohuntleigh Medical Equipment garment becomes disconnected, check the connection and reconnect it.
  • A
    Amy AlexanderSep 4, 2025
    How to fix kinked pump hose in Arjohuntleigh Medical Equipment?
    • M
      Matthew FergusonSep 4, 2025
      If the pump hose of your Arjohuntleigh Medical Equipment is kinked, resulting in a blocked tube, inspect the pump hoses for any kinks or obstructions. Remove any obstructions you find.
  • K
    Kevin CarterSep 6, 2025
    What to do if Arjohuntleigh Medical Equipment foot garment has come off patient during use?
    • S
      sarah49Sep 6, 2025
      If the foot garment of your Arjohuntleigh Medical Equipment comes off the patient during use, reapply the foot garment to the patient.

Summary

General Safety and Precautions

Safety Warnings

Highlights critical electrical hazards, misuse risks, flammable gases, and cable safety for the pump.

Precautions

Details user precautions for system operation, including liquid avoidance, fire risks, sunlight, cleaning, and garment compatibility.

Description and Operating Principle

Clinical Applications

Cautions & Contraindications

Cautions

Provides essential cautions regarding garment application, pressure points, patient monitoring, and specific patient conditions.

Contraindications

Lists conditions where the system should NOT be used, such as cardiac issues or acute DVT.

System Set up

Garment Application

Instructs on using the correct garment type as prescribed by a physician and following provided instructions.

General Guidelines and Recommendations

Offers guidelines on approved garments, patient limb checks, heel protection, and interaction with compression stockings.

System Operation

Single Garment Use

Dual Garment Use

Settings Adjustment

Troubleshooting

Options

Audio Alarm Volume

Describes how to adjust the audio alarm volume using the pump's function buttons and arrow keys.

Patient Hours Meter

Explains how to view and clear the patient hours meter using the pump's menu options.

Language Settings

Battery Operation

Connecting the Battery Pack

Guides on how to connect and remove the optional battery pack from the pump unit by engaging runners and latches.

Battery Pack in Use

Checking Battery Status

Recharging the Battery Pack

Alternative Charging Method

Warranty and Service

Warranty Details

Details the warranty terms for pumps and garments, and liability limitations for Huntleigh Healthcare.

Service and Returns

Cleaning Instructions

Ordering Information

Technical Data

Pump and Battery Specifications

Presents detailed specifications for the pump and battery pack, including dimensions, weight, and electrical ratings.

Pump Symbols

Environmental Conditions

Optional Battery Pack Information

Arjohuntleigh FLOWTRON UNIVERSAL Specifications

General IconGeneral
Therapy TypeIntermittent Pneumatic Compression (IPC)
Compression TechnologySequential Compression
Intended UsePrevention of Deep Vein Thrombosis (DVT)
Weight2.2 kg
Power Supply100-240V, 50-60Hz
AlarmsLow pressure
ApplicationHospital and Homecare
Cuff OptionsCalf and Thigh
PortabilityYes
CompatibilityCompatible with various cuff types
Cycle Time12 seconds inflation, 48 seconds deflation (nominal)
