Exclusive distributor of Rx100

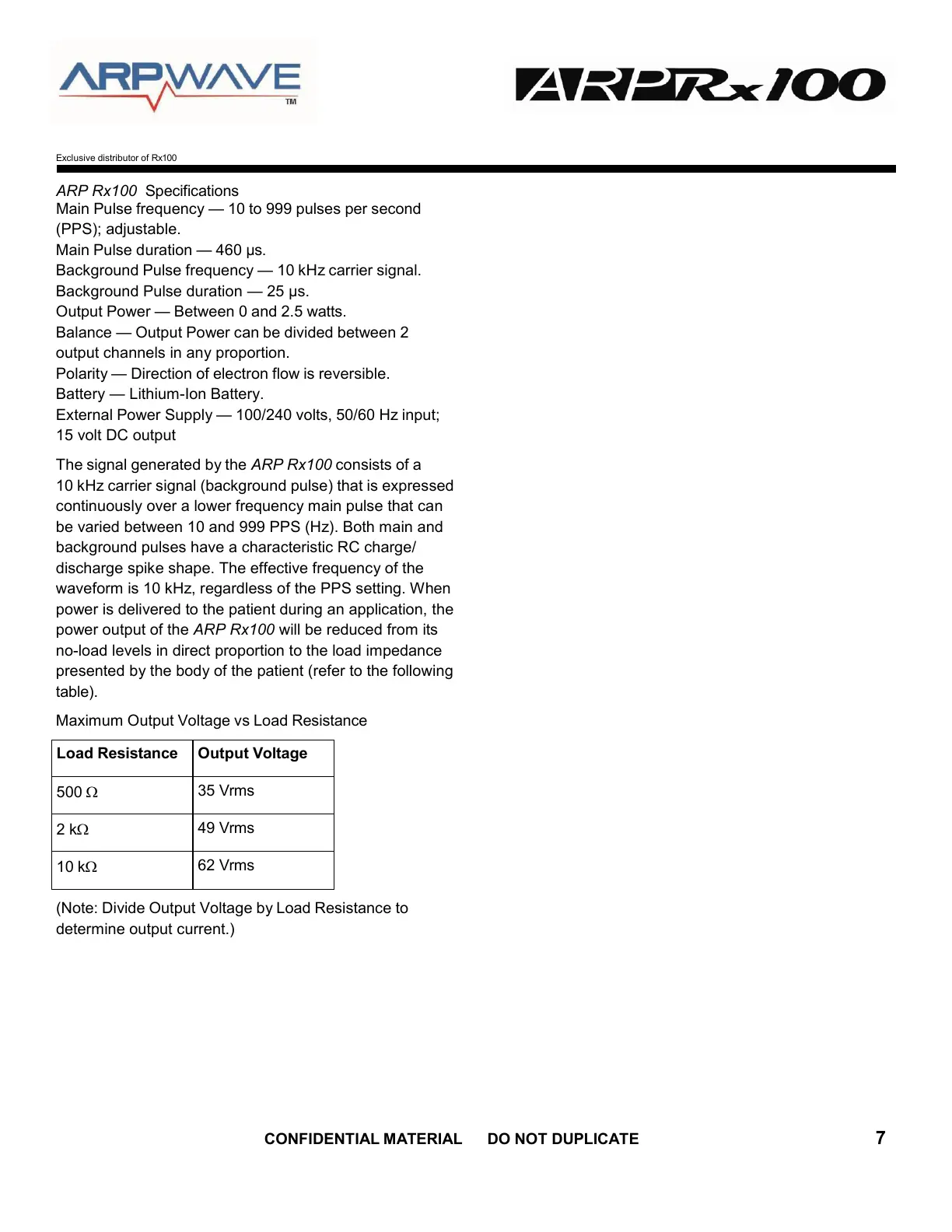

ARP Rx100 Specifications
Main Pulse frequency — 10 to 999 pulses per second
(PPS); adjustable.
Main Pulse duration — 460 µs.
Background Pulse frequency — 10 kHz carrier signal.
Background Pulse duration — 25 µs.
Output Power — Between 0 and 2.5 watts.
Balance — Output Power can be divided between 2
output channels in any proportion.
Polarity — Direction of electron flow is reversible.
Battery — Lithium-Ion Battery.
External Power Supply — 100/240 volts, 50/60 Hz input;
15 volt DC output
The signal generated by the ARP Rx100 consists of a
10 kHz carrier signal (background pulse) that is expressed
continuously over a lower frequency main pulse that can
be varied between 10 and 999 PPS (Hz). Both main and
background pulses have a characteristic RC charge/
discharge spike shape. The effective frequency of the
waveform is 10 kHz, regardless of the PPS setting. When
power is delivered to the patient during an application, the
power output of the ARP Rx100 will be reduced from its
no-load levels in direct proportion to the load impedance
presented by the body of the patient (refer to the following
table).
Maximum Output Voltage vs Load Resistance
(Note: Divide Output Voltage by Load Resistance to
determine output current.)
