Array electronic 3720A User Manual

47

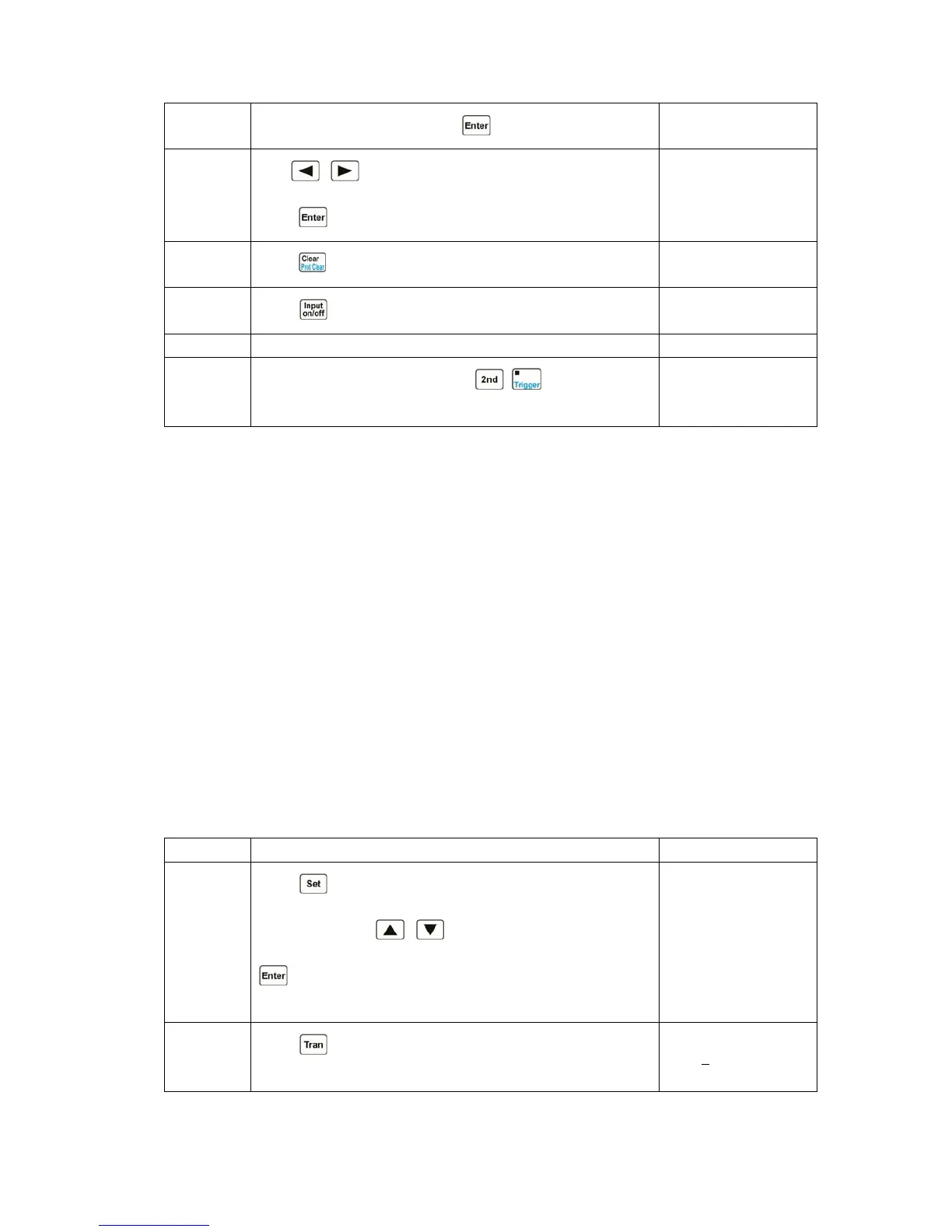

to set TimeF to 10ms, and press key to confirm.
9
Use
, keys or knob to set Mode value to pulse, and
press
key to confirm.
►Mode: ◄ Puls ►
10
Press
key to exit the transient operation menu.
0.000V 0.000A
1.000A
tCCH OFF
11
Press
key to turn on the load.
0.000V 0.000A
1.000A
tCCH ON
12 Send the command “INIT”or”INIT:CONT” to the load.
13
One trigger occurs when pressing
+ key or the signal
at the trigger input terminal (TRIG IN) is low level.
0.000V 0.000A
5.000A
tCCH ON
For the above operating procedures, the corresponding SCPI commands should be:
MODE CCH ；Sets the mode
TRAN ON ；Enables the transient operation
CURR:LOW 1 ；Sets a value to low level
CURR:HIGH 5 ；Sets a value to high level
TRAN:HTIME 200ms ；Sets a value to high level time
TRAN:RTIME 10us ；Sets a value to time for rising edge
TRAN:FTIME 10us ；Sets a value to time for falling edge
TRAN:MODE PULS ；Selects pulsed transient operation
INP ON ；Turns on the load
INIT ；Initialize the trigger
TRIG ；One trigger occurs
4.7.3 Toggled Transient Operation
Example 1: Assume that the load is in external triggering mode, set the load resistance value to
periodically switch between 200Ωand 500Ω; set the time for rising edge (TimeR) to 10ms; set time
for falling edge (TimeF) to 10ms; the load is in toggled transient operation, and a trigger occurs at this
time.
Procedures Operation Descriptions Display
1
Press
key to enter into the mode selection and parameter
setting menu; use
, keys to select CRH mode; press
key to confirm and exit the mode selection and parameter
setting menu.
0.000V 0.000A
20.000Ω CRH OFF
2
Press
key to enter into transient operation. The display
shows “t” to indicate in CRH status.
0.000V 0.000A
2000.0
Ω tCRH OFF
