see 4.5.2 section for detailed operations) 2.000V CV OFF
Step2
Press
key to enter into the main menu.
Load Default：
Yes *No
Step3
Use
key to select the menu item “CV Curr Limit”; use Entry
keys or the knob together with
, keys to input the
current limit value to 20A. Press
key to confirm.
CV Curr Limit：
20.000A
Step4
Press
key to exit the main menu.
0.000V 0.000A
2.000
A CCH OFF
Step5
Press
key to turn on the load.
0.000V 0.000A
2.000
A CCH ON
For the above operating procedures, the corresponding SCPI commands should be:
MODE CV ；Sets the mode
VOLT 2 ；Sets the current value to 2V
INP:LIM:CURR 20A ；Sets the current limit value to 20A in CV mode
INP ON ；Turns on the load

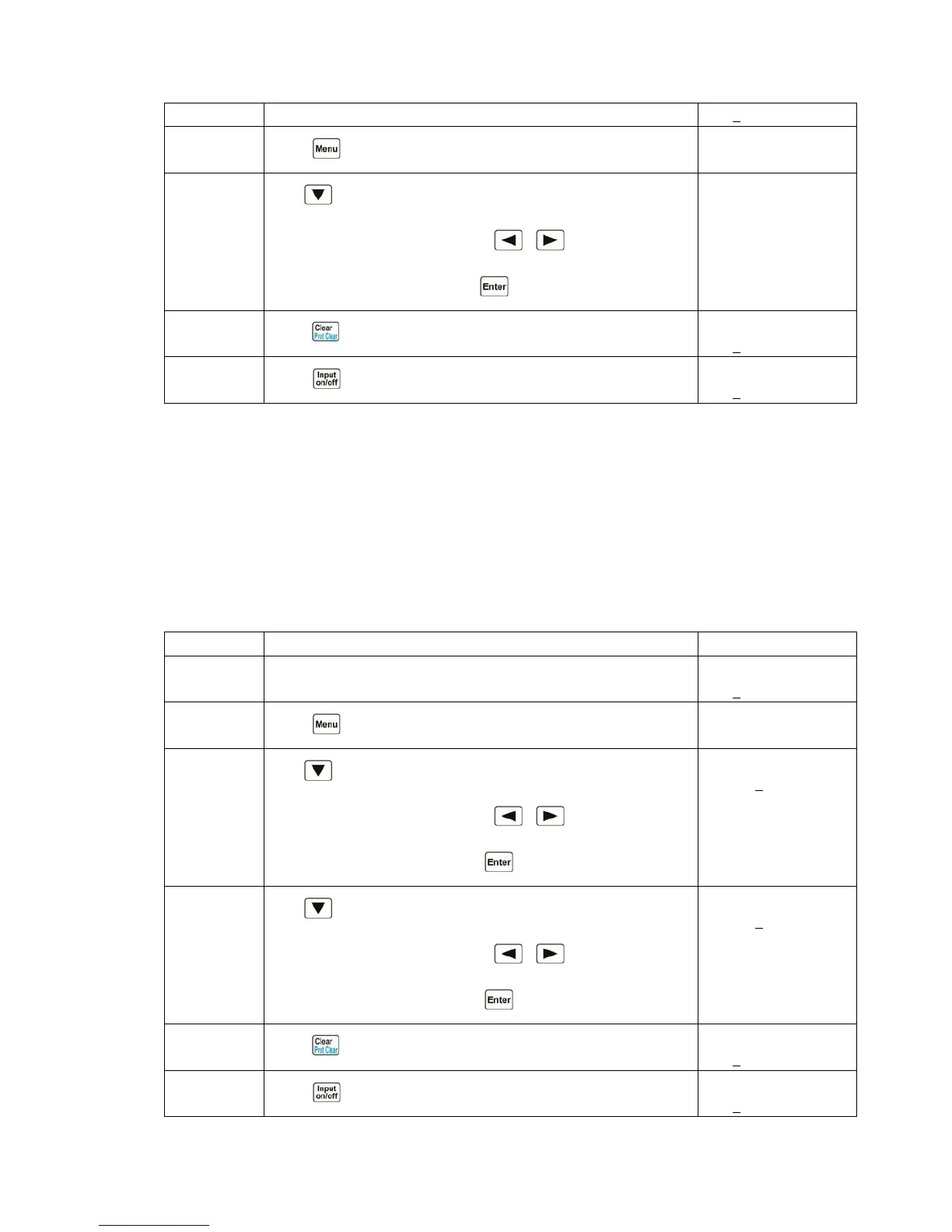

4.14.5 Current Rise/Fall Rate in CC Mode
Example: Set the load to CCH mode, set the current value to 2A; set the current rise rate (Curr
Rise Rate) in CC mode to 0.002A/us; set the current fall rate (Curr Fall Rate) in CC mode to
0.005A/us; turn on the load; turn off the load. The detailed operations are shown below:
Procedures Operation Descriptions Display
1 Set the load to CCH mode, and set the current value to 2A. 0.000V 0.000A
2.000
A CCH OFF
2
Press
key to enter into the main menu.
Load Default：
Yes *No
3
Use
key to select the menu item “Curr Rise Rate”; use Entry
keys or the knob together with
, keys to input the
current value to 0.002A/us. Press
key to confirm.
Curr Rise Rate：
0.002
A/us
4
Use
key to select the menu item “Curr Fall Rate”; use Entry
keys or the knob together with
, keys to input the
current value to 0.005A/us. Press
key to confirm.
Curr Fall Rate：
0.005
A/us
5
Press
key to exit the main menu.
0.000V 0.000A
2.000
A CCH OFF
6
Press
key to turn on the load.
0.000V 0.000A
2.000
A CCH ON
