Array electronic 3720A User Manual

63
or key to select the parameter “On”. Press key to
confirm.
3
Press
key to exit the main menu.
0.000V 0.000A
0.000
A CCH OFF
4.14.9 Communication Interface

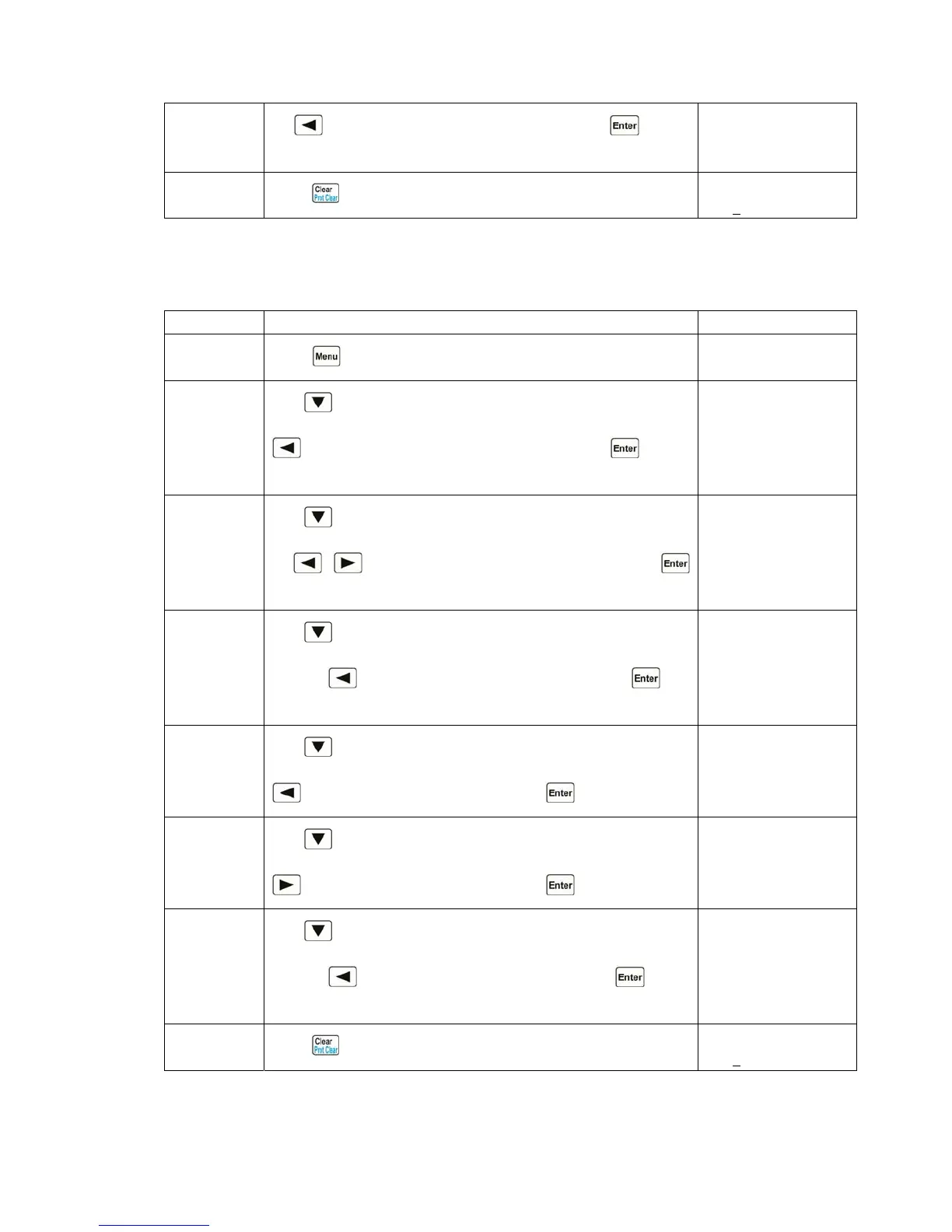

Example 1: Select RS232 interface; set the baut rate to 9600; set parity check to None; set data bit
to 8; set stop bit to 2; enable the flow control.
Steps Operation Descriptions Display
Step1
Press
key to enter into the main menu.
Load Default：
Yes *No
Step2
Use
key to select the menu item “Interface”; use the knob or
key to select the parameter “RS232”. Press key to
confirm.
Interface：
*RS232 USB GPIB
Step3
Use
key to select the menu item “Baud Rate”; use the knob
or
, keys to select the parameter “9600”. Press
key to confirm.
Baud Rate：
*9600 19200
Step4
Use
key to select the menu item “Parity Check”; use the
knob or
key to select the parameter “None”. Press key
to confirm.
Parity Check：
*None Even Odd
Step5
Use
key to select the menu item “Data Bit”; use the knob or
key to select the parameter “8”. Press key to confirm.
Data Bit：
*8 7
Step6
Use
key to select the menu item “Stop Bit”; use the knob or
key to select the parameter “2”. Press key to confirm.
Stop Bit：
1 *2
Step7
Use
key to select the menu item “Flow Control”; use the
knob or
key to select the parameter “On”. Press key to
confirm.
Flow Control：
*On Off
Step8
Press
key to exit the main menu.
0.000V 0.000A
0.000
A CCH OFF
Example 2: Select GPIB interface, set the address to 18.
