50
operating procedure 9.

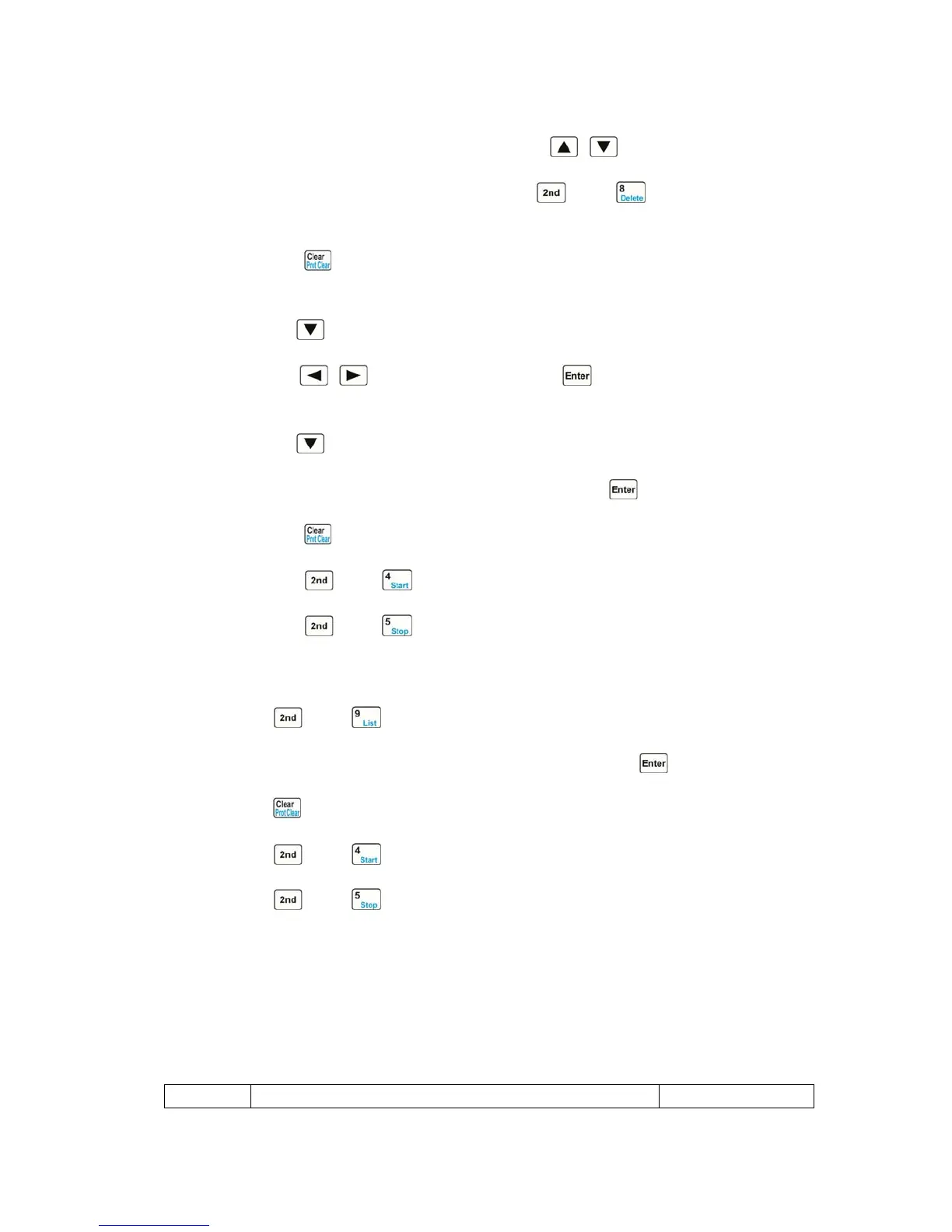

13. If it is needed to delete an edited step, use
, keys to select this step. The
LCD display will stop flashing, and press
key + key to delete. If there is
only one step exists, it will exit the step edit screen.
14. Press key to exit step edit screen, and save the sequence data in EEPROM
assigned by the sequence number.
15. Use key to select the cycle times (Count); use Entry keys or the knob together
with
, keys to input set value. Press key to confirm and save the cycle
times (Count) in EEPROM assigned by the sequence number.
16. Use key to select “Chain”; use Entry keys (the “Chain” is OFF when the Entry
key exceeds 6) or the knob to input the set value. Press
key to confirm.
17. Press key to exit sequence operation menu.
18. Press key + key to activate sequence operation.
19. Press key + key to stop sequence operation.
After sequence editing, the operating procedures for enabling and disabling sequence operation
are shown as below:
1. Press
key + key to enter sequence operation menu.
2. Use Entry keys or the knob to select list number (No.), and press
key to confirm.
3. Press key to exit sequence operation menu.
4. Press
key + key to activate sequence operation.
5. Press
key + key to stop sequence operation.
4.8.1 List Editing
Example 1: Edit a new sequence. The sequence number is 0; the sequence Memo is Test Power;
the sequence steps: step1: CCL, 1A, 1S; step2: CCH, 2A, 1S; step3: CV, 1V, 1S; step4: CRL, 1Ω,1S;
step5: CRH, 200Ω,1S; the cycle times (Count) for sequence operation is 5; disabling the sequence
chain; starting sequence operation; stopping sequence operation.
Procedures Operation Descriptions Display
