ARRI L7 - Fixture Menu Operations; Display and Control Panels

Fixture Menu
18
Fixture Menu

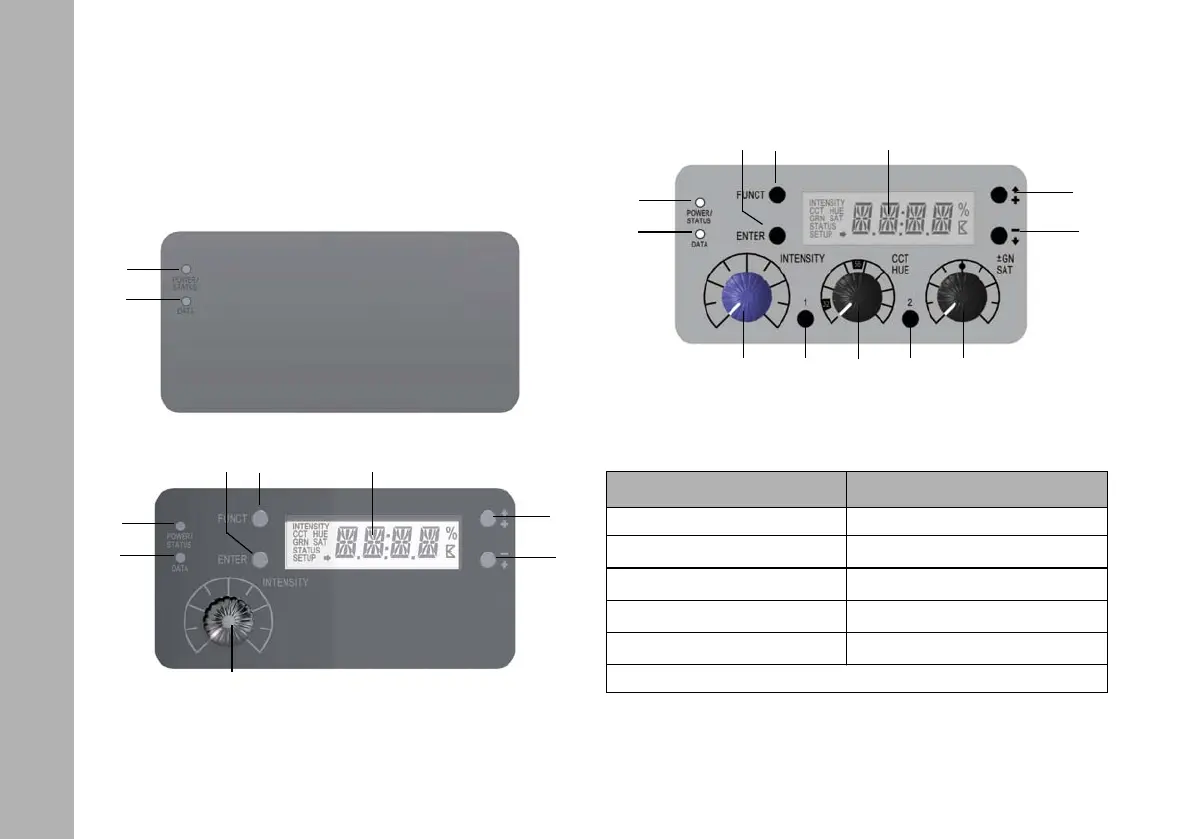

Depending on the model, the L7 is equipped with one of the fol-
lowing display or control panels:
Simple display field
Fixture menu with LC display and dimmer knob
Fixture menu with LC display, dimmer knob and color
control
Features of the fixture menu
Status indicator POWER/STATUS (1):
1
2
1
2
3
4
5
6
9
12
Color Indication
Green Fixture switched on. No error.
Red flashing (0,5s rhythm)
*
Warning fixture over temperature
Red
*
Fixture over temperature
Change from red to green
*
Fixture normal temperature
Red flashing (0,25s rhythm)
*
Calibration data not loaded
*Display lights up red when STATUS-LED is lit red
