ARRI M18 - Base Group & Ignitor; Removing Base Group and Ignitor

M18 – Service Manual Page 14 of 19
Base Group & Ignitor

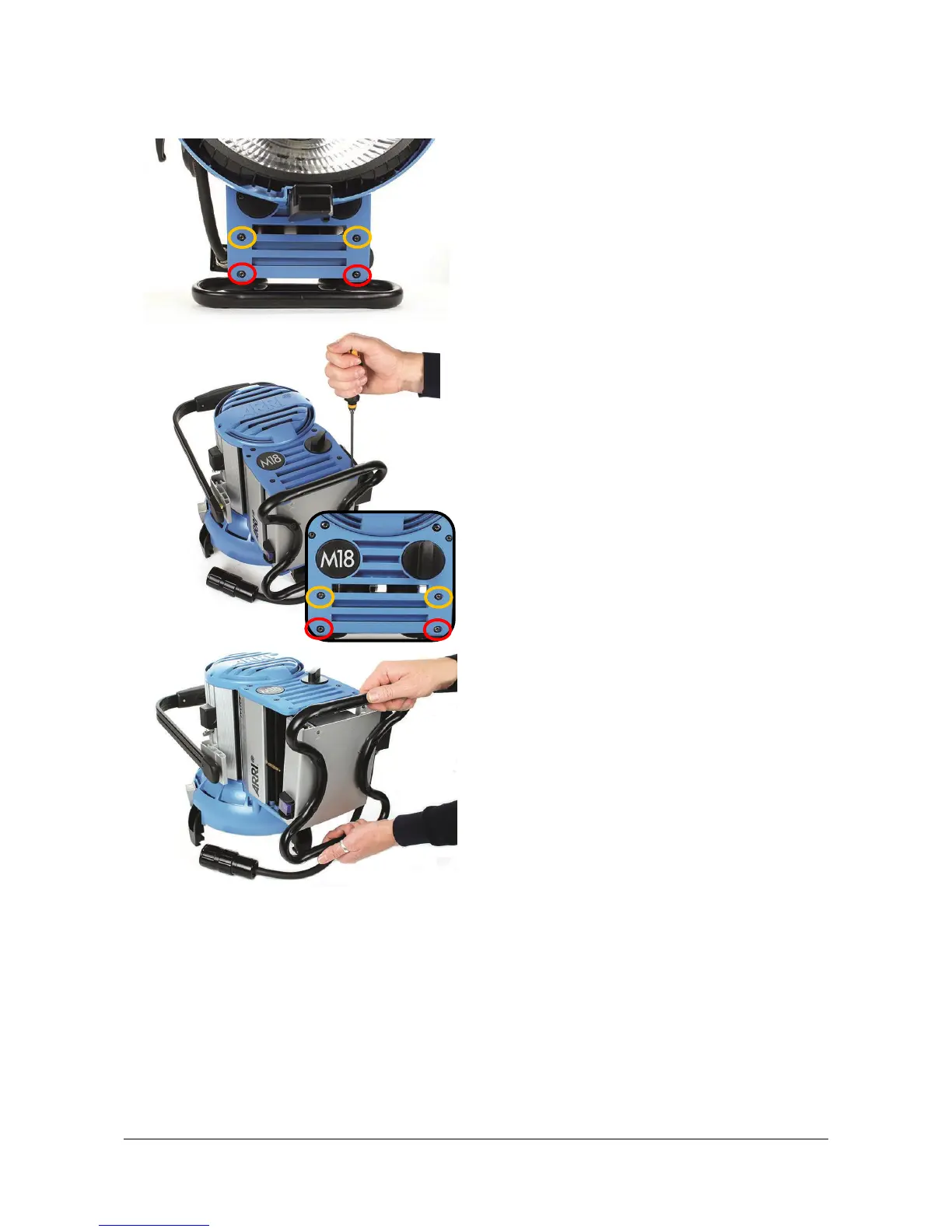

Remove the 2 screws on the bottom/front
(marked in red.)
Loosen the 2 middle screws (marked in yellow.)
Do not remove.
Place the lamphead face down with the skid
facing towards you.
Remove the 2 screws on the bottom/back
(marked in red.)
Loosen the 2 middle screws (marked in yellow.)
Do not remove.
Tip: Loosening the screws helps to get a bigger
gap in the blue housing to remove the ignitor
assembly.
Pull out the electronic box towards you to
remove.
