ARRI M18 - Safety Switch Activator & Door Latch (SSA); Removing the Safety Switch Activator

M18 – Service Manual Page 9 of 19
Safety Switch Activator & Door Latch (SSA)

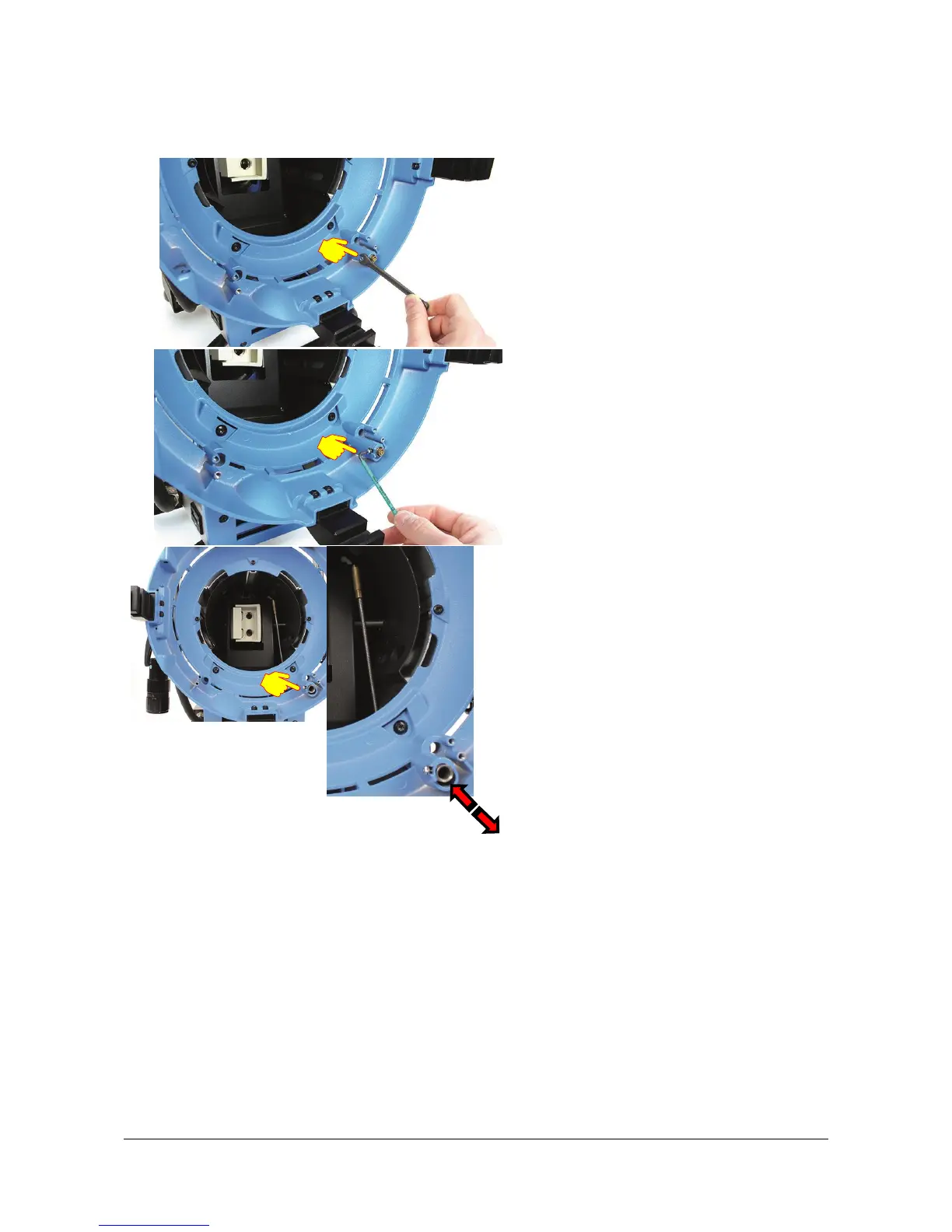

To Remove the Safety Switch Activator
Loosen the 5.5 mm nut as shown (do NOT
remove.)3573
Loosen the worm screw with a 1.5 mm
Allen Key, carefully! This can break easily.
NOT remove, simply loosen until the safety
switch activator is loose.
The SSA can now be moved forwards or
backwards.
