M18 – Service Manual Page 6 of 19
Lens Holder & Safety Glass

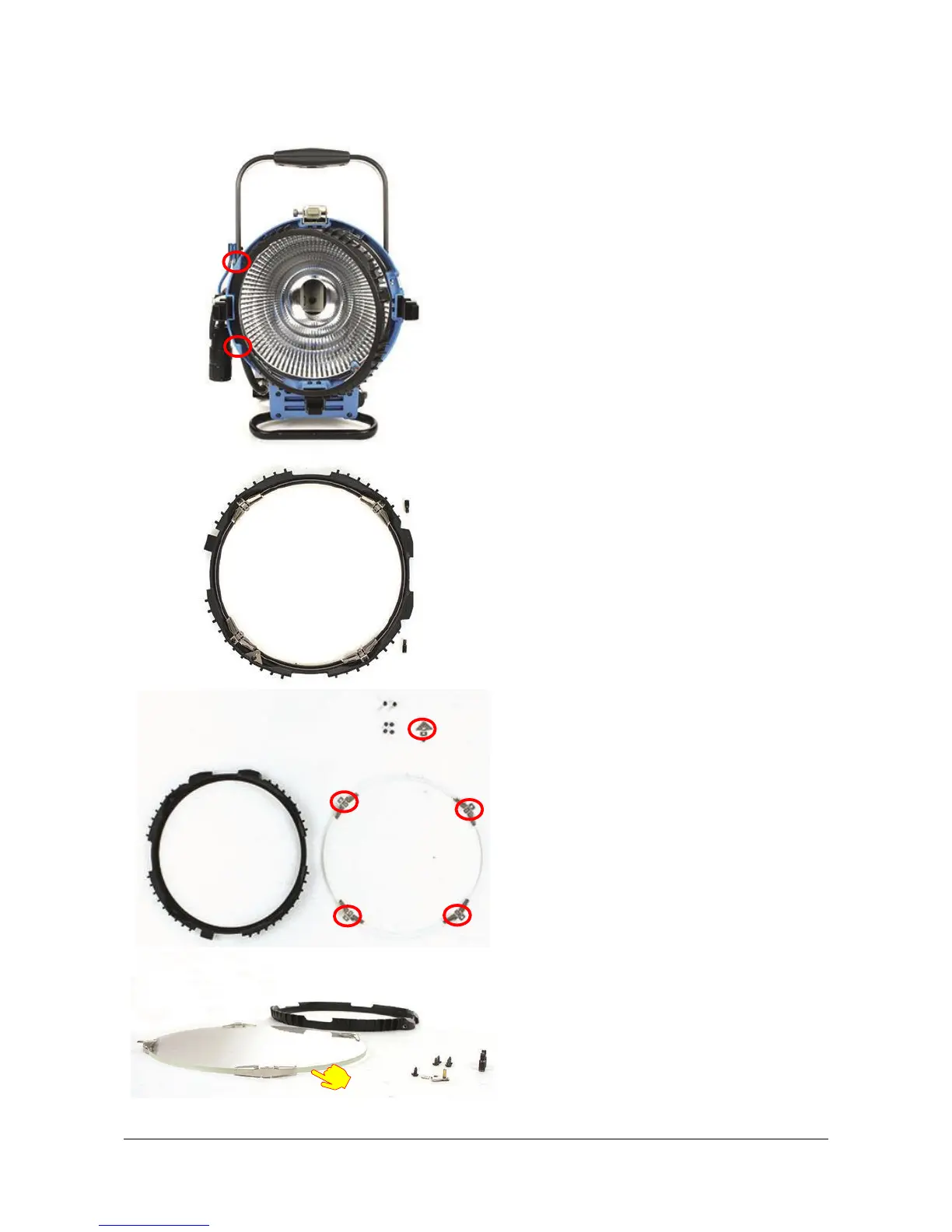

Loosen and remove two screws (Torx 10) to
remove the lens door from the housing.
Note: Please carefully set down the lens door
to avoid damaging the glass. This is an
opportunity to properly clean the glass using a
standard glass cleaner and a soft cloth.
Remove 4 screws (Torx 10) on the lens springs
and 1 screw (Torx 10) on the safety switch
activator pin.
Note: Pay close attention to the position of the
lens door springs.
Note: Remember when ordering the glass there
are two pieces of glass per lens door.
