VIP2262 Installation Guide 3
Rear Panel

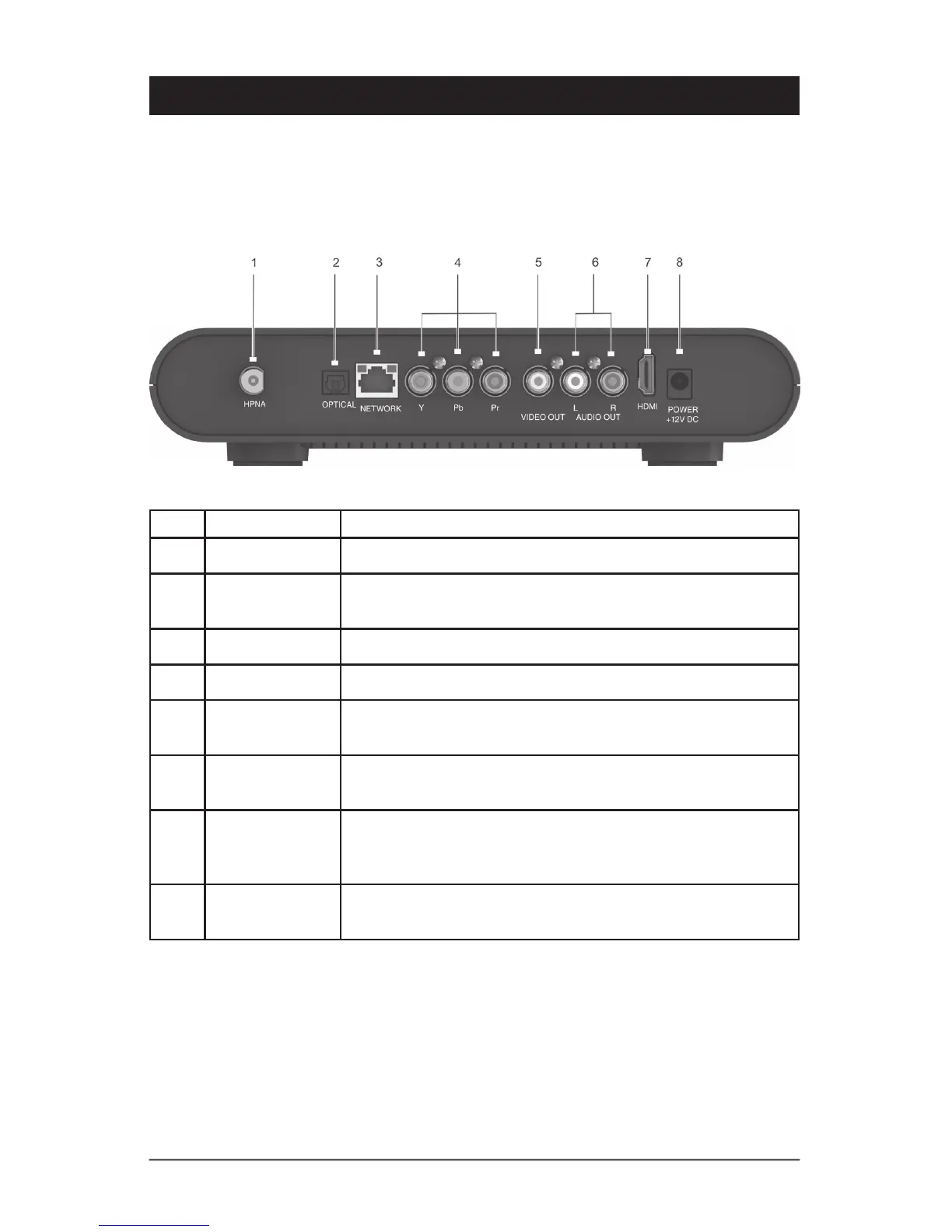

The rear-panel components of the VIP2262 are shown in the following illustration and
described in the table below.
Key Item Function
1 HPNA Coaxial input for digital signal from your service provider
2 OPTICAL Toslink (S/PDIF) digital audio output to a compatible TV or
home theater receiver
3 NETWORK Ethernet 10/100Base-T RJ-45 port for IP video input
4 Y, Pb, Pr Analog HD component video outputs to an HDTV
5 VIDEO OUT Baseband (Standard Definition) video output for connection
to a TV, VCR, or other device
6 AUDIO OUT
R and L
Left and right stereo audio outputs
7 HDMI™ Connects to a High Definition TV or home theater receiver
with an HDMI input (for a DVI input, use an HDMI-to-DVI
adapter)
8 POWER
+12 VDC
Connector for the DC power adapter
