The gables go on top of the front and
rear walls to support the roof beams.
NOTE
The gables are packed nested
together and might be mistaken
as one piece. Carefully separate
them before continuing.

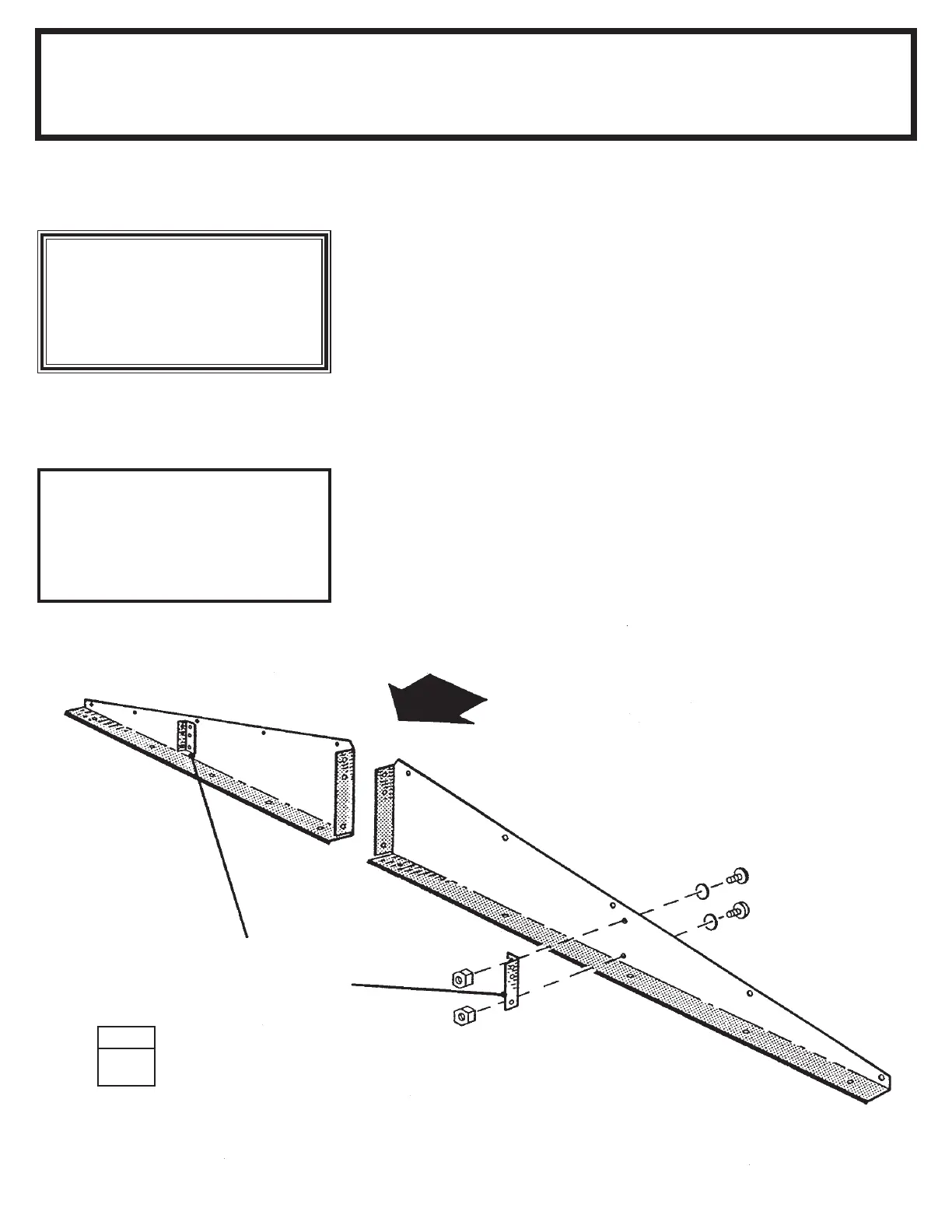

1 Attach the four roof beam
brackets to the gables using two
bolts, washers and nuts.
NOTE
Mounting leg of bracket must
face toward center of gable
and holes closest together
must be on top
● Parts Needed For ●
Gable Assemblies
Step 10
A23
●●
●●
● 6000 Right Gable (2)
●●
●●
● 6001 Left Gable (2)
●●
●●
● 5971 Roof Beam Bracket (4)
STEP
1
5971
Roof Beam Brackets
Washer
6001
6000
FRONT
To Next Page
