Arrow HM10867 - Gable and Brace Installation; Fastening Gables to Structure; Joining Gables with Brace; Front Gable Installation

● Parts Needed For ●
Gables/Braces
Step 11
A24
●●
●●
● Left Gable Assemblies (2)
●●
●●
● Right Gable Assemblies (2)
●●
●●
● 6635 Gable Brace (2)
24

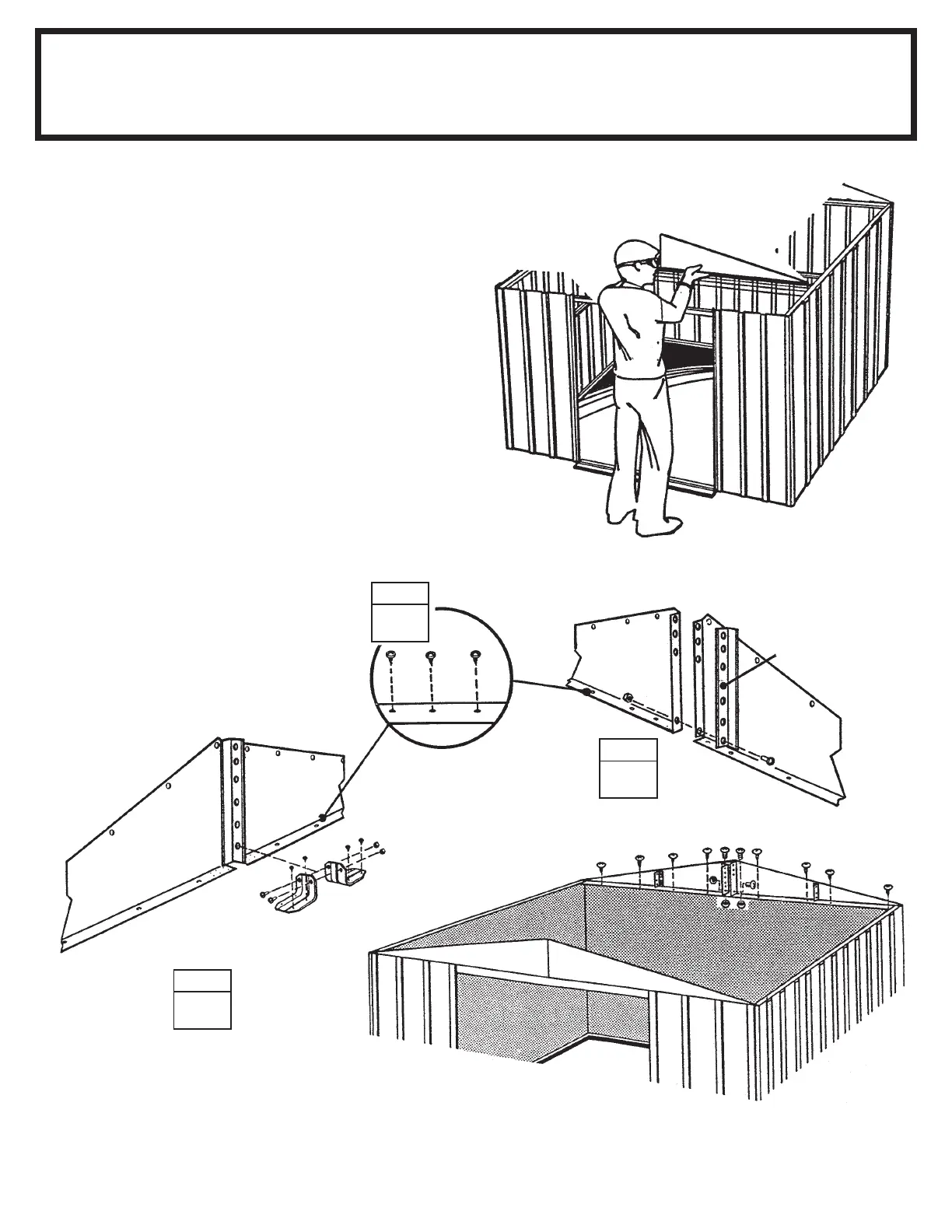

1 Lift and fasten a right and left
gable, under angle at corner, to the
door track and rear wall angle with
screws.
Hint: On the rear gable, use a bolt
and nut at the overlapping rear wall
angle. On the front gable, leave out 2
screws closest to center gable leg.
2 Join the left and right gables
together with a gable brace using a
bolt and nut in the bottom hole only.
3 Repeat Steps 1 & 2 for the door
track on the front of building, except
for the track supports, fasten as
shown.
STEP
3
Track Supports 6228
STEP
1
Gable
STEP
2
6635 Gable Brace
