Arrow HM10867 - Roof Beam Placement; Main Roof Beam Installation; Single Roof Beam Installation

25
Step 12
A25
● Parts Needed For ●
Roof Beams
●●
●●
● Main Roof Beam (1)
●●
●●
● Single Roof Beam (2)

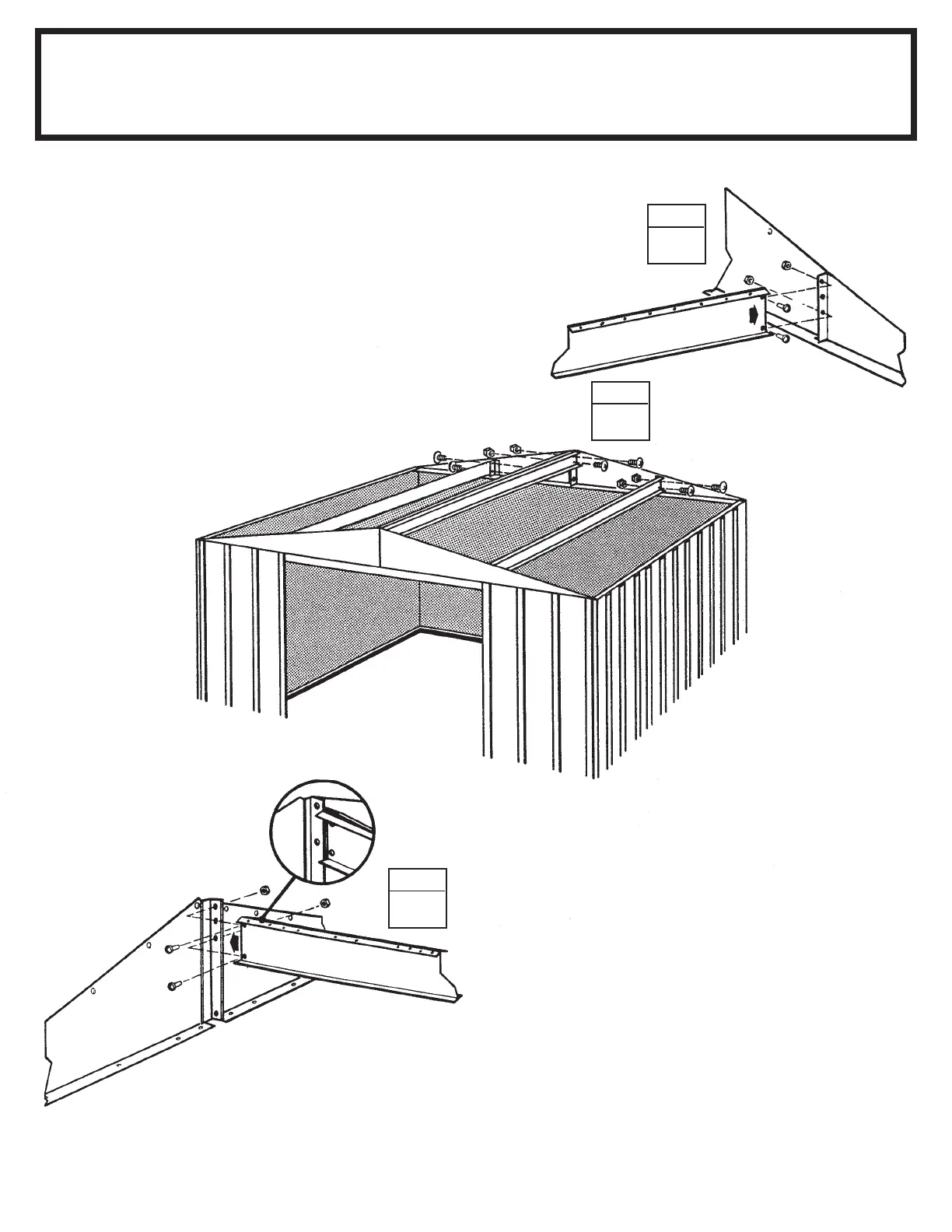

1 Spread the two halves of the main
roof beam and fasten the roof beam
to the gable brace of the front gable.
2 Fasten the other end of the main
roof beam to the gable brace of the
rear gable.
3 Fasten the single roof beams,
small holes on top, as shown using
bolts and nuts.
STEP
1
Spread Two Halves
Of Roof Beams
STEP
3
Single Roof Beam Assembly
STEP
2
Main Roof Beam Assembly
