6 AP-270 Series Outdoor Access Point | Installation Guide
AC Power Interface
The AP-270 Series is capable of AC power in the range of 100 - 240 VAC. The power cord or power
connector kit is sold separately.
Grounding Point
Always remember to protect the AP by installing grounding lines. The ground connection must be complete
before connecting power to the AP enclosure.

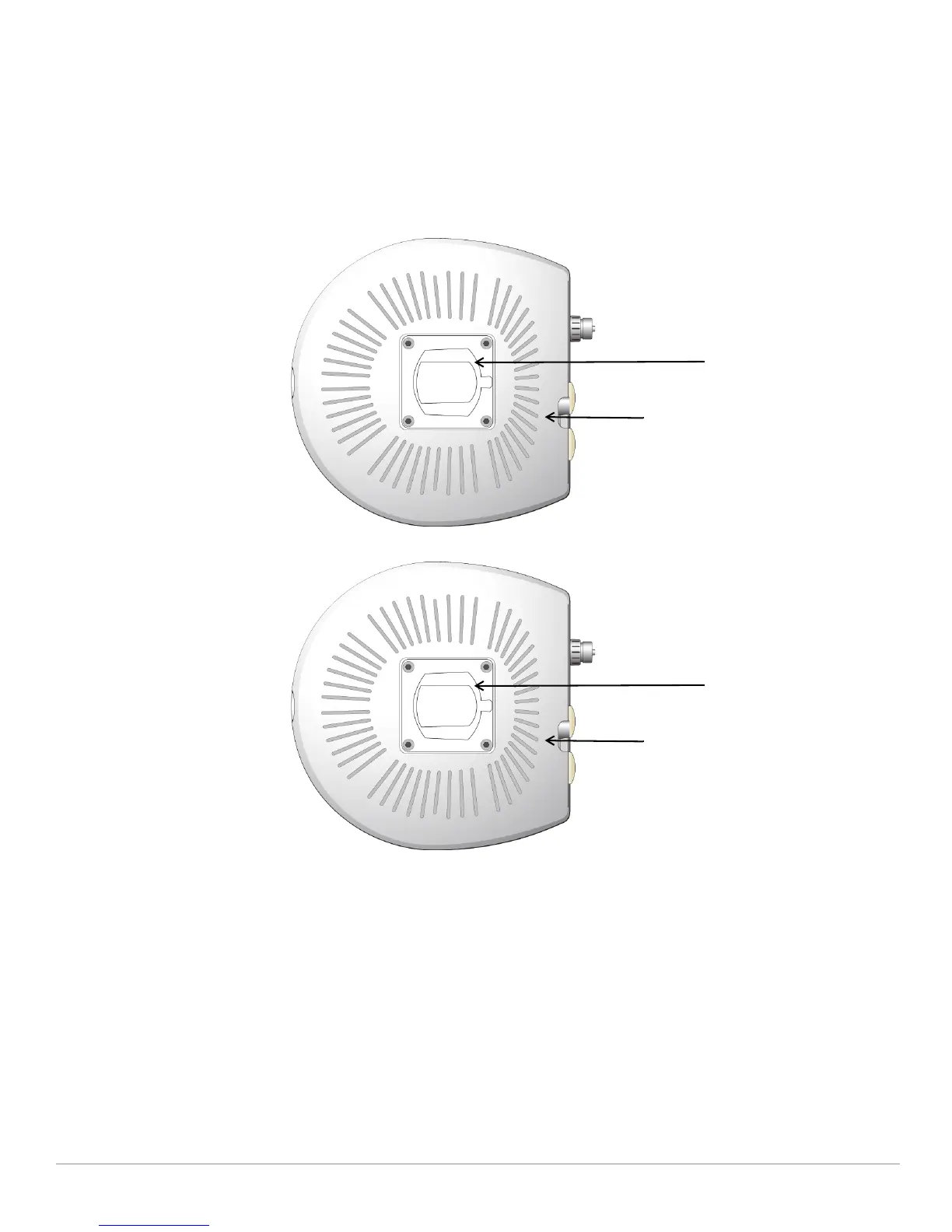

Figure 6 AP-275 Top View
Figure 7 AP-274 Top View
At the top of the AP-270 Series, the solar shield with the mounting holder is fixed onto the AP before
shipping from the factory.
Solar Shield
Mounting Holder
Solar Shield
Mounting Holder
