Aruba 330 Series Access Points | Installation Guide 7
Using the Ceiling Rail Adapter
The 330 Series ships with ceiling rail adapters. Additional wall mount adapters and ceiling rail adapters for other
rail styles are available as accessory kits.
Use the steps in this section to install the 330 Series access point.
1. Pull the necessary cables through a prepared hole in the ceiling tile near where the access point will be
placed.
2. Place the adapter against the back of the access point with the adapter at an angle of approximately 30
degrees to the tabs. See Figure 7.
3. Twist the adapter clockwise until it snaps into place in the tabs. See Figure 7.

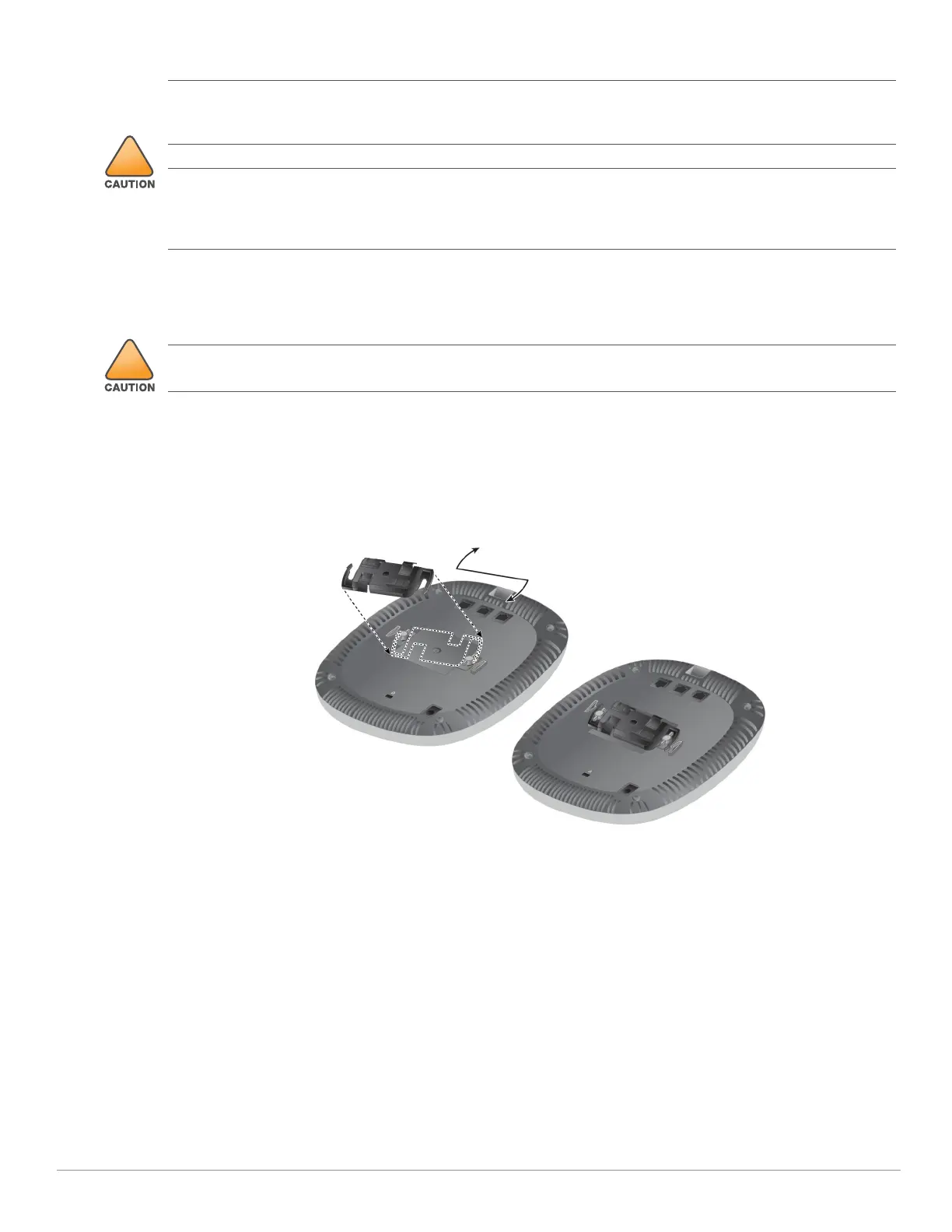

Figure 7 Attaching the Ceiling Rail Adapter
4. If necessary, connect the console cable to the console port on the back of the access point.
5. Hold the access point next to the ceiling tile rail with the ceiling tile rail mounting slots at approximately a 30-
degree angle to the ceiling tile rail. See Figure 8. Make sure that any cable slack is above the ceiling tile.
6. Pushing towards the ceiling tile, rotate the access point clockwise until the device clicks into place on the
ceiling tile rail.
All Aruba access points should be professionally installed by an Aruba-Certified Mobility Professional (ACMP).
The installer is responsible for ensuring that grounding is available and meets applicable national and electrical
codes. Failure to properly install this product may result in physical injury and/or damage to property.
Tous les points d'accès Aruba doivent impérativement être installés par un professionnel agréé. Ce dernier doit
s'assurer que l'appareil est mis à la terre et que le circuit de mise à la terre est conforme aux codes électriques
nationaux en vigueur. Le fait de ne pas installer correctement ce produit peut entraîner des blessures
corporelles et / ou des dommages matériels.
The installer is responsible for securing the access point onto the ceiling tile rail in accordance with the steps
below. Failure to properly install this product may result in physical injury and/or damage to property.
