Aruba AP22 User Manual

2 Aruba Instant On AP22 Access Point | Installation Guide
LEDs
The AP22 access point has two LEDs that indicate the system and radio status of the device.

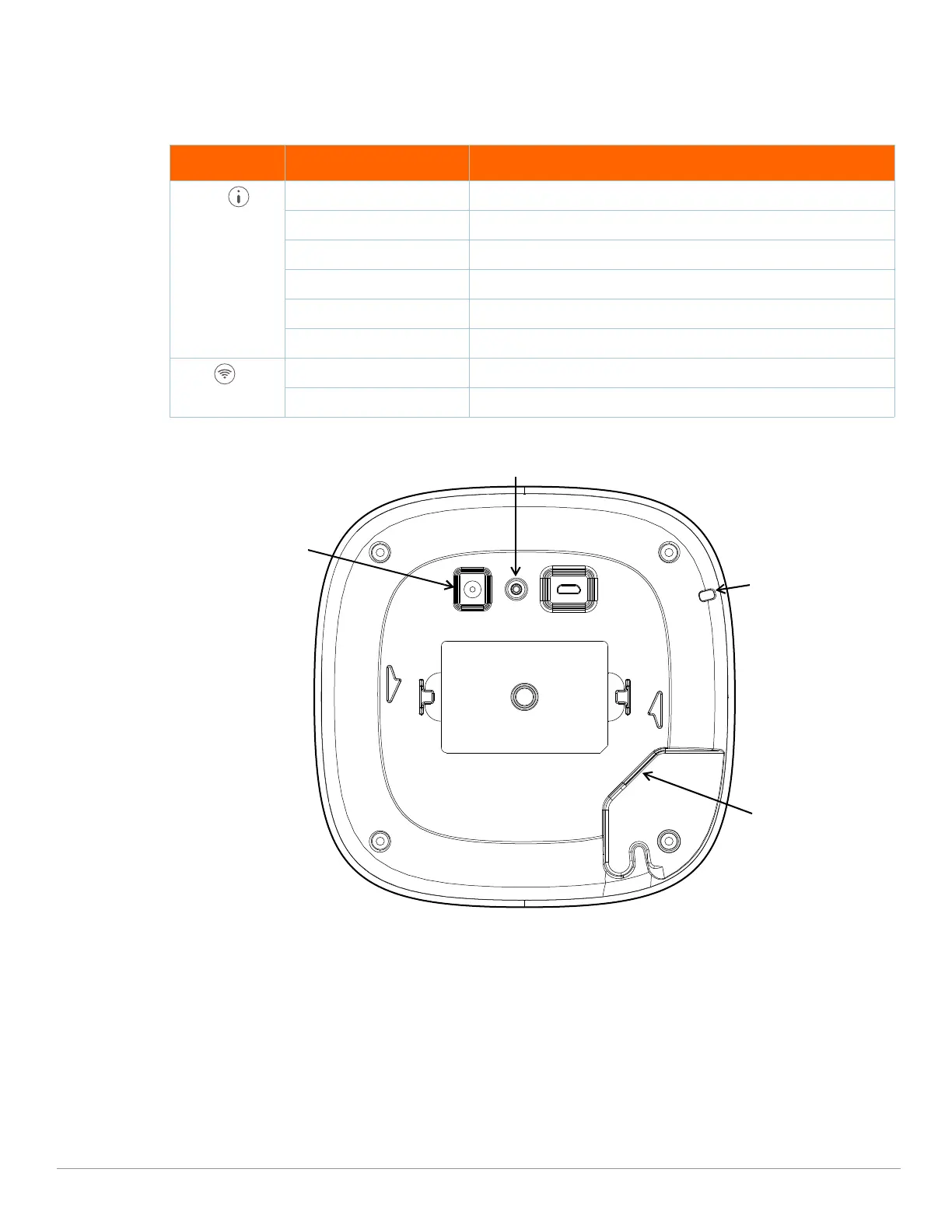

Figure 2 AP22 Rear View
Ethernet Port
The AP22 is equipped with a 10/100/1000Base-T auto-sensing MDI/MDX Ethernet port (E0). This E0 port supports
wired-network connectivity, and Power over Ethernet (PoE) from IEEE 802.3af and 802.3at compliant PoE power
sources, such as a PoE midspan injector or a network switch.
Kensington Lock Slot
The AP22 access point is equipped with a Kensington lock slot for additional security.
Table 1 AP22 Access Point LEDs Status
LED Color/State Meaning
System No Lights Device has no power
Blinking
Green Device is starting
Alternating Green/Amber Device is ready for setup
Solid Green Device is ready
Solid Amber Device has detected a problem
Solid Red Device has an issue- immediate action required
Radio No Lights Wi-Fi is not ready, wireless clients cannot connect
Solid Green Wi-Fi is ready, wireless clients can connect
E0
Reset Button
DC Power Socket
Kensington Lock Slot

Aruba AP22 Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Frequency Bands	2.4 GHz, 5 GHz
Maximum Data Rate	1.775 Gbps
Antenna Type	Integrated
Ethernet Ports	1 x 1 Gbps
Power over Ethernet	802.3af
Mounting Options	Ceiling, Wall
Dimensions	160 mm x 160 mm x 37 mm
Interfaces/Ports	1 x RJ-45
PoE Power Consumption	12.3 W
Input Voltage	48 VDC (802.3af/at)
Operating Temperature	0°C to 40°C
Wireless Speed	1775 Mbps
MIMO Technology	2x2
