Access Point Installation
The AP12 access point ships with the following two mount brackets. You can choose one of them to install the
AP:
A ceiling mount bracket (see Figure 4) to attach the AP to a 9/16” or 15/16” flat T-bar drop-tile ceiling.
A wall/ceiling mount bracket (see Figure 8)to attach the AP to a solid, flat surface, such as a wall or ceiling.
The following sections provide instructions on how to use these mount brackets.
Using the Ceiling Mount Bracket

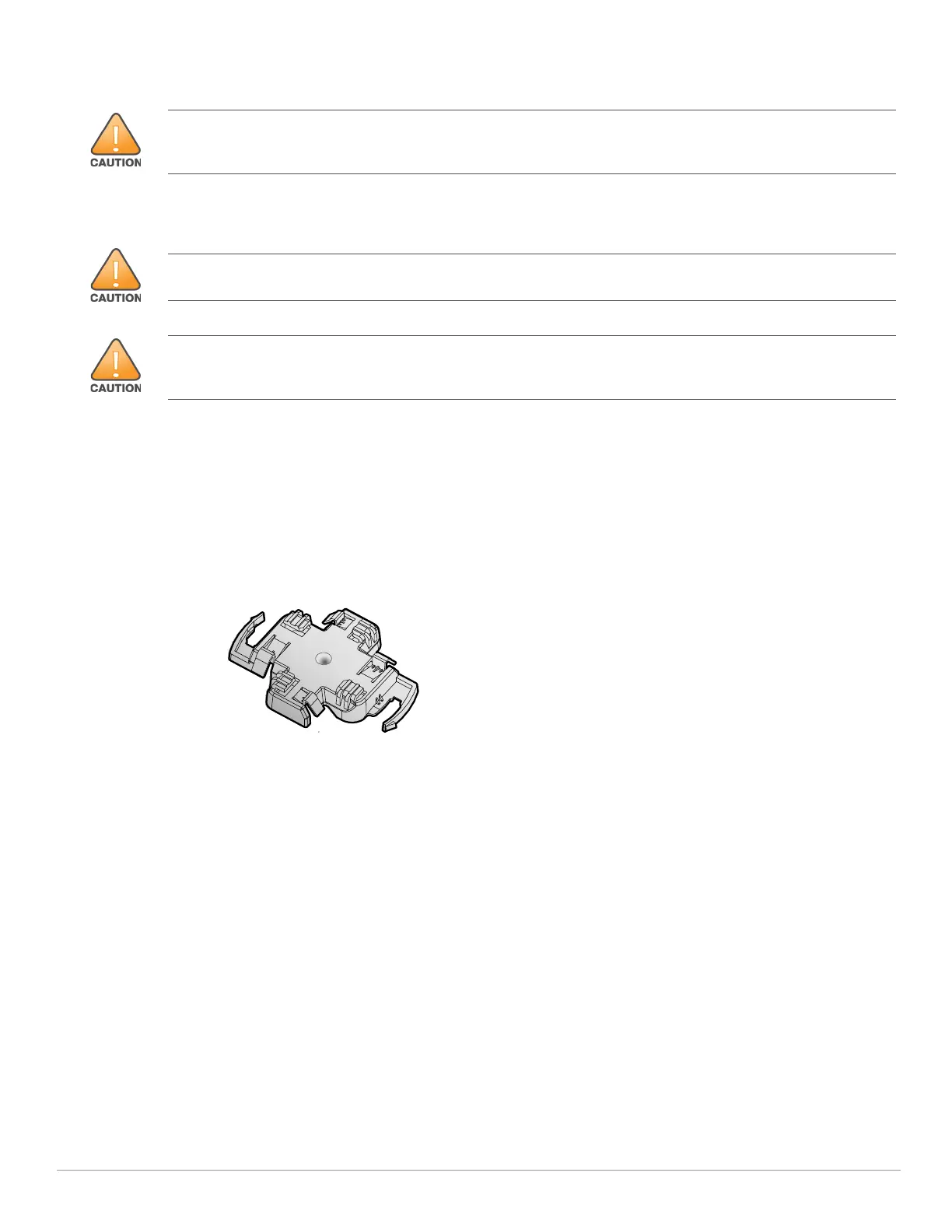

Figure 4 Ceiling Mount Bracket
1. Pull the necessary cables through a prepared hole in the ceiling tile near where the access point will be
placed.
2. Place the mount bracket against the back of the access point with the mount bracket at an angle of
approximately 30 degrees to the tabs (see Figure 5).
3. Twist the mount bracket clockwise until it snaps into place in the tabs (see Figure 5).
Portable RF communications equipment (including peripherals such as antenna cables and external antennas)
should be used no closer than 30 cm (12 inches) to any part of the access point. Otherwise, degradation of the
performance of this equipment could result.
The installer is responsible for securing the access point onto the ceiling tile rail in accordance with the steps
below. Failure to properly install this product may result in physical injury and/or damage to property.
Use of accessories, transducers and cables other than those specified or provided by the manufacturer of this
equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this
equipment and result in improper operation.
