ASA Electronics BTWP2 - Wiring

6
WIRING

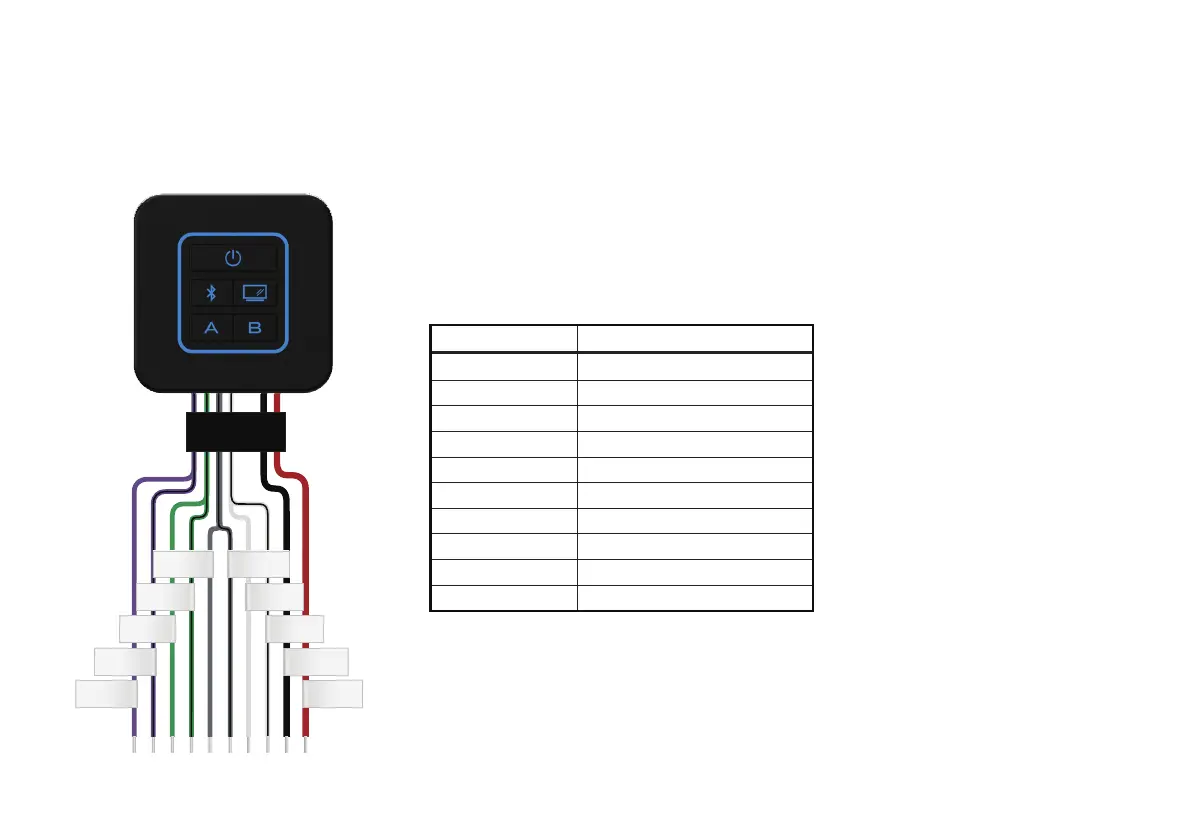

The wiring diagram depicts all the wiring connections required for proper operation of the unit�
WARNING: Wiring harness comes with stripped and tinned leads to
aid in the installation process� Any unused speaker wires must have
their exposed ends cut o or insulated individually�
RIGHT(B)
SPEAKER (-)
RIGHT(B)
SPEAKER (+)
RIGHT(A)
SPEAKER (-)
RIGHT(A)
SPEAKER (+)
+12V CD
SWITCHED
LEFT (A)
SPEAKER (-)
LEFT (B)
SPEAKER (-)
LEFT (B)
SPEAKER (+)
GROUND
LEFT (A)
SPEAKER (+)
8 7 6 5
4 3
2 1
WIRE COLOR DESCRIPTION
LEFT (A) SPEAKER(-)
LEFT (A) SPEAKER(+)
RIGHT (A) SPEAKER(-)
RIGHT (A) SPEAKER(+)
LEFT (B) SPEAKER(-)
LEFT (B) SPEAKER(+)
RIGHT (B) SPEAKER(-)
RIGHT (B) SPEAKER(+)
+12VDC SWITCHED
GROUND
WHITE/BLACK
WHITE
GRAY/BLACK
GRAY
GREEN/BLACK
GREEN
VIOLET/BLACK
VIOLET
RED
BLACK
