Asante FriendlyNet Installation Guide And User's Manual

Page 2-3
Installation
2
For a 10-BASE-T network, connect a cable with RJ-45 con-
nectors on both ends to the Network Media Module and
the 10BASE-T hub. See Figure 2-3 .

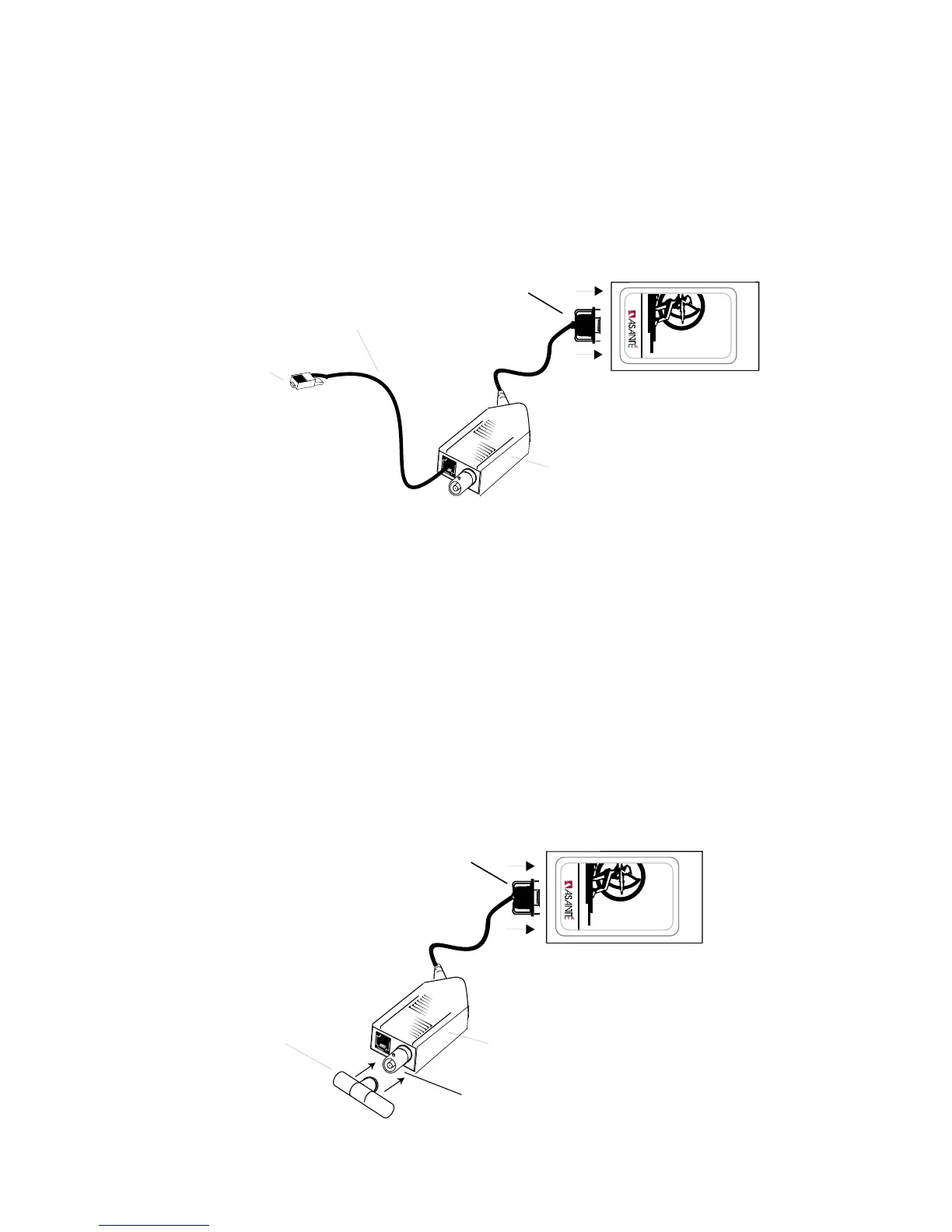

Figure 2-3 Connecting the FriendlyNet PC Card to a 10BASE-T network
3 For a thin coax network, connect the provided BNC T-
connector to the Network Media Module’s BNC connec-
tor. See Figure 2-4.
▲ If the PowerBook computer is the last node in the net-
work, terminate one end of the T-connector with a 50
ohm terminator. Connect the other end of the T-con-
nector to your network.
▲ If the PowerBook computer is not the last node in the
network, connect both ends of the T-connector to
other nodes in the network.
Figure 2-4 Connecting the FriendlyNet PC Card to a thin coax network
15-pin connector
cable
12345678
Insert in PC Slot
FriendlyNet
PC Card
▲
●
● ● ● ●
Ethernet
10Base-T &
Thin Coax
Network Media
Module
Cable with RJ-45
connectors
Connect RJ-45
cable to
10BASE-T hub
➋
❶
Insert in PC Slot
15-pin connector
cable
FriendlyNet
PC Card
▲
●
● ● ● ●
Ethernet
10Base-T &
Thin Coax
Network Media
Module
Network Media Module's
BNC Connector
BNC T-Connector
❸
