Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway (software version 5.0.x)
31
6 Connect the coaxial cables to the MCX connectors on the base station.
Back view while lying down
MCX connectors
7 Mount the base station (3), see 5.2.9 Mount the Base Station on page 33.

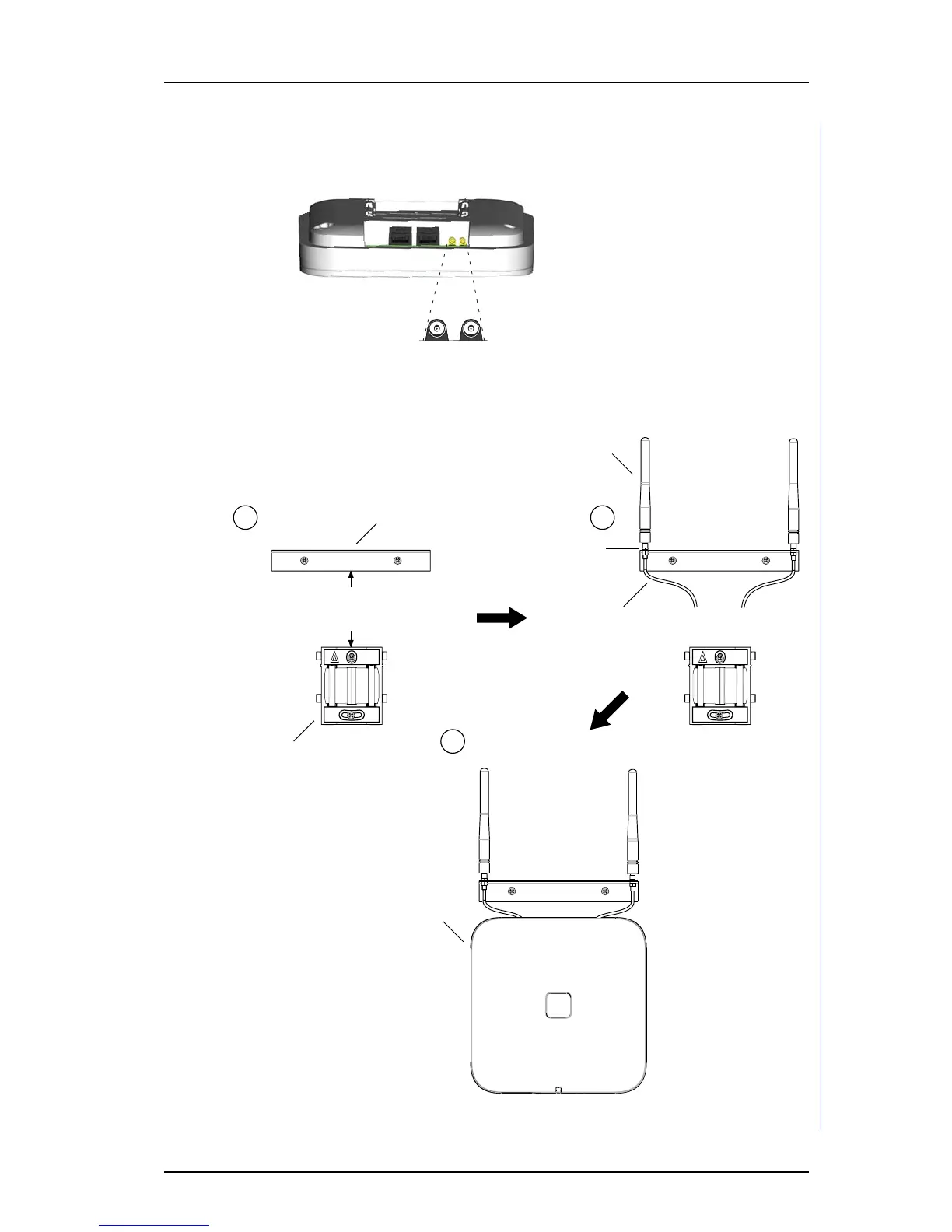

Figure 11. Connect external antennas.
TOP
Min 74 mm
Max 250 mm
1
3
coaxial cable
lock nut
antenna
base station
antenna bracket
mounting bracket
2
TOP
