Ascon Tecnologic - K32 Line - ENGINEERING MANUAL - PAG. 3

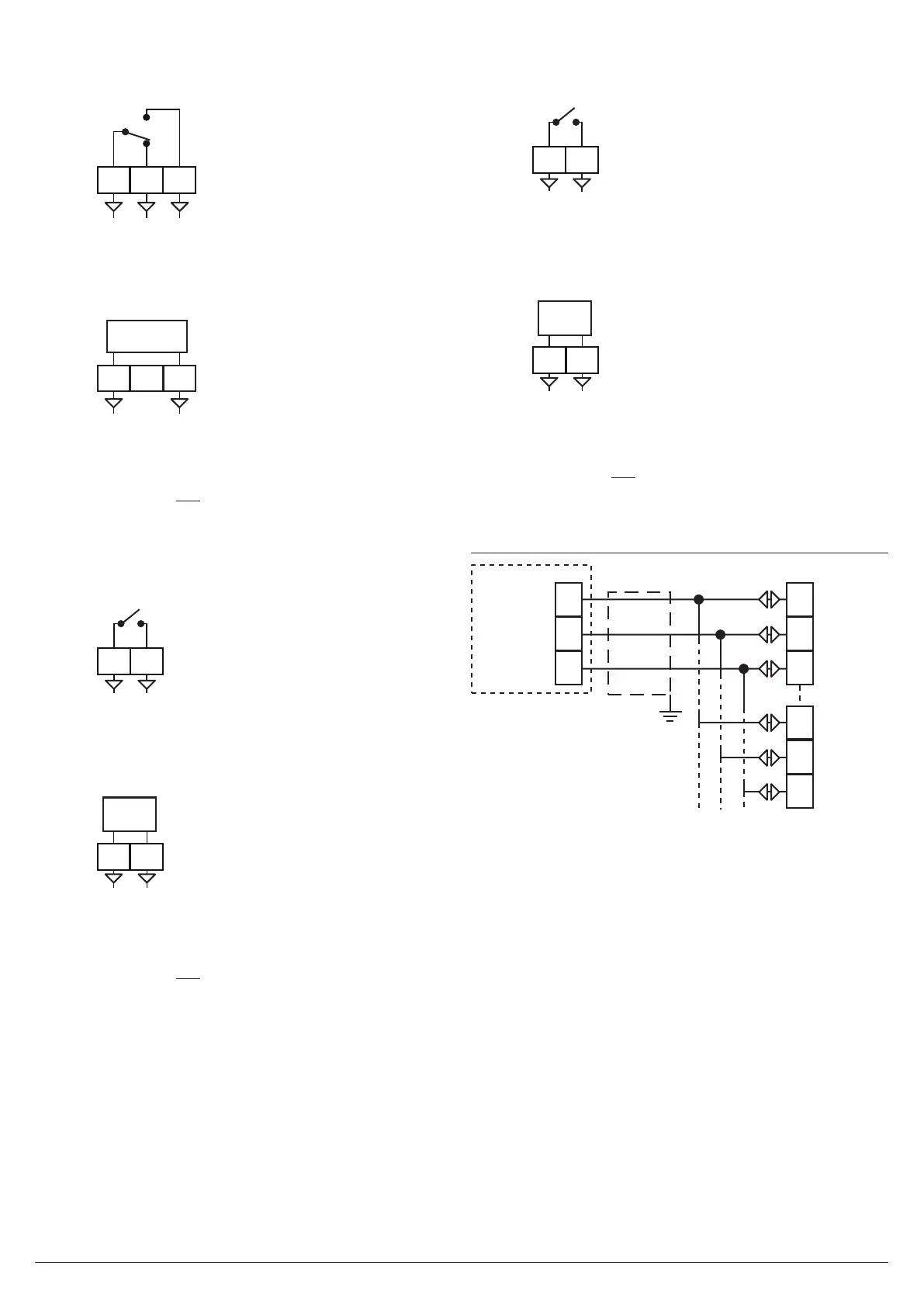

2.3.2 Output 2 (OUT2)
Relay Output
NONCC
21
2019
Contact rating: •8A/250Vcosj =1
 •4A/250Vcosj =0.4
Operation: 1 x 10
5
SSR Output
SSR
21
2019
+-
Logic level 0: Vout < 0.5 VDC;
Logic level 1: •12V±20%@1mA;
 •10V±20%@20mA.
Note: This output is not isolated. A double or reinforced
isolation between instrument output and power supply
must be assured by the external solid state relay.
2.3.3 Output 3 (OP3)
Relay Output
1817
NOC
Contact rating: •5A/250Vcosj = 1;
 •1A/250Vcosj = 0.4.
Operation: 1 x 10
5
.
SSR Output
SSR
18
17
-+
Logic level 0: Vout < 0.5 VDC;
Logic level 1: •12V±20%,15mAmax.;
 •10V±20%@20mA.
Note: This output is not isolated. A double or reinforced
isolation between instrument output and power supply
must be assured by the external solid state relay.
2.3.4 Output 4 (OP4)
Relay Output
1615
NOC
Contact rating: •5A/250Vcosj = 1;
 •1A/250Vcosj = 0.4.
Operation: 1 x 10
5
.
SSR Output
SSR
16
15
-+
Logic level 0: Vout < 0.5 VDC;
Logic level 1: •12V±20%@1mA;
 •10V±20%@20mA.
Note: This output is not isolated. A double or reinforced
isolation between instrument output and power supply
must be assured by the external solid state relay.
2.4 Serial Interface
RS-485
B/B’
A/A’
C/C’
B/B’
A/A’
GND
8
10
9
B/B’
A/A’
GND
8
10
9
Master
K31 (Slave)
Interface type: - Isolated (50 V) RS-485;
- Not isolated TTL;
Voltage levels: According to EIA standard;
Protocol type: MODBUS RTU;
Byte format: 8 bit with no parity;
Stop bit: 1 (one);
Baud rate: Programmable between 1200... 38400 baud;
Address: Programmable between 1... 255.
Notes: 1. RS-485 interface allows to connect up to 30
devices with one remote master unit.
2. The cable length must not exceed 1.5 km at
9600 baud.
3. A description of the signal sense of the voltage
appearing across the interconnection cable as
defined by EIA for RS-485 follows:
• The “A” terminal of the generator shall be
negative with respect to the “B” terminal for a
binary 1 (MARK or OFF) state.
• The “A” terminal of the generator shall be
positive with respect to the “B” terminal for a
binary 0 (SPACE or ON).
