Ascon Tecnologic - K49 Line - ENGINEERING MANUAL -Vr. 09 - PAG. 3
2.3 Outputs
Safety notes:
• To avoid electrical shocks, connect power line at last.
• For supply connections use No. 16 AWG or larger wires
rated for at last 75°C.
• Use copper conductors only.
• SSR outputs are not isolated. A reinforced isolation must
be assured by the external solid state relays.

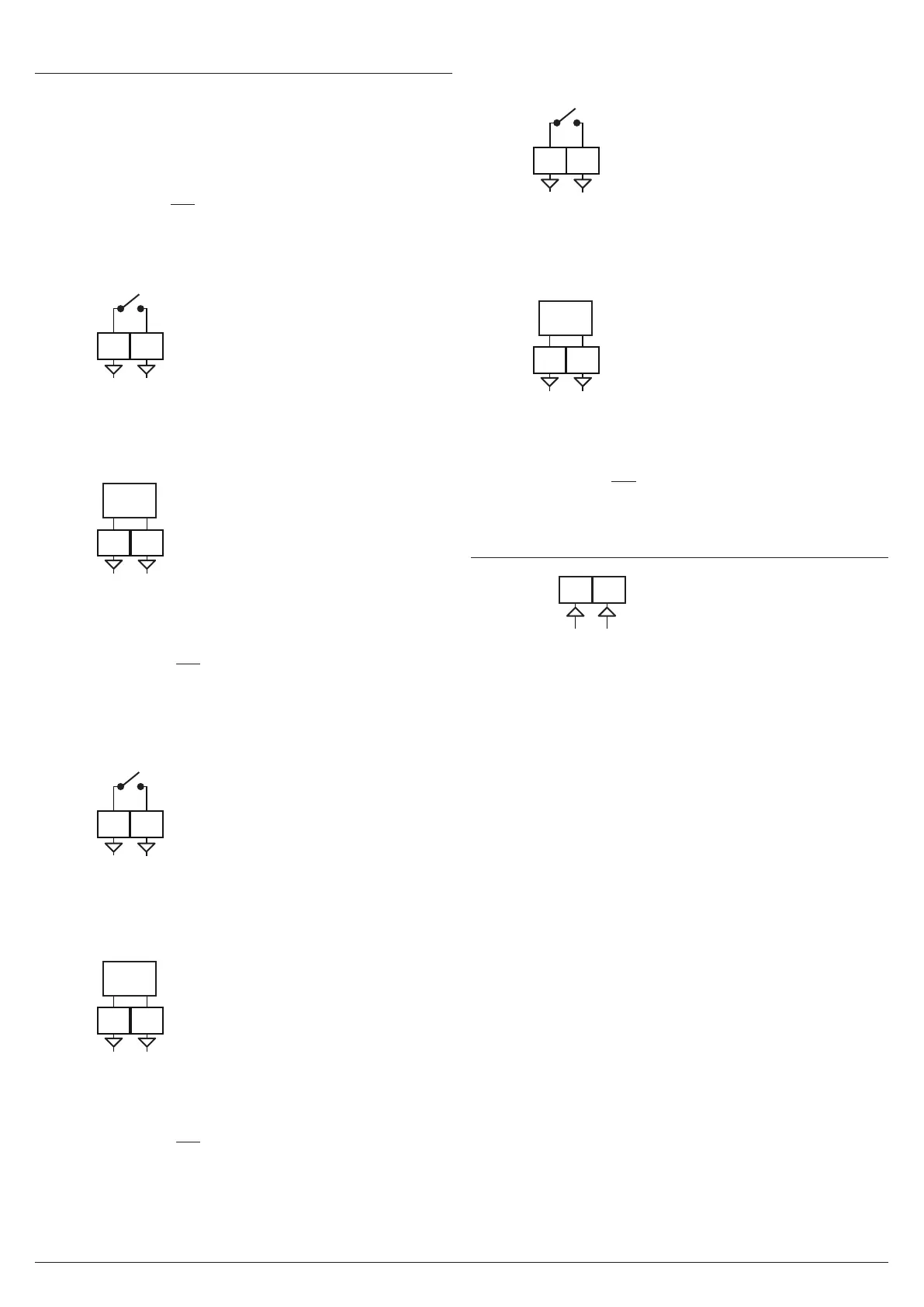

2.3.1 Output 1 (OUT1)
Relay Output
1211
NOC
Contact rating: •8A/250Vcosj =1;
 •3A/250Vcosj =0.4.
Operation: 1 x 10
5
.
SSR Output
SSR
12
11
-+
Logic level 0: Vout < 0.5 VDC;
Logic level 1: •12V±20%@1mA;
 •10V±20%@20mA.
Note: This output is not isolated. A double or reinforced
isolation between instrument output and power supply
must be assured by the external solid state relay.
2.3.2 Output 2 (OUT2)
Relay Output
109
NOC
Contact rating: •8A/250Vcosj =1;
 •3A/250Vcosj =0.4.
Operation: 1 x 10
5
.
SSR Output
SSR
10
9
-+
Logic level 0: Vout < 0.5 VDC;
Logic level 1: •12V±20%@1mA;
 •10V±20%@20mA.
Note: This output is not isolated. A double or reinforced
isolation between instrument output and power supply
must be assured by the external solid state relay.
2.3.3 Output 3 (OP3)
Relay Output
65
NOC
Contact rating: •5A/250Vcosj = 1;
 •2A/250Vcosj = 0.4.
Operation: 1 x 10
5
.
SSR Output
SSR
6
5
-+
Logic level 0: Vout < 0.5 VDC;
Logic level 1: •12V±20%,15mAmax.;
 •10V±20%@20mA.
Note: This output is not isolated. A double or reinforced
isolation between instrument output and power supply
must be assured by the external solid state relay.
2.4 Power Supply
Power Supply
78
Supply Voltage: •24VAC/DC(±10%);
 •100...240VAC(±10%).
Current consumption: 5 W max..
Notes: 1. Before connecting the instrument to the power
line, make sure that line voltage is equal to the
voltage shown on the identification label;
2. To avoid electrical shock, connect power line at
the end of the wiring procedure;
3. For supply connections use No. 16 AWG or larger
wires rated for at last 75°C.
4. Use copper conductors only.
5. The polarity of the power supply has no importance;
6. The power supply input is NOT fuse protected.
Please, provide a T type 1A, 250 V fuse externally.
