25. Rub candlewax on the ends of the
shafts before loading them into the
nylon guides. Load the shafts and
locate the jack pin into the centre
hole in the shaft. If any of the shafts
are curved, to avoid them touching,
load them so that the curves are all
in the same direction.

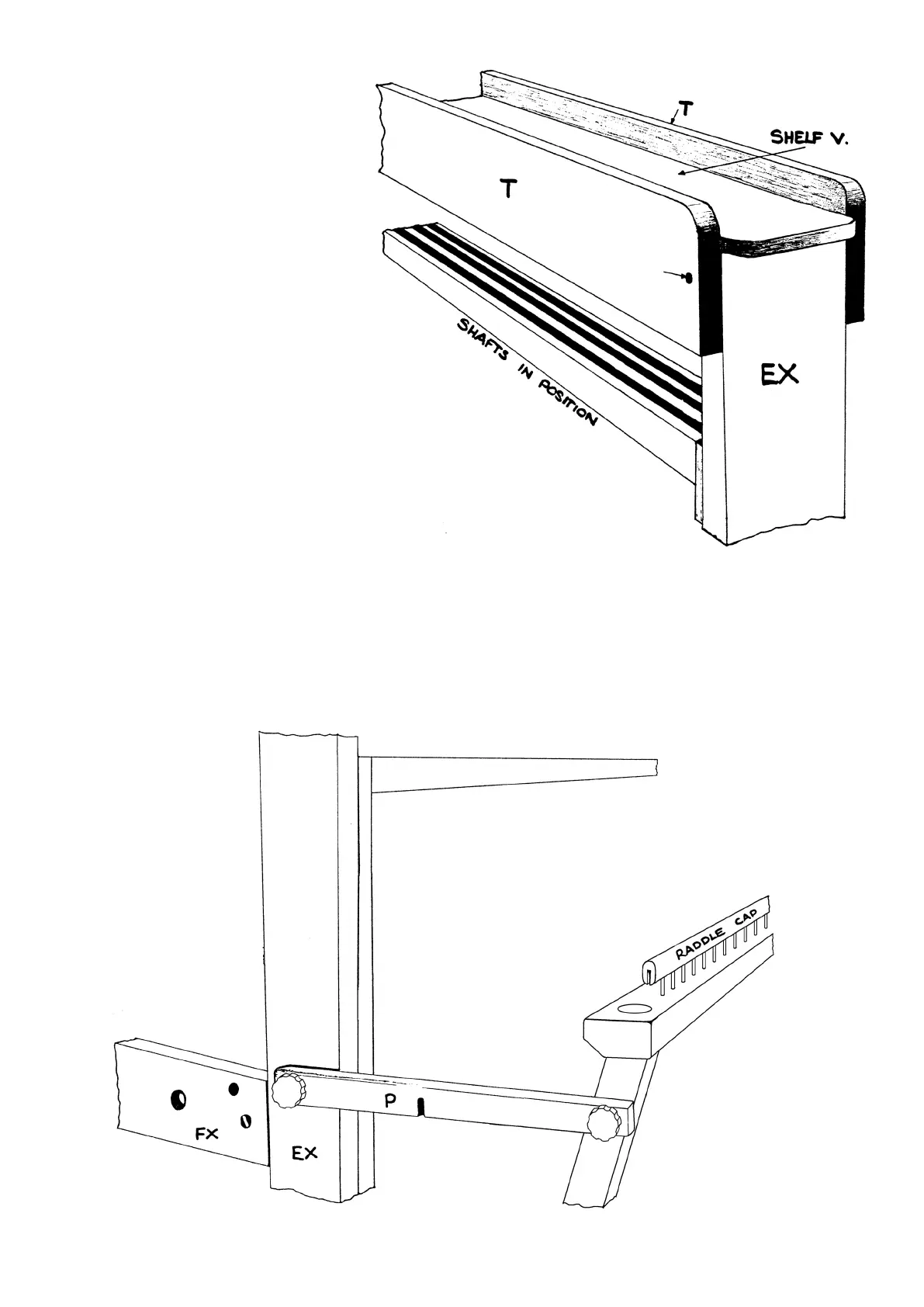

26. Attach the castle top rails T to the
castle sides E and EX with 8 x 1½
Screws. Locate the shelf V onto the
castle. It is easily removable for
access to the shafts.
27. Locate the front and back beams Y onto the tenons of uprights C, CX and D, DX. The beams are easily removable to allow
access to the shafts when warping.
NOTE: The back beam has a built in raddle with 10mm spacing. Fit the beam with the raddle pins facing up when warping,
otherwise fit it with the raddle facing down. Use the wooden cover strip to keep your warp in place.
